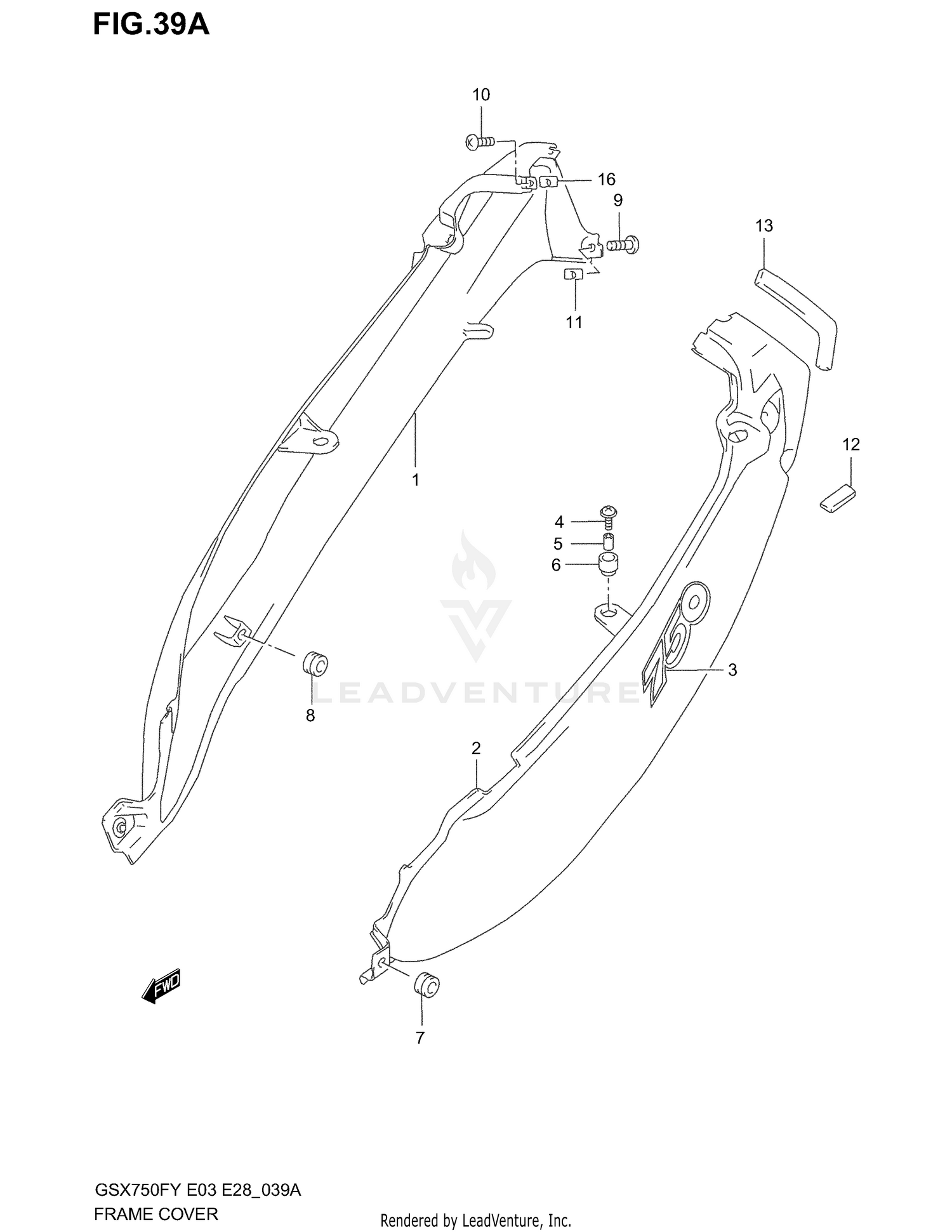

Frame Cover (model Y/k1) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FRAME RH (MAROON)
47110-08F50-22U
|
$190.29 | ||
|
Unavailable |
|||
|
#1
COVER, FRAME RH (GRAY)
47110-08F50-Y9E
|
$221.65 | ||
|
Unavailable |
|||
|
#1
COVER, FRAME RH (BLACK)
47110-08F50-YFX
|
$221.65 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER, FRAME RH (GOLD)
47110-08F50-YC7
|
$328.97 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, FRAME LH (MAROON)
47210-08F50-22U
|
$221.65 | ||
|
Unavailable |
|||
|
#2
COVER, FRAME LH (GRAY)
47210-08F50-Y9E
|
$328.97 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, FRAME LH (BLACK)
47210-08F50-YFX
|
$229.23 | ||
|
Unavailable |
|||
|
#2
COVER, FRAME LH (GOLD)
47210-08F50-YC7
|
$221.65 | ||
|
Unavailable |
|||
|
#3
EMBLEM
68131-08F50-BD2
|
$11.35 | ||
|
Unavailable |
|||
|
#3
EMBLEM
68131-08F50-BD3
|
$12.96 | ||
|
Unavailable |
|||
|
#3
EMBLEM
68131-08F50-EG1
|
$12.96 | ||
|
Unavailable |
|||
|
#3
EMBLEM
68131-08F50-EG3
|
$12.96 | ||
|
Unavailable |
|||
|
#4
SCREW, UPPER
09136-06105
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER
09180-06286
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
09320-10045
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09320-08028
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CUSHION
09320-08018
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW
03241-15163
Superseded by 03241-1516A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
03241-15123
Superseded by 03241-1512B
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
09148-05038
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION (10X30X2)
44894-24A00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION
47161-08F00
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
