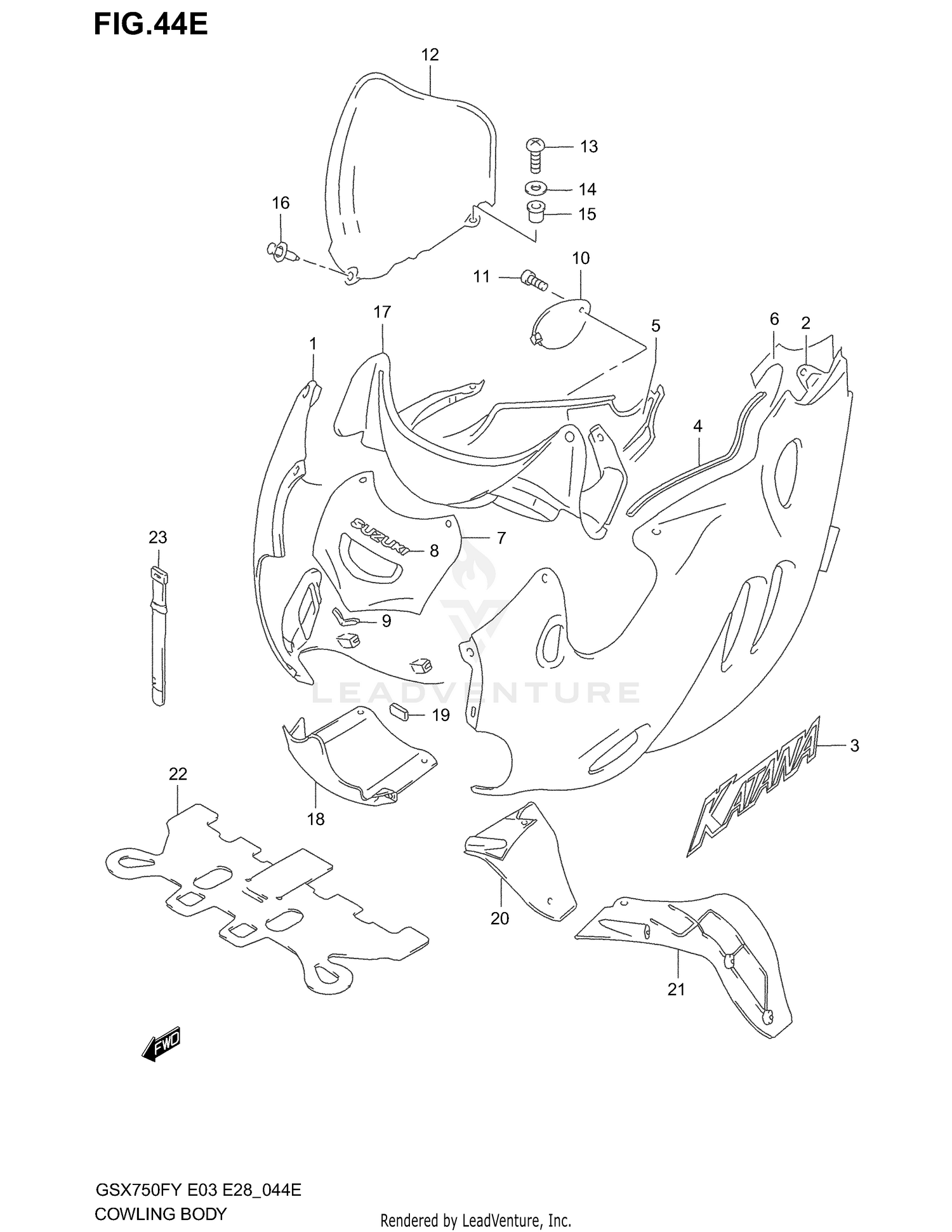

Cowling Body (model K3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COWL ASSY, SIDE RH (BLACK)
94403-08FQ0-33J
|
$572.84 | ||
|
Unavailable |
|||
|
#1
COWL ASSY, SIDE RH (GRAY)
94403-08FQ0-YU8
|
$534.84 | ||
|
Unavailable |
|||
|
#2
COWL ASSY, SIDE LH (BLACK)
94404-08FQ0-33J
|
$561.38 | ||
|
Unavailable |
|||
|
#2
COWL ASSY, SIDE LH (GRAY)
94404-08FQ0-YU8
|
$572.84 | ||
|
Unavailable |
|||
|
#2
COWL ASSY, SIDE LH (BLACK)
94404-08FR0-33J
|
$444.02 | ||
|
Unavailable |
|||
|
#2
COWL ASSY, SIDE LH (GRAY)
94404-08FR0-YU8
|
$534.84 | ||
|
Unavailable |
|||
|
#3
EMBLEM, KATANA
68681-08F60-LT7
|
$22.17 | ||
|
Unavailable |
|||
|
#3
EMBLEM, KATANA
68681-08F60-LT8
|
$22.62 | ||
|
Unavailable |
|||
|
#4
MOLDING
94631-44110
|
$41.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIELD, SIDE RH
94439-08F00
|
$67.32 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIELD, SIDE LH
94449-08F00
|
$92.42 | ||
|
Available to order. Add to View Price |
|||
|
#7
PANEL,COWLING C
94410-08F00-33J
Superseded by 94411-08F00
|
$37.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
PANEL, CENTER UPPER (GRAY)
94410-08F00-YU8
|
$114.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
EMBLEM, SUZUKI (SILVER)
68185-05C10-YD8
|
$22.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
EMBLEM, SUKIKI (BLACK)
68185-05C10-33J
|
$14.05 | ||
|
Unavailable |
|||
|
#9
CUSHION, UPPER
94413-08F00
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
LID, OIL (BLACK)
94435-08F00-33J
|
$75.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
LID,OIL
94435-08F00-YU8
Superseded by 94435-08F00
|
$38.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
09139-06030
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#12
WIND SCREEN
94611-08F00
|
$303.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW (5X14)
09139-05025
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
08322-01053
Superseded by 08322-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
09159-05019
|
$8.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLIP (7.6X25.7,BLACK)
09409-08308-5ES
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
PANEL, METER
94421-08F00
|
$169.98 | ||
|
Available to order. Add to View Price |
|||
|
#18
PANEL, CENTER LOWER (BLACK)
94412-08F00-33J
|
$85.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
PANEL, CENTER LOWER (GRAY)
94412-08F00-YU8
|
$73.17 | ||
|
Unavailable |
|||
|
#19
CUSHION, UPPER
94414-08F00
Superseded by 94413-08F00
|
$5.02 | ||
|
Unavailable |
|||
|
#20
PANEL, INNER RH
94461-08F10
|
$86.03 | ||
|
Available to order. Add to View Price |
|||
|
#21
PANEL, INNER LH
94462-08F10
|
$109.66 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, AIR GUIDE
94451-20C01
|
$101.86 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
CLAMP (L:235)
09407-25401
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
