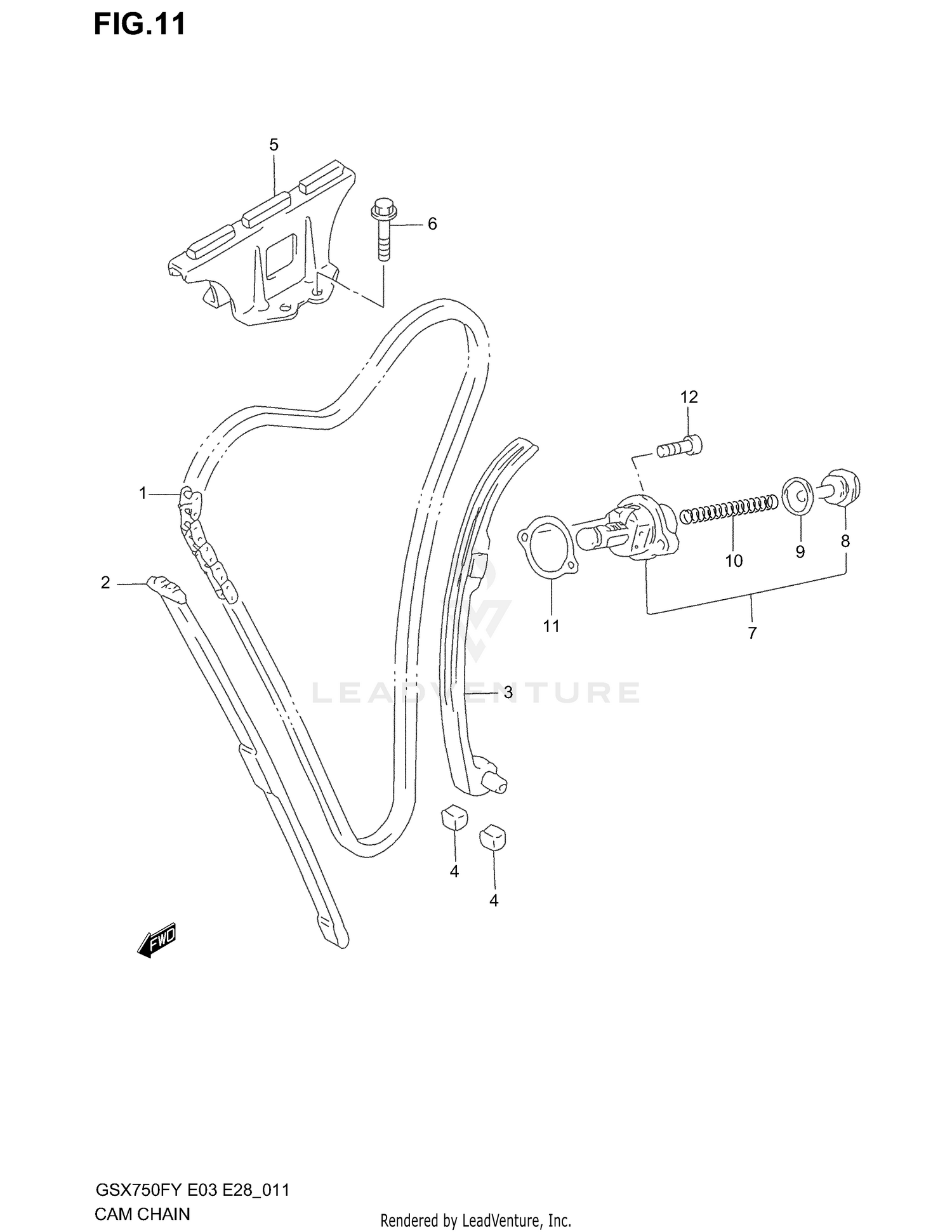

Cam Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAM SHAFT DRIVE
12760-26E00
|
$196.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, CAM CHAIN NO.1
12771-26E00
|
$48.32 | ||
|
Unavailable |
|||
|
#3
TENSIONER,CAM C
12810-26E00
Superseded by 12810-26E01
|
$85.84 | ||
|
Unavailable |
|||
|
#4
CUSHION
12814-34200
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, CAM CHAIN NO.2
12782-26E00
|
$34.98 | ||
|
Unavailable |
|||
|
#6
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
ADJUSTER ASSY, TENSIONER
12830-46E10
|
$176.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLUG
12834-27A00
|
$22.62 | ||
|
Unavailable |
|||
|
#9
GASKET
12832-27A00
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
12833-46E10
|
$7.68 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, ADJUSTER
12837-27A10
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
07130-06253
Superseded by 07130-0625B
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
