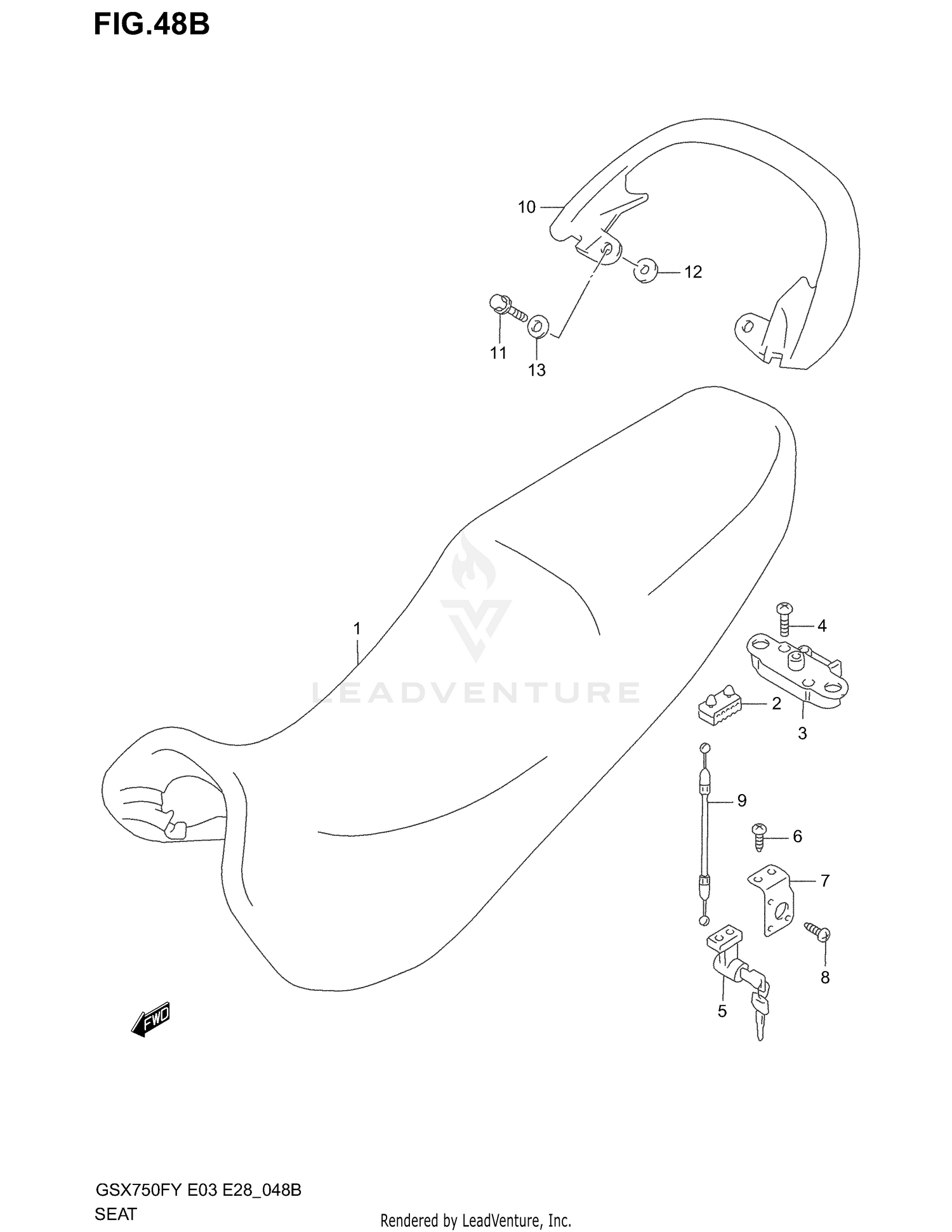

Seat (model K3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY
45100-08F10-LN6
Superseded by 45100-08F12-LN6
|
$442.10 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION
45149-31300
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET, SEAT SUPPORT
45220-20A01
Superseded by 45220-47H00
|
$155.44 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
02122-06303
Superseded by 02122-0630B
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
LOCK SET, SEAT
95700-31840
Superseded by 95700-31841
|
$88.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01547-05103
Superseded by 01547-0510B
|
$3.23 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, SEAT LOCK
45289-03F10
|
$14.27 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
03141-14123
Superseded by 03141-1412B
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE, SEAT LOCK
45280-15500
|
$13.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
HANDLE,PILLION
46211-03F11-33J
Superseded by 46211-03F11-13L
|
$233.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
HANDLE, PILLION RIDER (GRAY)
46211-03F11-YU8
|
$305.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01551-08303
Superseded by 01551-0830A
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION (17X24X1.5)
46212-03F10
|
$6.65 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER (8.5X24X2.3)
09160-08501
|
$2.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
