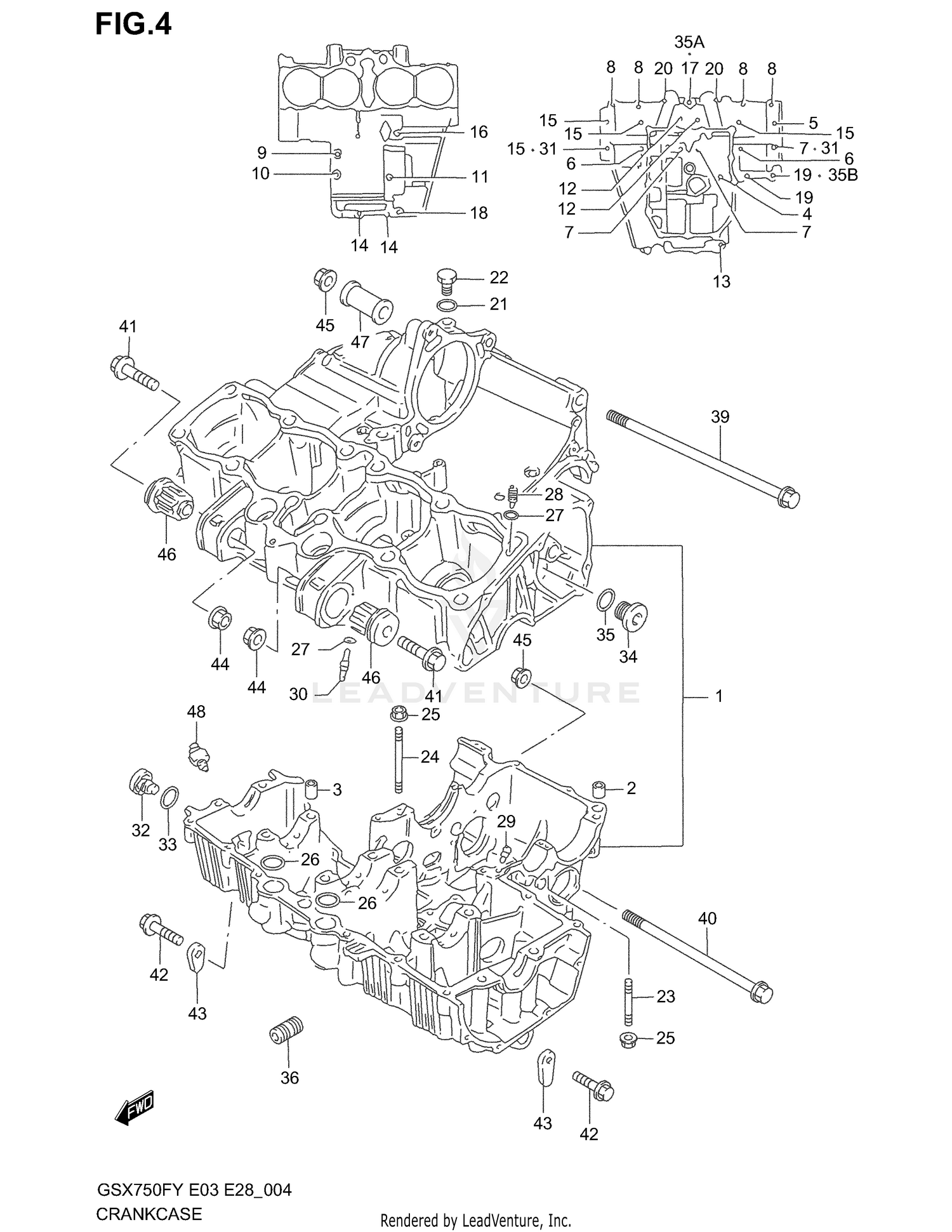

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
11301-19850
Superseded by 11301-19851
|
$1,358.71 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
11301-19890
Superseded by 11301-19893
|
$1,999.75 | ||
|
Unavailable |
|||
|
#2
PIN
09206-13004
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
09206-11017
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X105)
09103-06163
|
$2.09 | ||
|
Unavailable |
|||
|
#5
BOLT (8X105)
09103-08097
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (8X125)
09103-08182
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (8X115)
09103-08098
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01550-06353
Superseded by 01550-0635A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STATOR
07130-06403
Superseded by 07130-0640B
|
$4.33 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
07130-06503
Superseded by 07130-0650B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07130-06653
Superseded by 07130-0665B
|
$4.85 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT
07130-08653
Superseded by 07130-0865B
|
$5.74 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01550-08603
Superseded by 01550-0860A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01550-06407
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT (8X95)
09103-08066
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01550-06803
Superseded by 01550-0680B
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
01550-06503
Superseded by 01550-0650A
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01550-06603
Superseded by 01550-0660A
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01550-06553
Superseded by 01550-0655B
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
01550-06703
Superseded by 01550-0670B
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, HOLE PLUG
09168-12002
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
PLUG, HOLE
09247-12103
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT,STUD
01421-06408
Superseded by 01421-0640A
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT,STUD
01421-06608
Superseded by 01421-0660A
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
08316-10063
Superseded by 08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
O RING (D:2.5,ID:21)
09280-21008
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#27
O RING (D:1.2,ID:4)
09280-04004
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET, OIL GALY HEAD
09493-14002
|
$13.92 | ||
|
Available to order. Add to View Price |
|||
|
#29
JET, OIL GALY GEAR SHIFT
09493-24010
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#30
JET (#130)
09493-26007
|
$14.37 | ||
|
Unavailable |
|||
|
#31
GASKET
09168-08021
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUG
09248-16003
Superseded by 09248-16007
|
$10.83 | ||
|
Available to order. Add to View Price |
|||
|
#33
O RING (D:2.4,ID:16.8)
09280-17002
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#34
PLUG, OIL GALLERY
09248-14010
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#35
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#35A
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#35B
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
Unavailable |
|||
|
#36
UNION,OIL STAND
16591-06B00
Superseded by 16591-06B01
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING, THRUST RH (BROWN)
12228-43414
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, THRUST LH (RED)
12228-43411
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, THRUST LH (BLACK)
12228-43412
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, THRUST LH (BLUE)
12228-43413
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, THRUST LH (GREEN)
12228-43414
|
$11.37 | ||
|
Unavailable |
|||
|
#38
BEARING, THRUST LH (YELLOW)
12228-43415
|
$9.50 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING, THRUST LH (WHITE)
12228-43416
|
$9.27 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT (10X175)
09103-10151
|
$18.39 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT (10X130)
09103-10237
|
$10.54 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT
01550-10553
Superseded by 01550-1055B
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT (10X55)
09103-10298
|
$2.71 | ||
|
Unavailable |
|||
|
#43
NUT
09159-10020
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT
08316-10103
Superseded by 08316-1010B
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#45
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#46
BUSH,ENGINE MOU
11681-06B00
Superseded by 11681-06B01
|
$28.22 | ||
|
Available to order. Add to View Price |
|||
|
#47
SPACER (L:27)
11610-20C00
|
$17.41 | ||
|
Available to order. Add to View Price |
|||
|
#48
SWITCH ASSY,OIL PRESSURE
37820-33D00
Superseded by 37820-33D11
|
$27.59 | ||
|
Unavailable |
|||
|
#48
SWITCH ASSY,OIL PRESSURE
37820-33D10
Superseded by 37820-33D11
|
$27.59 | ||
|
Unavailable |
|||
