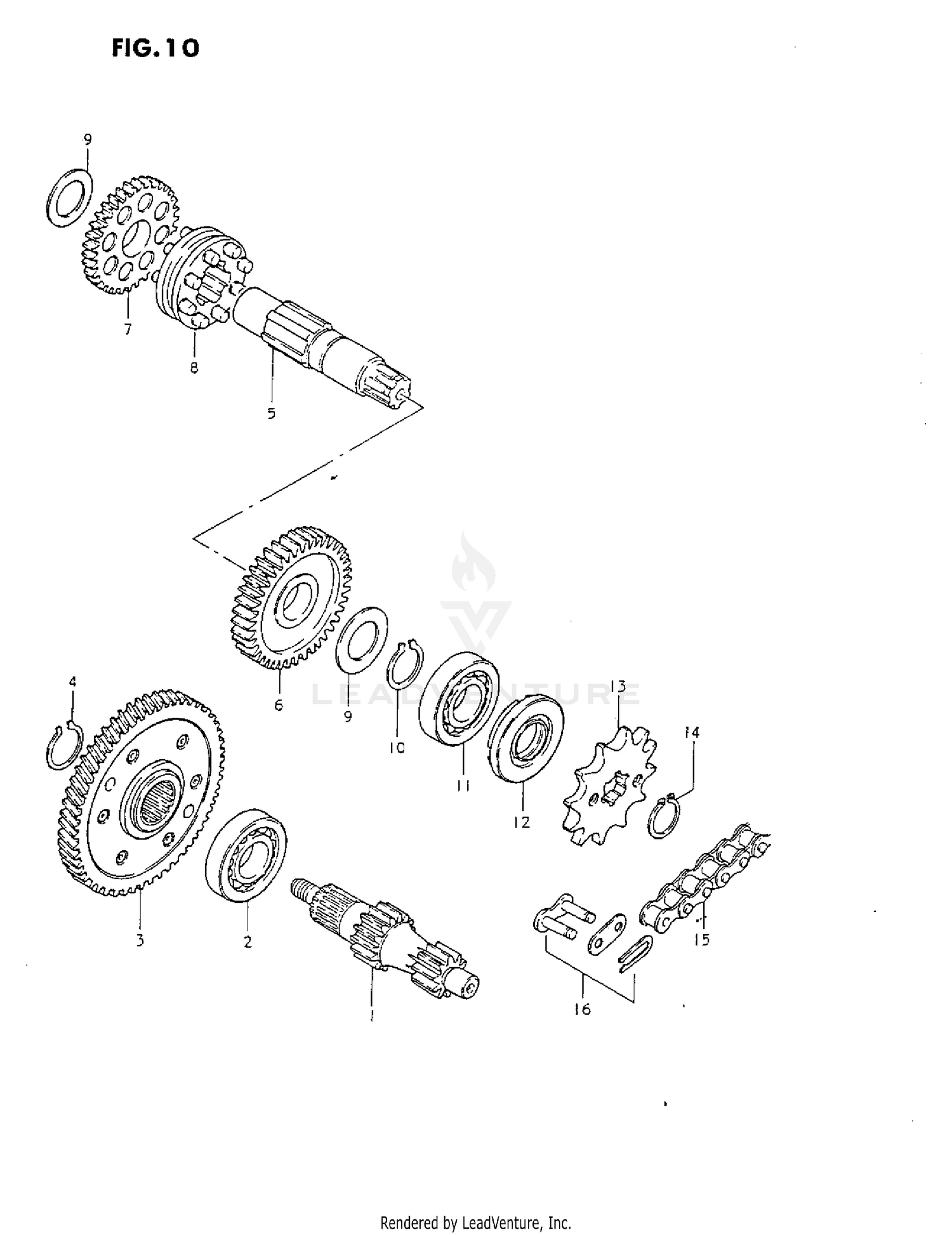

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COUNTERSHAFT (NT:10/13)
24121-04010
Superseded by 24121-04011
|
$129.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING (17X40X12)
09262-17023
|
$21.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
GEAR ASSY, PRIMARY DRIVEN
21200-04500
Superseded by 21200-04501
|
$154.32 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
09380-17003
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
DRIVESHAFT
24131-04001
|
$92.15 | ||
|
Unavailable |
|||
|
#6
GEAR, 1ST DRIVEN (NT:40)
24311-04001
Superseded by 24311-04002
|
$88.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
GEAR, 2ND DRIVEN (NT:29)
24321-04010
Superseded by 24321-04011
|
$90.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
WHEEL, SLIDING
24411-04003
|
$66.33 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, 2ND DRIVE GEAR
08211-17301
Superseded by 09181-17223
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
09380-17003
|
$2.67 | ||
|
Unavailable |
|||
|
#11
BEARING
09262-17023
|
$21.01 | ||
|
Unavailable |
|||
|
#12
OIL SEAL (17X29X7)
09283-17001
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL CRANKS
09283-17010
Superseded by 09283-17012
|
$9.17 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPROCKET, ENGINE (NT:13)
27511-19000
|
$19.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
08331-31166
Superseded by 08331-31169
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
CHAIN ASSY,DRIV
27600-46221
Superseded by 27600-46211
|
$24.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
CHAIN ASSY,DRIV
27600-13670
Superseded by 27600-01012-130
|
$28.90 | ||
|
Unavailable |
|||
|
#16
JOINT (RK)
27620-01023
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#16
JOINT (DID)
27620-01012
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
