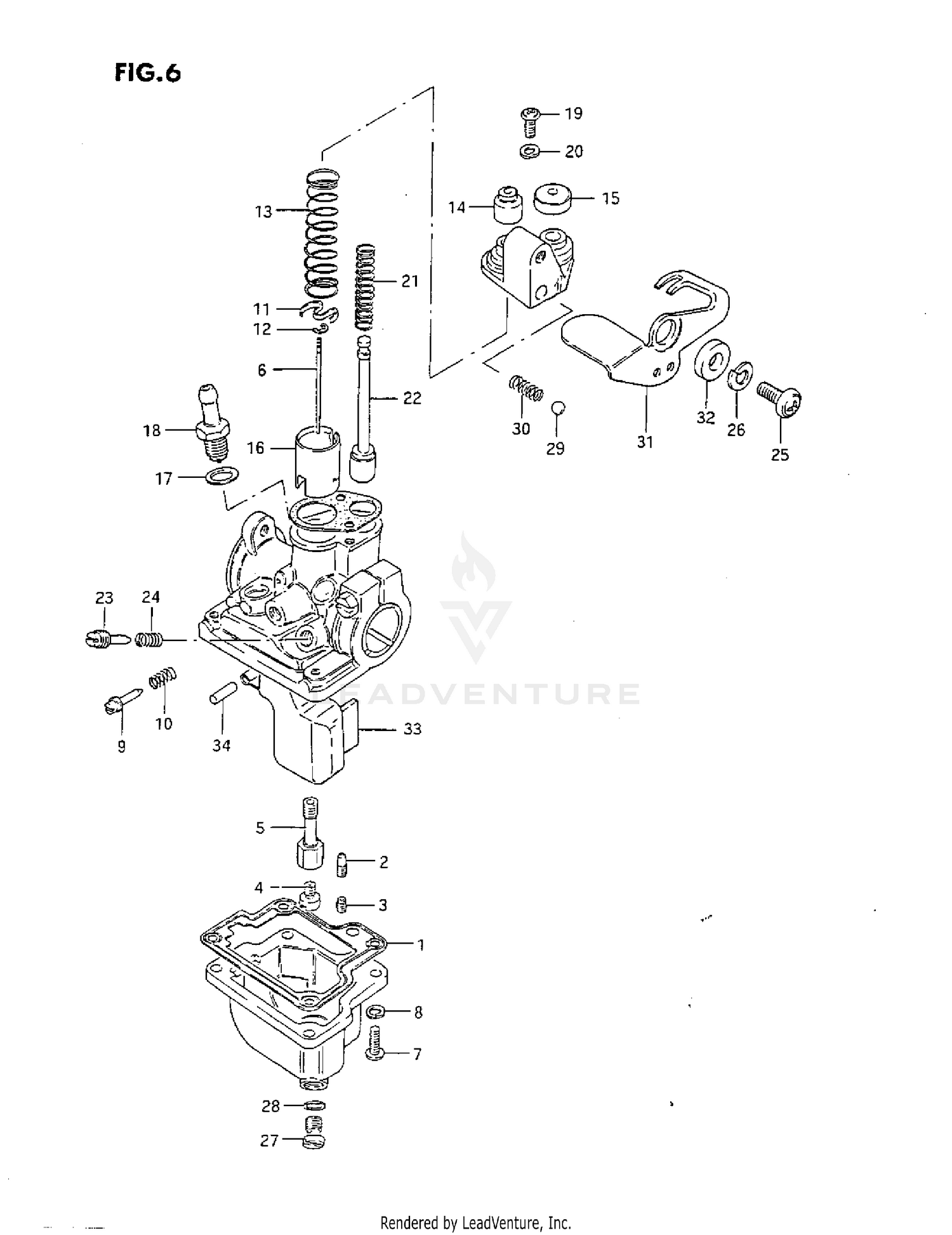

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY
13200-04410
|
$151.06 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET, FLOAT CHAMBER
13251-04110
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#2
JET, PILOT NO.1 (15)
09492-15002
Superseded by 09492-15015
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
JET, PILOT NO.2
09492-15009
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
JET, MAIN (52.5)
09491-52002
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
JET, NEEDLE (E-4)
09494-00210
|
$15.15 | ||
|
Unavailable |
|||
|
#6
NEEDLE, JET (3E3-3)
13383-19010
|
$21.23 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02112-04126
Superseded by 02112-0412A
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
LOCK WASHER
08321-21046
Superseded by 08321-0104A
|
$2.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, THROTTLE STOP
13267-01010
|
$8.50 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, STOP SCREW
13268-01010
|
$5.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
.SEAT,THROTTLE VALVE SPRING
13581-04010
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CLIP,NEEDLE
13394-12110
Superseded by 13394-40D00
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CLIP,NEEDLE
13394-40D00
|
$5.97 | ||
|
Unavailable |
|||
|
#13
SPRING, THROTTLE VALVE
13573-01010
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
.CAP
13681-04010
Superseded by 13681-04011
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, STARTER
13682-98010
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
VALVE, THROTTLE (CA:3.0)
13551-04110
|
$29.92 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, VALVE SEAT
13663-31010
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#18
VALVE, NEEDLE
13370-04110
|
$30.76 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
02112-04106
Superseded by 02112-0410A
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
LOCK WASHER
08321-21046
Superseded by 08321-0104A
|
$2.32 | ||
|
Unavailable |
|||
|
#21
SPRING, STARTER VALVE
13417-18630
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#22
VALVE, STARTER
13411-04410
|
$19.04 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PILOT AIR
13269-04010
|
$15.44 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING
13268-01010
|
$5.80 | ||
|
Unavailable |
|||
|
#25
SCREW
02112-06126
Superseded by 02112-0612A
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
LOCK WASHER
08321-21066
Superseded by 08321-0106A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
PLUG, DRAIN
13247-05010
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#28
GASKET, DRAIN PLUG
13249-05010
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#29
BALL
13435-33110
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING
13434-30650
|
$4.77 | ||
|
Available to order. Add to View Price |
|||
|
#31
LEVER, STARTER
13413-04410
|
$16.07 | ||
|
Available to order. Add to View Price |
|||
|
#32
RING
13424-30650
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#33
FLOAT
13252-04011
|
$30.76 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIN, FLOAT
13254-04010
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
