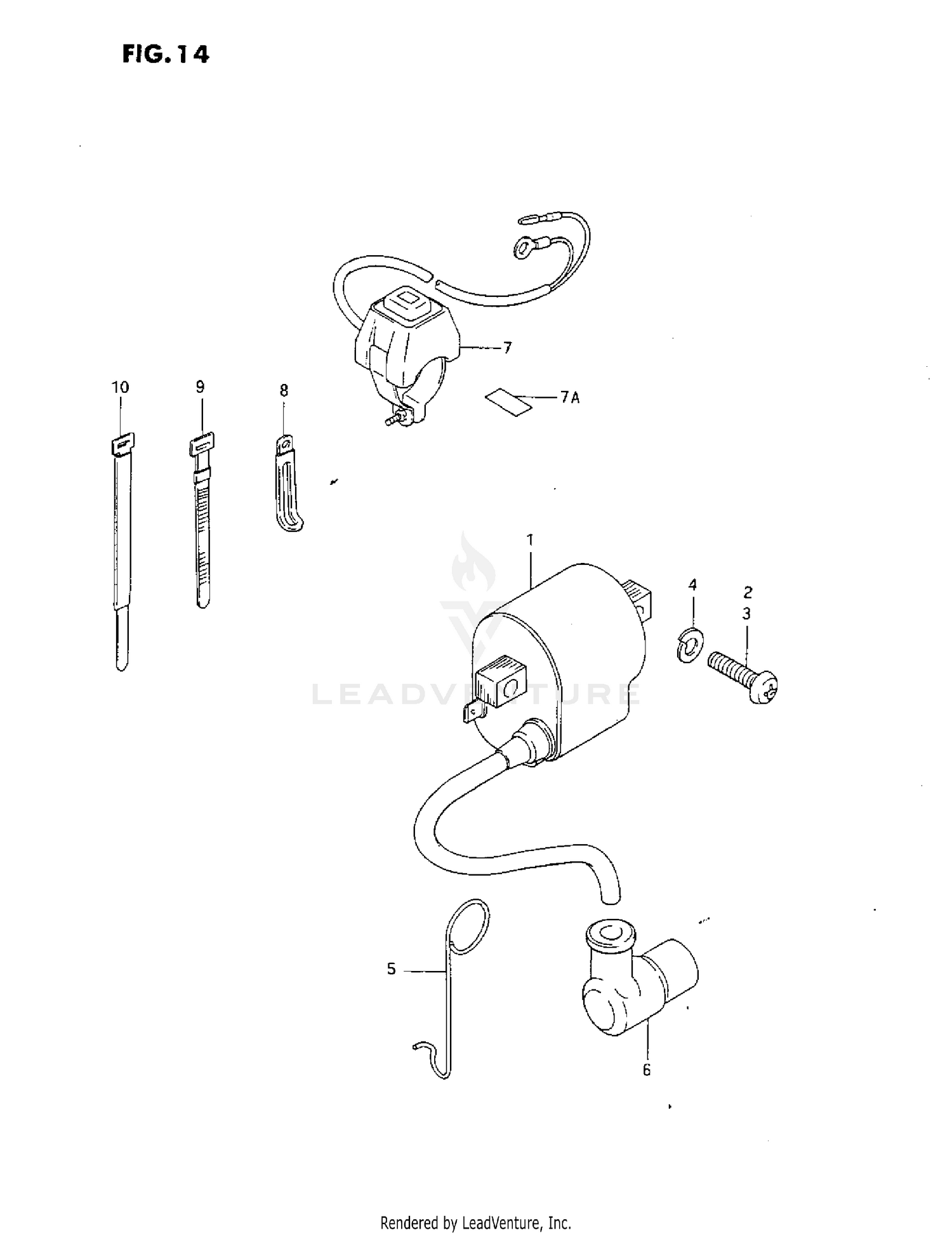

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNIT & COIL ASSY, IGNITION
33410-17310
Superseded by 33410-35340
|
$253.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW
02112-06207
|
$2.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
SCREW
02112-06257
|
$2.25 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
WASHER,LOCK
08321-21067
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
GUIDE, HIGH TENSION CORD
58626-04410
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, SPARK PLUG
33510-41111
Superseded by 33510-20A02
|
$31.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SWITCH ASSY, ENGINE STOP
37820-27C00
Superseded by 37820-14X50
|
$62.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
LABEL, ENGINE STOP
37238-46400
Superseded by 37238-46401
|
$2.41 | ||
|
Unavailable |
|||
|
#8
CLAMP
09404-06402
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND (L:120)
09407-12402
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP
09407-18301
Superseded by 09407-18302
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
