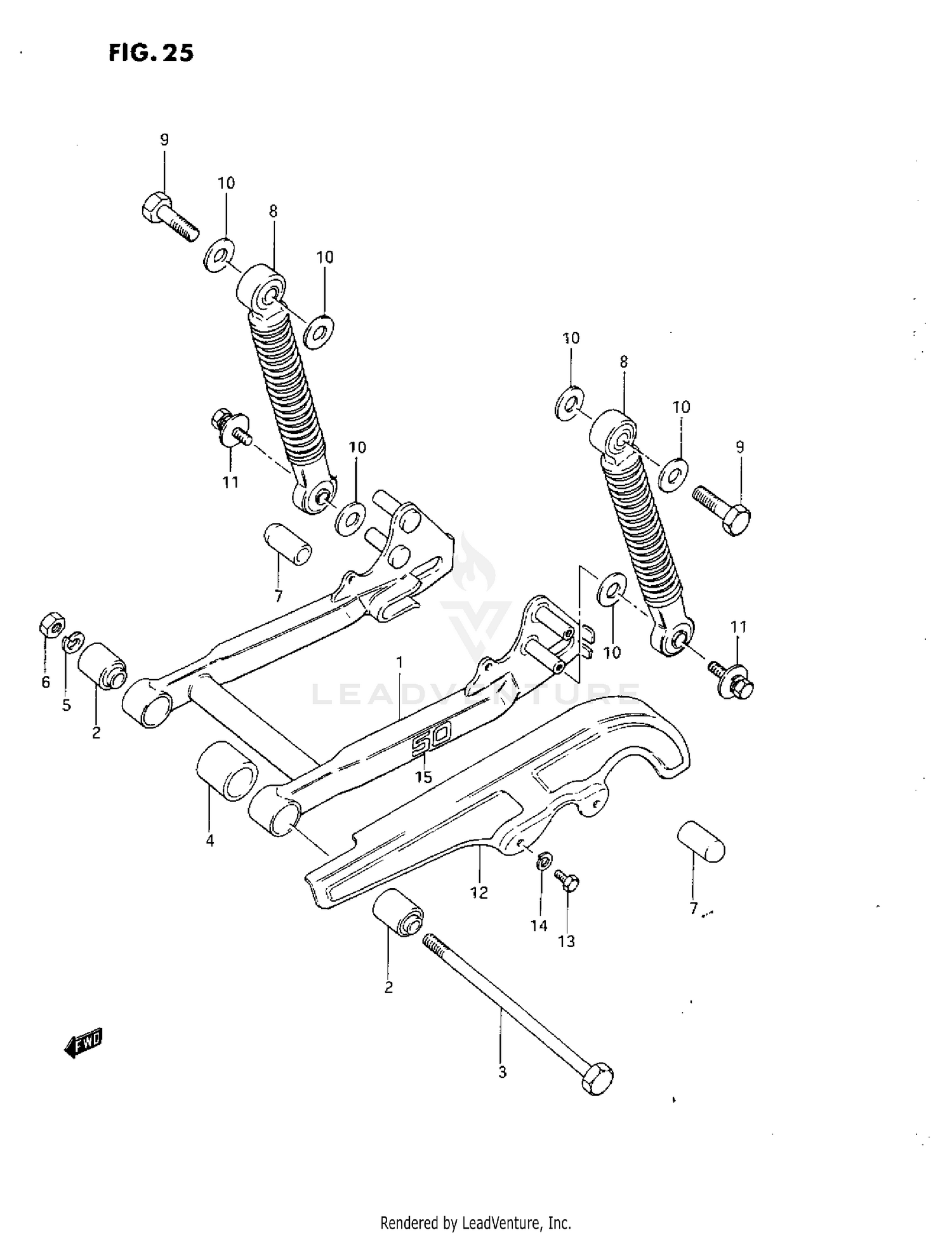

Rear Swinging Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM ASSY, REAR (PEARL)
61000-04420-126
|
$58.81 | ||
|
Unavailable |
|||
|
#1
SWINGING ARM ASSY, REAR (SILVER)
61000-04420-13L
|
$105.77 | ||
|
Unavailable |
|||
|
#2
BUSHING
09319-10014
|
$8.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHAFT, PIVOT
61211-04410
|
$16.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION R SWING
09320-20002
Superseded by 09320-20012
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#5
LOCK WASHER
08321-21107
Superseded by 08321-01107
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER,10.5X22X
09160-10051
Superseded by 09160-10143
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
NUT
08310-12108
Superseded by 08310-00107
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
08310-00103
Superseded by 08310-0010A
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CAP, BOSS
61223-04420
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
ABSORBER ASSY, REAR SHOCK
62100-04410
|
$70.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, HANDLE HOLDER
01107-10358
Superseded by 01500-1035B
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER
08322-21108
Superseded by 08322-01107
|
$2.35 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WASHER,10.5X22X
09160-10051
Superseded by 09160-10143
|
$2.95 | ||
|
Unavailable |
|||
|
#11
BOLT
09118-06055
|
$3.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
CASE, CHAIN
61310-04410
|
$39.96 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01107-06127
Superseded by 01500-06127
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01500-06123
Superseded by 01500-0612A
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER,LOCK
08321-21067
Superseded by 08321-01067
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
LOCK WASHER
08321-01063
Superseded by 08321-0106A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
EMBLEM, 50
68381-04400-17U
|
$8.44 | ||
|
Unavailable |
|||
