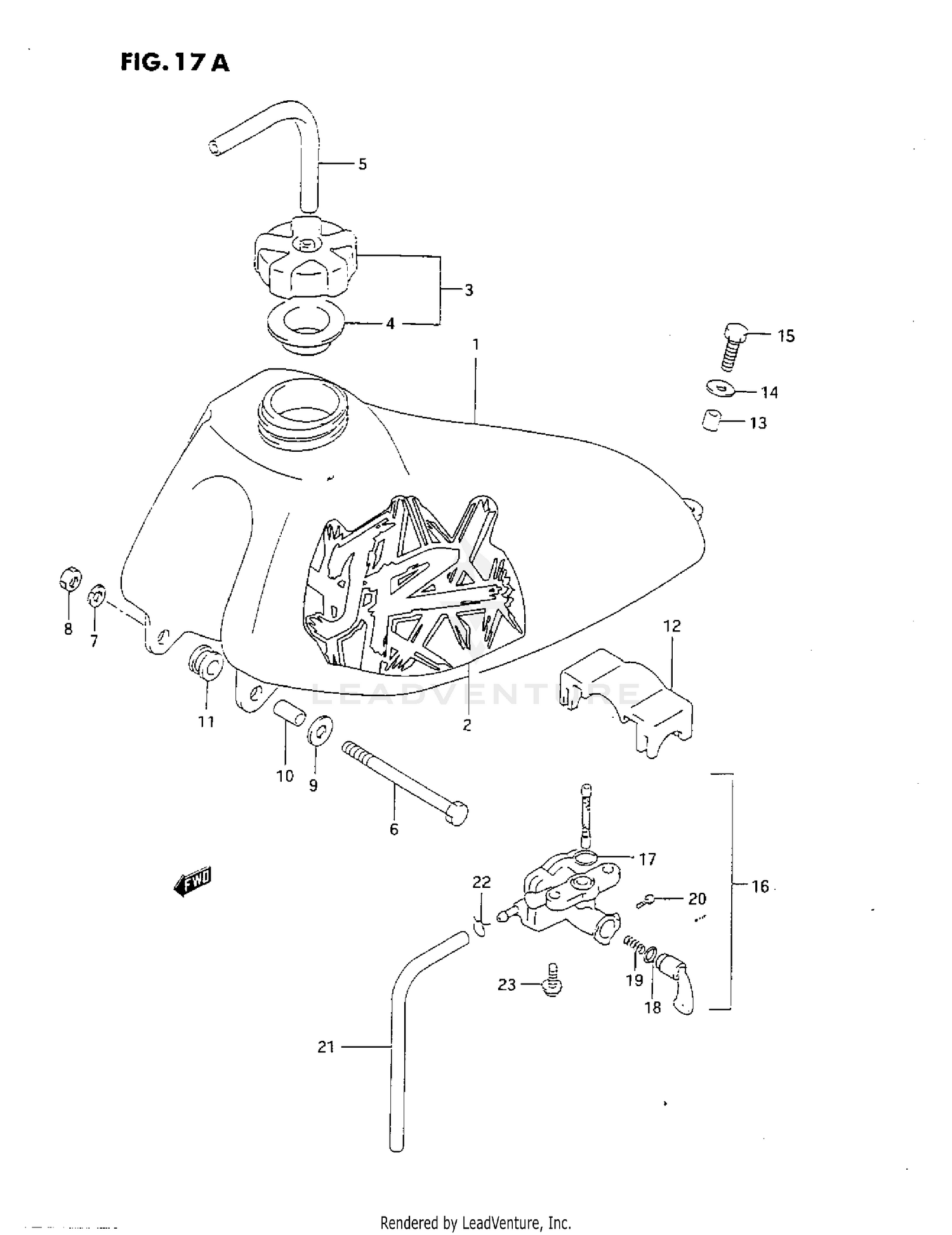

Fuel Tank (r) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK, FUEL (YELLOW)
44110-04420-25Y
|
$203.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM, RH
68121-04430-C2M
|
$38.85 | ||
|
Unavailable |
|||
|
#2
EMBLEM, LH
68122-04430-C2M
|
$39.16 | ||
|
Unavailable |
|||
|
#3
CAP SET,FUEL TA
44200-40810
Superseded by 44200-40822
|
$19.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
44248-40400
Superseded by 44248-05211
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE,5X10X600
09352-50823-300
Superseded by 44421-13ER0
|
$12.80 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01500-06903
Superseded by 01500-0690B
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
LOCK WASHER
08321-01063
Superseded by 08321-0106A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
NUT
08310-00063
Superseded by 08310-0006A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
.WASHER (6.5X18X1.0)
09160-06028
|
$1.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
SPACER,7.2X10X1
09180-06006
Superseded by 09180-07019
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION
09320-10008
Superseded by 09320-10075
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION, UPPER
44542-04420
|
$10.17 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
09180-06111
Superseded by 09180-06260
|
$4.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
.WASHER (6.5X18X1.0)
09160-06028
|
$1.79 | ||
|
Unavailable |
|||
|
#15
BOLT
01500-06163
Superseded by 01500-0616A
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
COCK ASSY, FUEL
44300-04420
|
$62.53 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING, JOINT
44348-41370
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
.O RING
44353-41370
|
$5.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING
44357-41370
Superseded by 44357-32470
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
44343-41370
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE,5X10X600
09352-50823-300
Superseded by 44421-13ER0
|
$12.80 | ||
|
Unavailable |
|||
|
#22
CLIP
09401-08401
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW
02112-36163
Superseded by 02112-3616A
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
