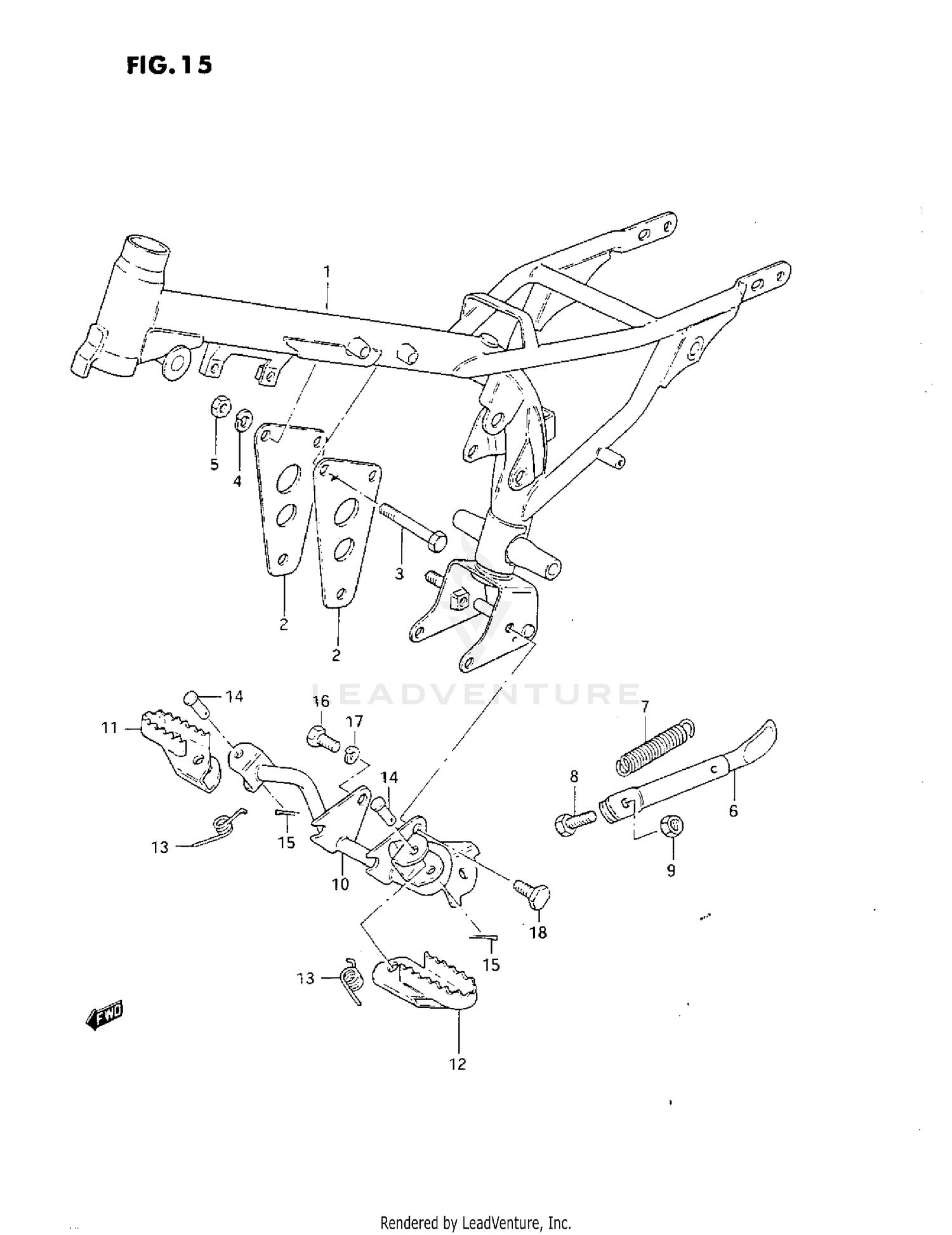

Frame-footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLUE)
41100-04431-19F
|
$180.24 | ||
|
Unavailable |
|||
|
#1
FRAME (BLACK)
41100-04431-019
|
$292.97 | ||
|
Unavailable |
|||
|
#2
PLATE, MOUNTING
41991-04410
|
$7.99 | ||
|
Unavailable |
|||
|
#3
BOLT
01107-08708
Superseded by 01500-0870B
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#4
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
NUT
08310-12088
Superseded by 08310-00087
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
STAND, PROP (BLUE)
42300-04420-19F
|
$12.70 | ||
|
Unavailable |
|||
|
#6
STAND, PROP (BLACK)
42300-04420-019
|
$309.58 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING
09443-14017
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (8X22)
09100-08145
Superseded by 09100-08274
|
$4.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
NUT
08310-12088
Superseded by 08310-00087
|
$2.30 | ||
|
Unavailable |
|||
|
#10
BAR, FRONT FOOTREST
43510-04411
|
$37.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
FOOTREST, FRONT RH
43550-46000-19F
Superseded by 43550-46000-019
|
$22.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
FOOTREST, FRONT RH
43550-46000-019
|
$22.90 | ||
|
Unavailable |
|||
|
#12
FOOTREST, FRONT LH
43560-46000-19F
Superseded by 43560-46000-019
|
$23.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
FOOTREST, FRONT LH
43560-46000-019
|
$23.67 | ||
|
Unavailable |
|||
|
#13
SPRING
09448-14012
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN
09200-08002
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN
04111-20208
Superseded by 04111-2020A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG, DRAIN
01107-08167
Superseded by 01500-0816B
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#17
.WASHER
08321-21088
Superseded by 08321-01087
|
$2.29 | ||
|
Unavailable |
|||
|
#18
BOLT, LH
09100-08143
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
