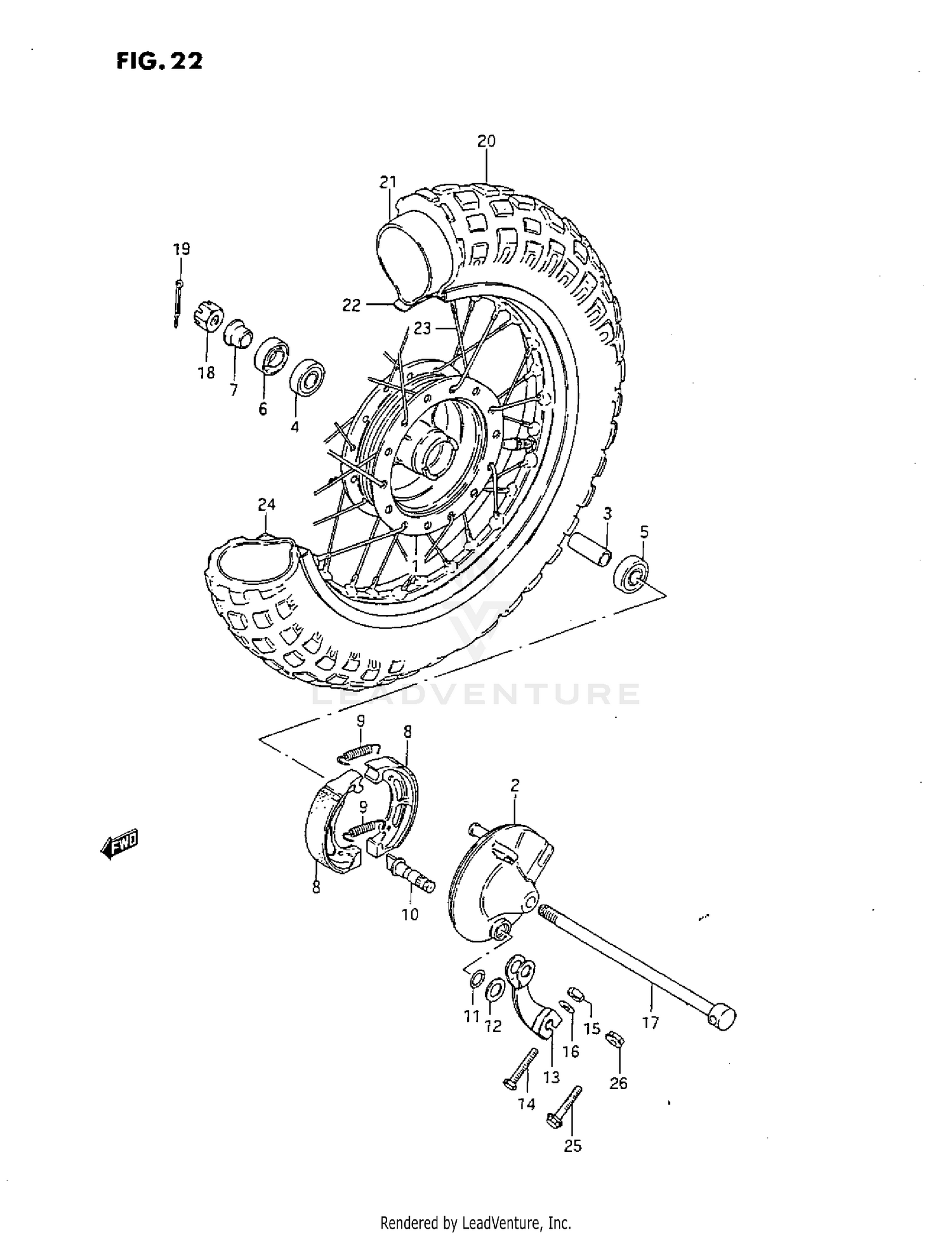

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT WHEEL
54110-04400
|
$229.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
PANEL, BRAKE ANCHOR
54210-04410
|
$49.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
09180-10012
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING (10X26X8)
08113-60000
Superseded by 09262-10015
|
$18.51 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, LH
08143-60007
|
$21.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL (15X27X6)
09284-15004
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, AXLE
54741-04000
|
$6.01 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHOE SET, BRAKE
54410-04002
Superseded by 64400-04811
|
$33.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHOE SET, BRAKE
64410-04201
Superseded by 64400-04811
|
$33.92 | ||
|
Unavailable |
|||
|
#9
SPRING
09443-07025
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAM, BRAKE
54441-04000
Superseded by 54441-04001
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
O RING (D:2.4,ID:9.6)
09280-10006
Superseded by 09280-10013
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
09160-10026
Superseded by 09160-10121
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, BRAKE CAM
54451-04000
|
$18.23 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01107-05258
Superseded by 01500-0525A
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
08310-11057
Superseded by 08310-00057
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
08322-21057
Superseded by 08322-01057
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
AXLE, FRONT
54711-04410
|
$23.08 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08314-31108
Superseded by 08314-3110A
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
09141-10006
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN
04111-20208
Superseded by 04111-2020A
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
TIRE, FRONT (2.50-10)
55100-04410
|
$28.47 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE, INNER
55200-04410
|
$36.00 | ||
|
Available to order. Add to View Price |
|||
|
#22
PROTECTOR, TUBE
55261-04410
|
$6.69 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPOKE SET
55300-04820
|
$56.67 | ||
|
Available to order. Add to View Price |
|||
|
#24
RIM, WHEEL (1.40X10)
55311-04410
|
$234.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, BRAKE CAM LEVER
01517-05258
Superseded by 01550-0525A
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, BRAKE CAM LEVER
01550-05253
Superseded by 01550-0525A
|
$2.59 | ||
|
Unavailable |
|||
|
#26
NUT
08316-16058
Superseded by 08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
08316-10053
Superseded by 08316-1005A
|
$2.72 | ||
|
Unavailable |
|||
