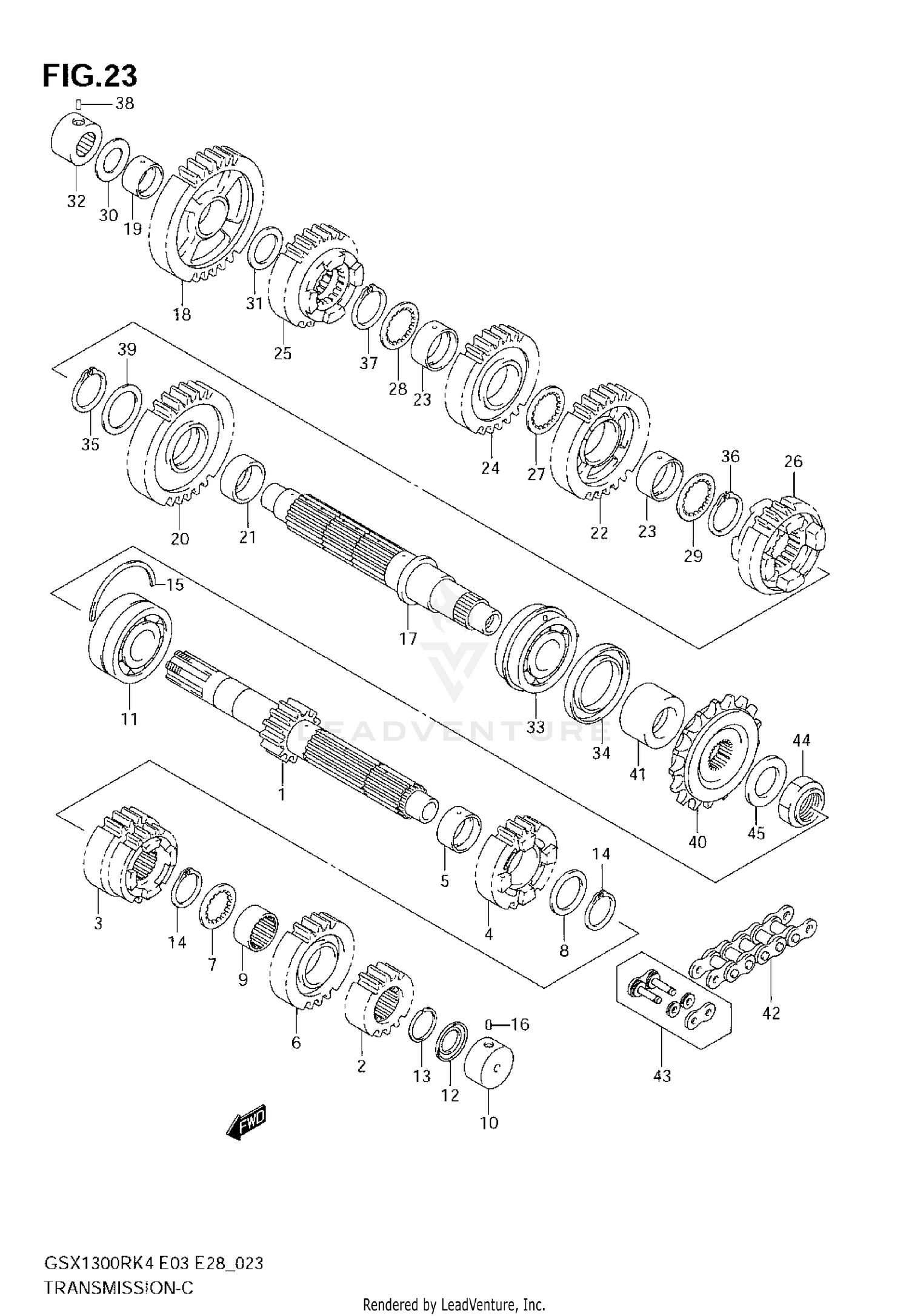

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT,CNTR (NT:13)
24120-24F00
|
$370.19 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#2
GEAR, 2ND DRIVE (NT:16)
24221-24F00
|
$153.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3RD & 4TH DRIVE
24231-24F10
|
$261.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3RD & 4TH DRIVE
24231-24F40
|
$261.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 5TH DRIVE (NT:22)
24251-24F00
|
$218.03 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, 5TH DRIVE
24252-24F10
|
$40.03 | ||
|
Available to order. Add to View Price |
|||
|
#6
GEAR, 6TH DRIVE (NT:23)
24261-24F00
|
$210.03 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER,LOCK (27X36X2.5)
09167-27003
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, 5TH DRIVE
09181-27014
|
$6.87 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSH, 4TH DRIVE
24262-24F10
|
$40.03 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING (20X34X17.5)
09263-20085
|
$83.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BEARING, CENTER SHAFT RH
09267-25012
|
$169.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL, OIL
09285-20006
|
$8.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
CIRCLIP, 2ND DRIVE
09380-27004
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP, 5TH & 6TH DRIVE
09380-27006
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#15
C RING
09390-62012
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN, CNTR SHAFT BRG LH
04221-07209
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#17
SHAFT, DRIVE
24131-24F10
|
$355.92 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 1ST DRIVEN (NT:34)
24311-24F00
|
$207.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BUSH, 1ST DRIVEN
24312-24F10
|
$40.03 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, 2ND DRIVEN (NT:31)
24321-24F00
|
$171.46 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH, 2ND DRIVEN
24322-24F10
|
$40.03 | ||
|
Available to order. Add to View Price |
|||
|
#22
GEAR, 3RD DRIVEN (NT:29)
24331-24F00
|
$214.51 | ||
|
Available to order. Add to View Price |
|||
|
#23
BUSH, 3RD & 4TH DRIVEN
24332-24F10
|
$38.54 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, 4TH DRIVEN (NT:27)
24341-24F00
|
$177.41 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, 4TH DRIVEN (NT:27)
24341-24F10
|
$228.23 | ||
|
Available to order. Add to View Price |
|||
|
#25
GEAR, 5TH DRIVEN (NT:25)
24351-24F10
|
$214.51 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR, 6TH DRIVEN (NT:24)
24361-24F10
|
$212.66 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, 3RD DRIVEN GEAR LH
09167-30008
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, 4TH DRIVEN GEAR RH
09167-30008
|
$6.66 | ||
|
Unavailable |
|||
|
#29
WASHER, 3RD & 4TH DRIVEN
09167-30008
|
$6.66 | ||
|
Unavailable |
|||
|
#30
WASHER, 1ST DRIVEN RH
09181-20251
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, 1ST DRIVEN LH
09181-24005
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING (20X34X20)
09263-20040
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
BEARING, DRIVE SHAFT LH
09267-30011
|
$181.73 | ||
|
Available to order. Add to View Price |
|||
|
#34
SEAL, DRIVE SHAFT
09283-42017
|
$55.75 | ||
|
Available to order. Add to View Price |
|||
|
#35
CIRCLIP, 2ND DRIVEN
09380-30009
|
$4.38 | ||
|
Available to order. Add to View Price |
|||
|
#36
CIRCLIP, 3RD DRIVEN
09380-30009
|
$4.38 | ||
|
Unavailable |
|||
|
#37
CIRCLIP, 4TH DRIVEN
09380-30009
|
$4.38 | ||
|
Unavailable |
|||
|
#38
PIN, DRIVE SHAFT BRG RH
04221-07209
|
$2.51 | ||
|
Unavailable |
|||
|
#39
WASHER, 2ND DRIVEN GEAR RH
08211-30405
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#40
SPROCKET, ENGINE (NT:17)
27510-21A31
|
$108.11 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPACER, SPROCKET
27531-24F00
|
$72.77 | ||
|
Available to order. Add to View Price |
|||
|
#42
CHAIN ASSY,DRIV
27600-24F00-112
Superseded by 27600-24F50-112
|
$299.60 | ||
|
Available to order. Add to View Price |
|||
|
#43
JOINT SET, DRIVE
27620-24F00
|
$23.83 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT
09159-20004
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER (25X40X1.5)
09181-25268
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
