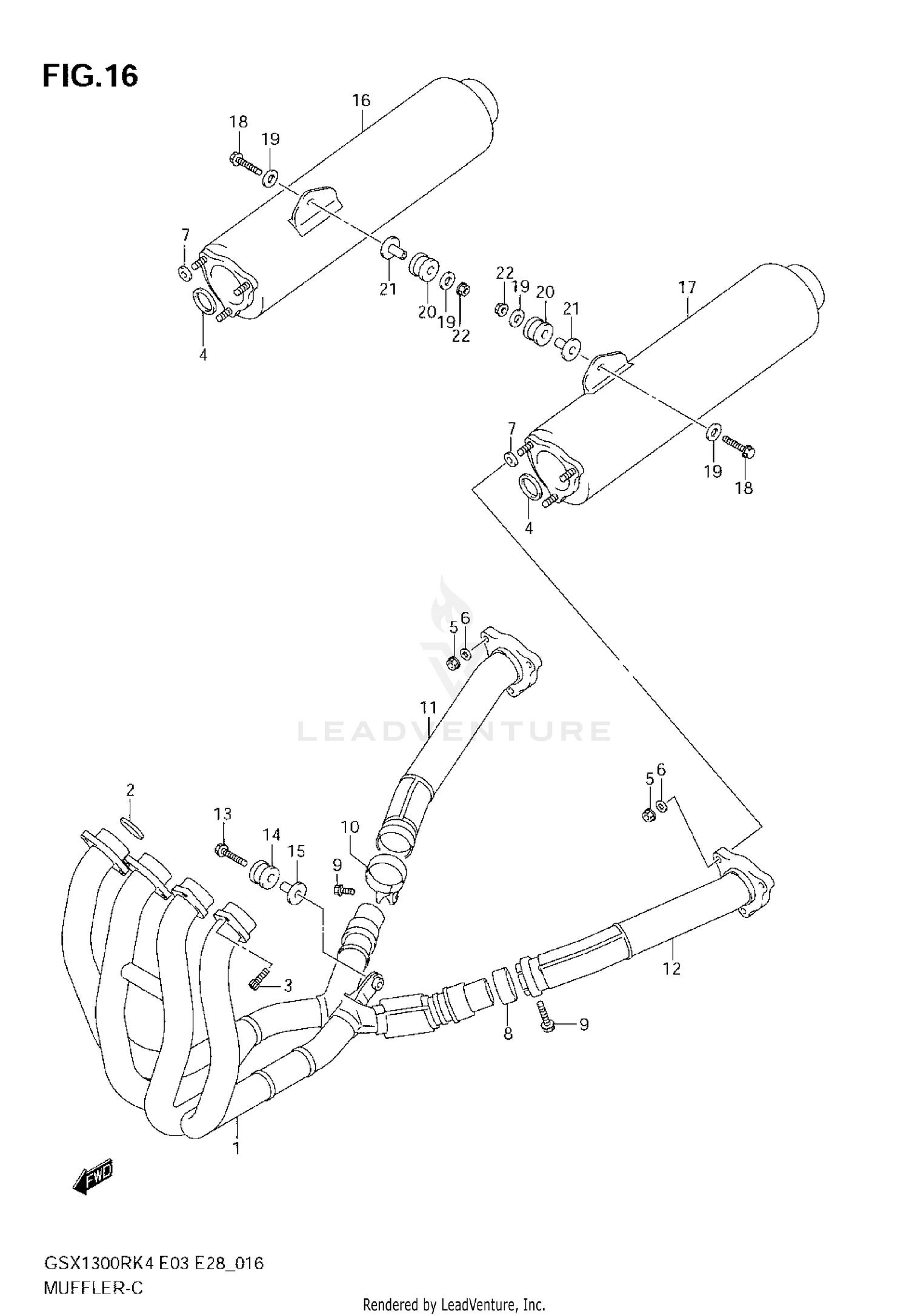

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST
14100-24F40
|
$1,169.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
.GASKET,EXHAUST PIPE
14181-22D01
|
$13.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
07130-08253
Superseded by 07130-0825B
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET,MUF JOINT
14181-33E00
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
09159-08116
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
.WASHER
09160-08059
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING (D:1.9,ID:7.8)
09280-08012
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
CONNECTOR, MUFFLER
14771-24F00
Superseded by 14771-24F01
|
$34.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
01550-08403
Superseded by 01550-0840A
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP, CONNECTOR MUFFLER RH
14459-24F30
|
$24.46 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE, JOINT RH
14230-24F40
|
$494.02 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIPE, JOINT LH
14240-24F30
|
$540.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (8X45)
09118-08152
Superseded by 09118-08152-A05
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION
09320-12067
|
$17.21 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER
09180-08152
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#16
BODY, MUFFLER RH
14310-24F00-H01
|
$859.57 | ||
|
Available to order. Add to View Price |
|||
|
#17
BODY, MUFFLER LH
14340-24F00-H01
|
$1,045.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
09103-08358
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER (8.5X28X1.5)
09160-08142
|
$3.37 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION
09320-12049
|
$13.39 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER
09180-08156
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
09159-08034
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
