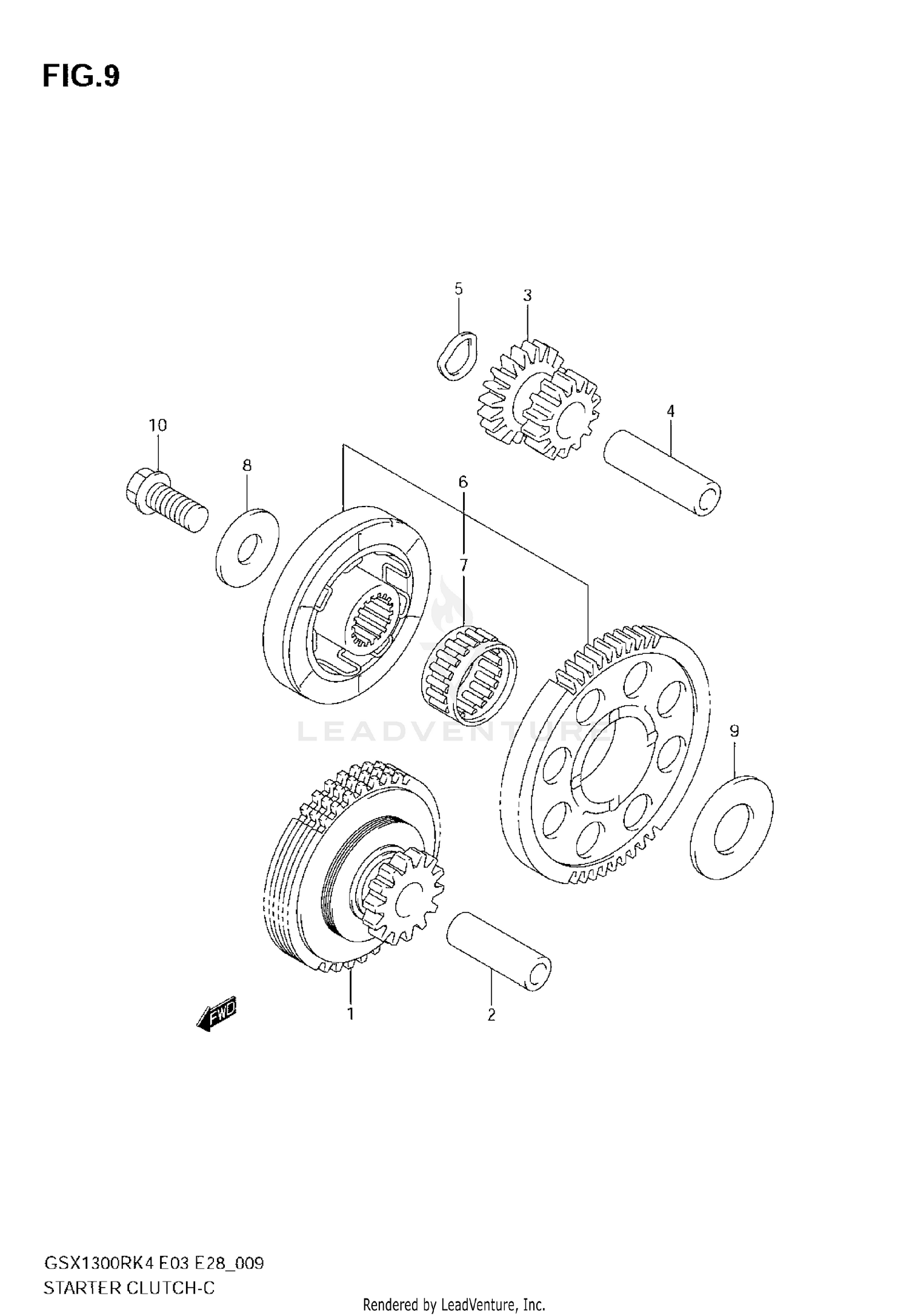

Starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LIMITER ASSY,START ID GR NO.1
12600-24F00
Superseded by 12600-24F01
|
$132.97 | ||
|
Unavailable |
|||
|
#2
PIN
12615-24F00
|
$13.56 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR,STARTER IDLE,NO.2 (NT:16
12612-24F00
|
$85.68 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
12151-05200
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
09164-14008
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLUTCH SET, STARTER
12600-24850
|
$428.26 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLUTCH SET,STARTER (NT:44)
12600-24860
Superseded by 12600-24861
|
$432.41 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING (28X34X16.8)
09263-28031
|
$44.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
08211-10285
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
08211-20403
|
$5.52 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (10X23)
09103-10189
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
