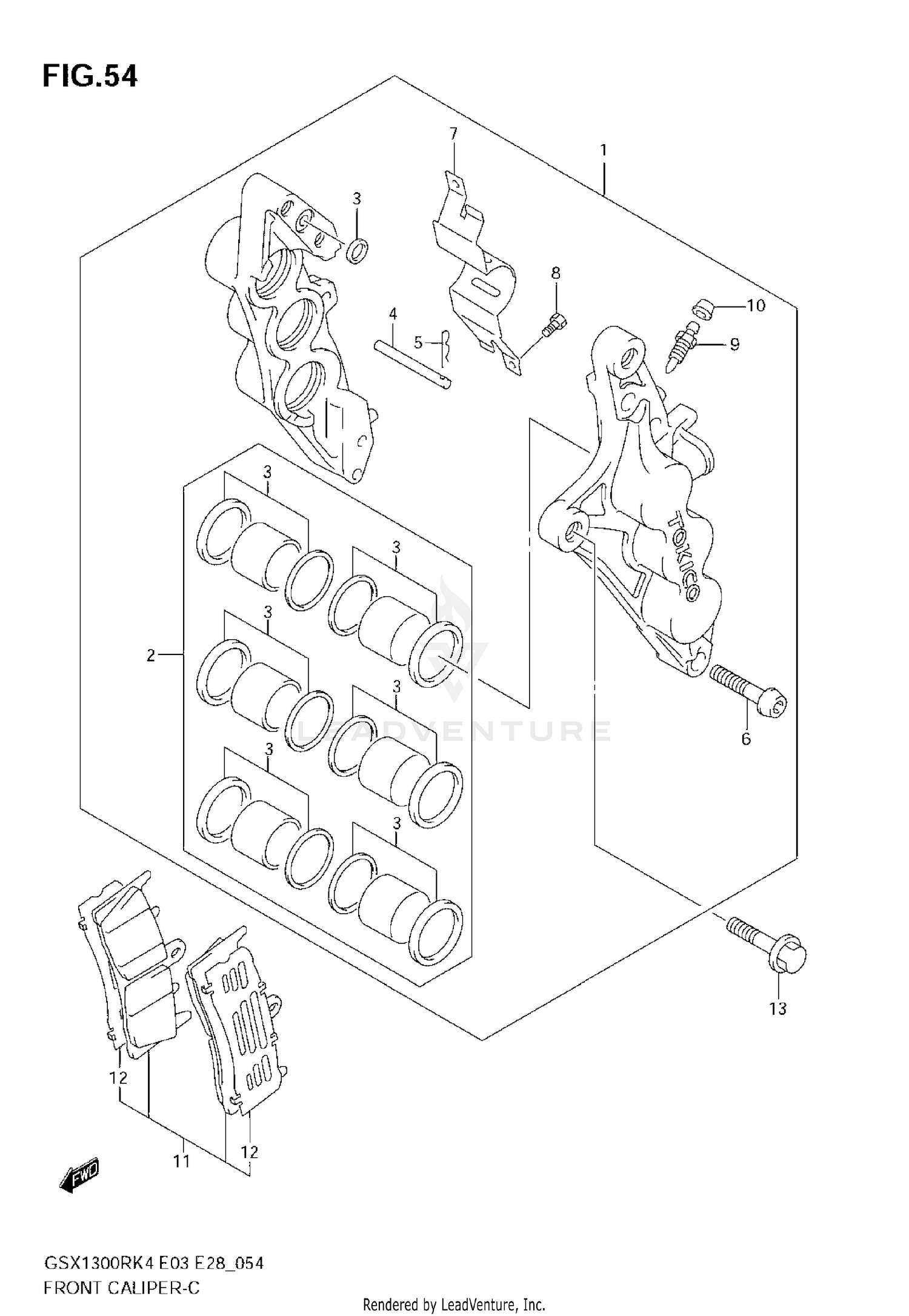

Front Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY, FRONT RH
59100-33E40-999
|
$527.45 | ||
|
Available to order. Add to View Price |
|||
|
#1
CALIPER ASSY, FRONT LH
59300-33E40-999
|
$610.43 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON SET
59301-33861
|
$158.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL SET, PISTON
59300-33881
|
$69.87 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
69141-46E01
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#5
.CLIP,PAD PIN
69142-45000
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
59145-18G00
|
$11.21 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER
59151-46E00
|
$33.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SCREW
59153-22D00
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#9
BLEEDER
59121-18410
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP
55156-66310
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
PAD & SHIM SET
59302-33860
|
$80.32 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHIM
59171-33E00
|
$10.37 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (10X30)
09103-10320
|
$9.74 | ||
|
Available to order. Add to View Price |
|||
