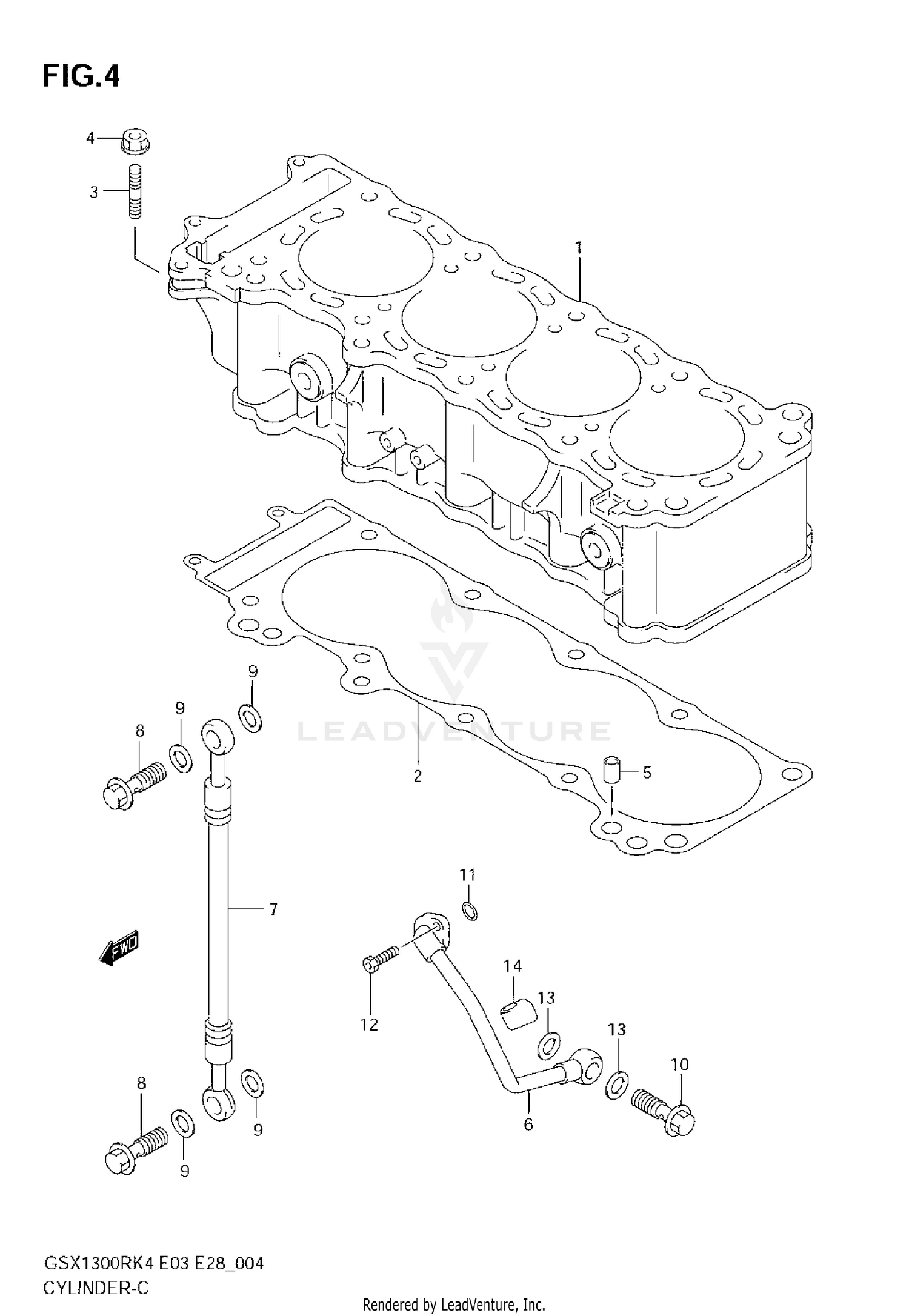

Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
11210-24F00-0F0
|
$2,218.27 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,CYLINDER
11241-24F00
Superseded by 11241-15H00
|
$66.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT,STUD
01421-06253
Superseded by 01421-0625A
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
08316-10063
Superseded by 08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
.PIN
04211-11169
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE,CRANKCASE OIL
11280-24F00
|
$81.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE,CYL HEAD OIL
11282-24F00
|
$104.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
UNION
09360-10040
Superseded by 09360-10062
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
09168-10007
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, OIL PIPE UNION
09360-14012
|
$13.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING (D:2.4,ID:11.8)
09280-12012
|
$5.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT, OIL PIPE (6X16)
09106-06073
|
$2.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
.GASKET (14X20X1.5)
09168-14015
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CUSHION,CRANKCASE OIL PIPE
11283-24F00
Superseded by 11283-24F01
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
