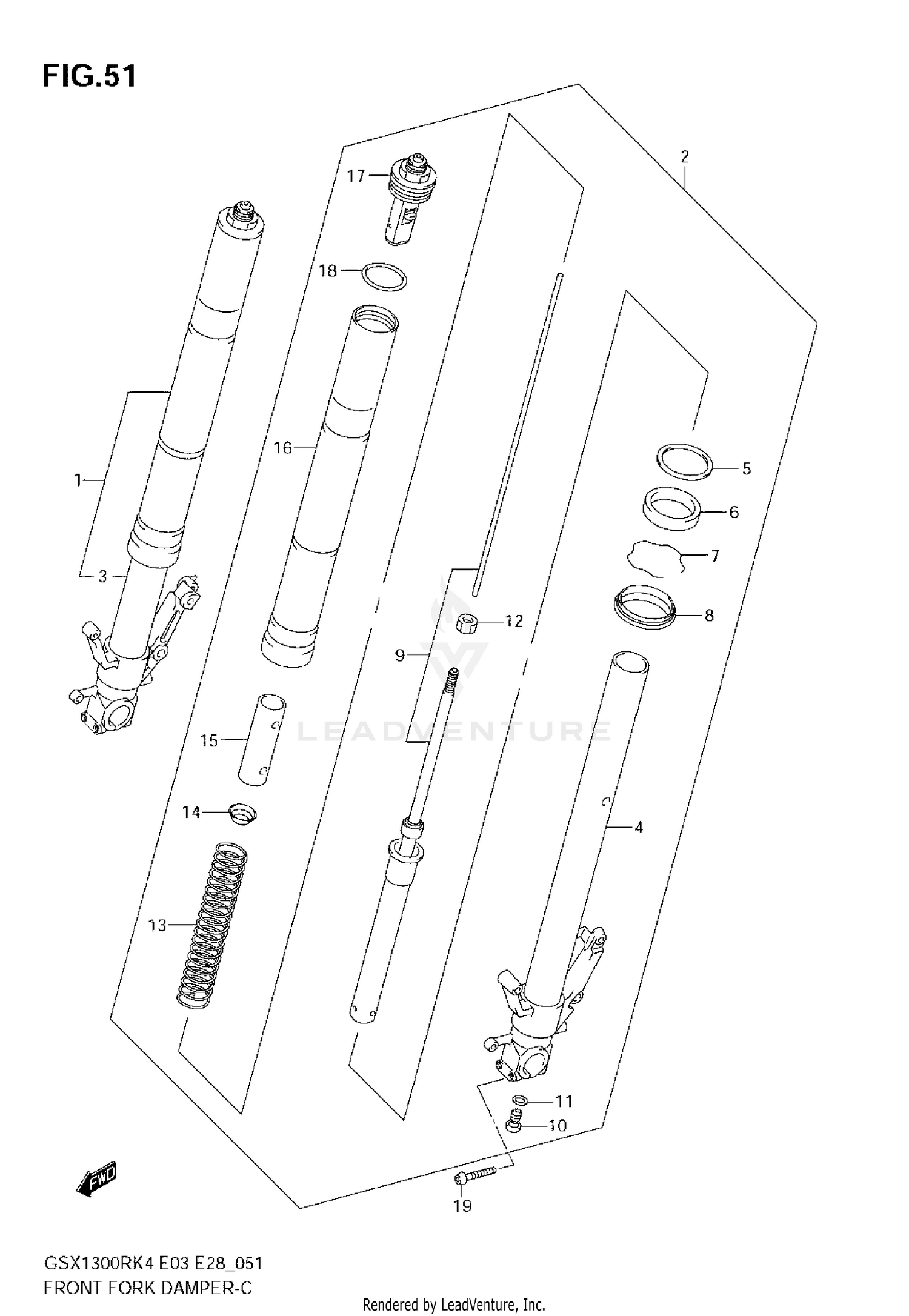

Front Fork Damper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY,FR
51103-24F30
Superseded by 51103-24F31
|
$1,846.60 | ||
|
Unavailable |
|||
|
#2
DAMPER ASSY,FRT
51104-24F30
Superseded by 51104-24F31
|
$2,283.58 | ||
|
Unavailable |
|||
|
#3
TUBE,INNER,R(BL
51110-24F30
Superseded by 51110-24F31
|
$874.45 | ||
|
Unavailable |
|||
|
#4
TUBE,INNER,L(BL
51120-24F30
Superseded by 51120-24F31
|
$809.67 | ||
|
Unavailable |
|||
|
#5
WASHER
51158-14200
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, OIL
51153-02FA0
|
$32.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
RING, STOPPER
51156-14200
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SEAL,DUST
51173-02FA0
|
$34.32 | ||
|
Available to order. Add to View Price |
|||
|
#9
CYLINDER
51146-24F00
|
$414.46 | ||
|
Unavailable |
|||
|
#10
BOLT
51147-40C00
|
$30.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
51148-40300
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
51129-24F00
|
$11.13 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, FRONT
51171-24F00
|
$83.20 | ||
|
Unavailable |
|||
|
#14
GUIDE, SPRING
51158-24F00
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER, SPRING
51176-24F00
|
$30.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE, OUTER (BRONZE)
51130-24F20
|
$671.52 | ||
|
Available to order. Add to View Price |
|||
|
#17
CYLINDER
51351-24F00
Superseded by 51351-24F01
|
$189.23 | ||
|
Unavailable |
|||
|
#18
..O-RING
62278-14100
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
51166-24F30
|
$12.36 | ||
|
Available to order. Add to View Price |
|||
