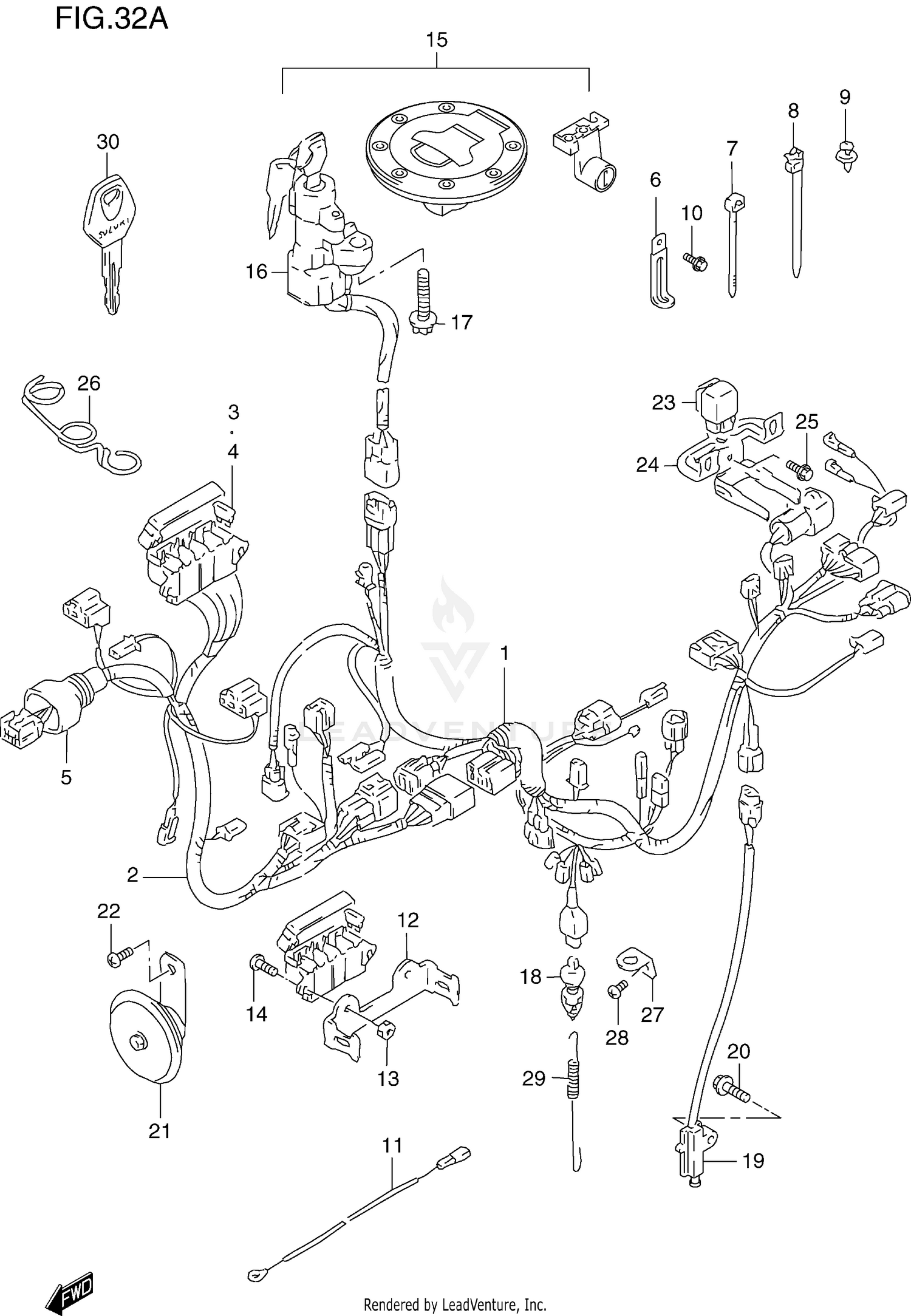

Wiring Harness (model Y) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING NO.1
36610-34E10
|
$425.16 | ||
|
Available to order. Add to View Price |
|||
|
#2
HARNESS, WIRING NO.2
36620-34E10
|
$297.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (10A)
09481-10501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUSE (15A)
09481-15501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#5
.COVER SPEEDOMETER COUPLER
36618-33E00
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
09404-06432
Superseded by 09404-06039
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP
09407-17401
Superseded by 09407-17402
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
.CLIP (BLACK)
09409-07305-5PK
|
$2.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
WIRE, OIL PRESSURE SW
36851-17E10
|
$15.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, FUSE BOX
36744-33E00
|
$11.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
94619-27A00
Superseded by 09159-05048
|
$9.23 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SCREW
02142-05123
Superseded by 02142-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
LOCK SET
37102-33850
Superseded by 37102-33851
|
$343.52 | ||
|
Available to order. Add to View Price |
|||
|
#15
LOCK SET
37103-33880
|
$376.98 | ||
|
Unavailable |
|||
|
#16
LOCK ASSY,STEER
37100-33E20
Superseded by 37100-33E21
|
$224.18 | ||
|
Unavailable |
|||
|
#17
SCREW, STEERING LOCK
09139-08016
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#18
SWITCH ASSY, STOP LAMP
37740-24A00
|
$23.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
SWITCH ASSY, SIDE STAND
37840-33E00
|
$85.42 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (8X20)
01550-08203
Superseded by 01550-0820A
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#21
HORN ASSY
38500-20E10
|
$75.69 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
09125-08003
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#23
RELAY ASSY, FUEL PUMP
38740-24X50
|
$58.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, SIDE STAND
38930-33E00
|
$8.21 | ||
|
Unavailable |
|||
|
#25
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$2.45 | ||
|
Unavailable |
|||
|
#26
GUIDE, WIRING HARNESS
36619-33E00
|
$14.12 | ||
|
Available to order. Add to View Price |
|||
|
#27
BRACKET, STOP LAMP SW
43251-21E00
|
$6.33 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW
02142-06083
Superseded by 02142-0608A
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPRING, STOP LAMP SW
09443-06005
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#30
KEY, BLANK
37146-33E00
|
$27.38 | ||
|
Available to order. Add to View Price |
|||
