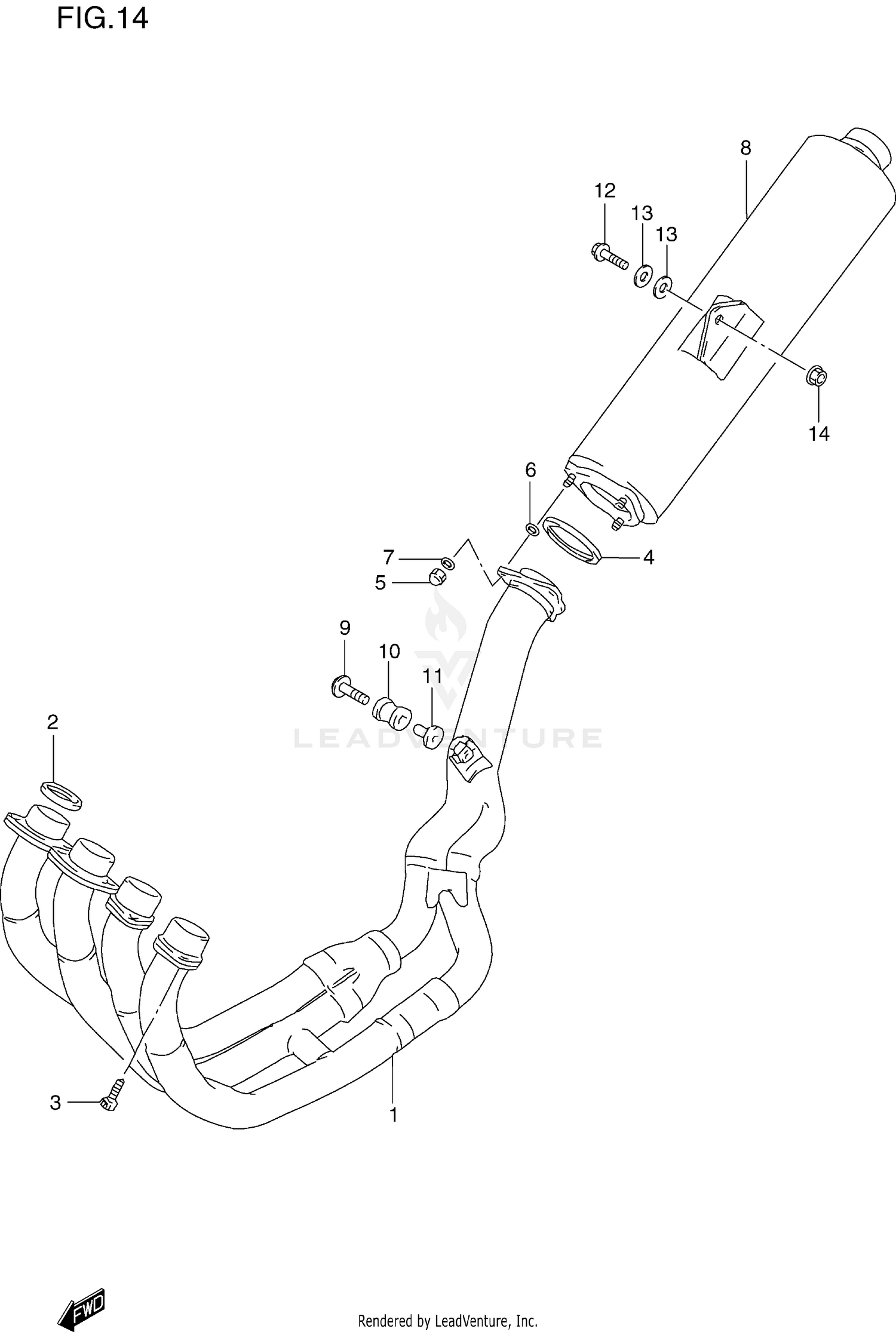

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST
14100-34E00
|
$816.92 | ||
|
Unavailable |
|||
|
#1
PIPE, EXHAUST
14100-34E20
|
$984.02 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,EXHAUST
14181-46E00
Superseded by 14181-46E10
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
07130-08253
Superseded by 07130-0825B
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET,MUF JOINT
14181-33E00
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
09159-08101
Superseded by 09159-08116
|
$9.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT
09159-08115
Superseded by 09159-08116
|
$9.78 | ||
|
Unavailable |
|||
|
#6
WASHER (8.5X18X2)
09160-08114
Superseded by 09160-08120
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING (D:1.9,ID:7.8)
09280-08012
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
NO DESCRIPTION AVAILABLE
14310-34E00-H01
Superseded by 14310-34E01-H01
|
$551.02 | ||
|
Unavailable |
|||
|
#8
MUFFLER ASSY
14310-33E00-H01
Superseded by 14310-33E01-H01
|
$852.99 | ||
|
Unavailable |
|||
|
#8
MUFFLER ASSY
14310-33E01-H01
|
$852.99 | ||
|
Unavailable |
|||
|
#9
BOLT (8X45)
09118-08152
Superseded by 09118-08152-A05
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION
09320-12048
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER
09180-08152
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
01550-08357
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
09160-08021
Superseded by 09160-08130
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER
09160-08131
Superseded by 09160-08130
|
$2.54 | ||
|
Unavailable |
|||
|
#14
NUT
08361-25088
Superseded by 08361-2508A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
