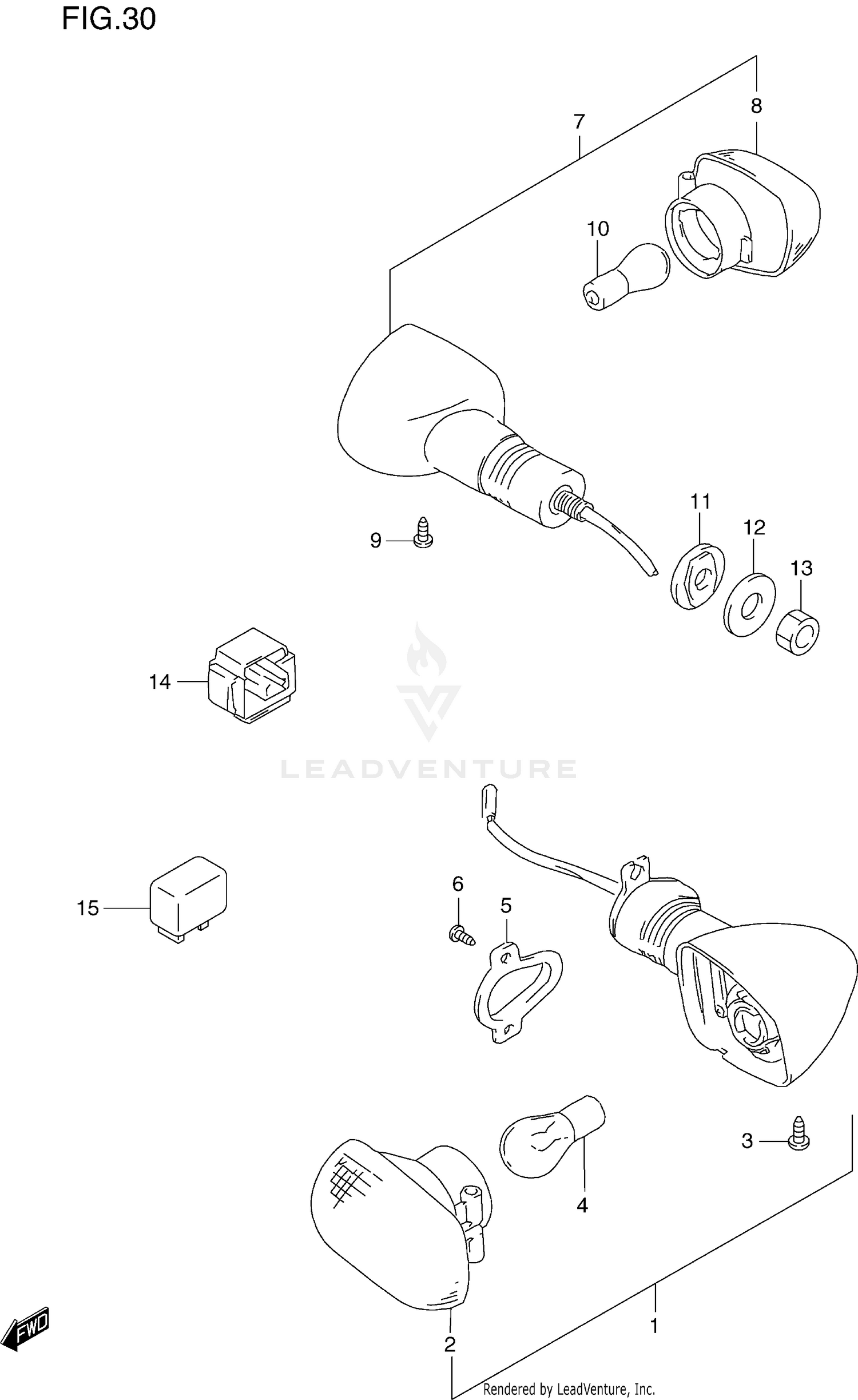

Turnsignal Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, FRONT TURNSIGNAL RH
35601-33E00
Superseded by 35601-33E30
|
$104.17 | ||
|
Available to order. Add to View Price |
|||
|
#1
LAMP ASSY, FRONT TURNSIGNAL LH
35602-33E00
Superseded by 35602-33E30
|
$112.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
LAMP UNIT
35610-33E00
|
$36.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
03242-04123
Superseded by 03242-0412B
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB (12V,21W)
09471-12045
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, FRONT
35629-33E00
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
03511-05103
Superseded by 03511-0510A
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#7
LAMP ASSY, REAR TURNSIGNAL,RH
35603-33E30
|
$125.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
LAMP ASSY, REAR TURNSIGNAL,LH
35604-33E30
|
$125.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
LAMP UNIT
35610-33E00
|
$36.97 | ||
|
Unavailable |
|||
|
#9
SCREW
03242-04123
Superseded by 03242-0412B
|
$3.25 | ||
|
Unavailable |
|||
|
#10
BULB (12V,21W)
09471-12045
|
$4.13 | ||
|
Unavailable |
|||
|
#11
SPACER, REAR TURNSIGNAL
35695-17C00
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, REAR
09160-10501
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
08310-00103
Superseded by 08310-0010A
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
RELAY ASSY
38610-26E00
Superseded by 38610-26E01
|
$66.56 | ||
|
Available to order. Add to View Price |
|||
|
#15
RELAY ASSY,TURNSIGNAL LAMP
38610-03F00
Superseded by 38610-03F01
|
$115.08 | ||
|
Available to order. Add to View Price |
|||
