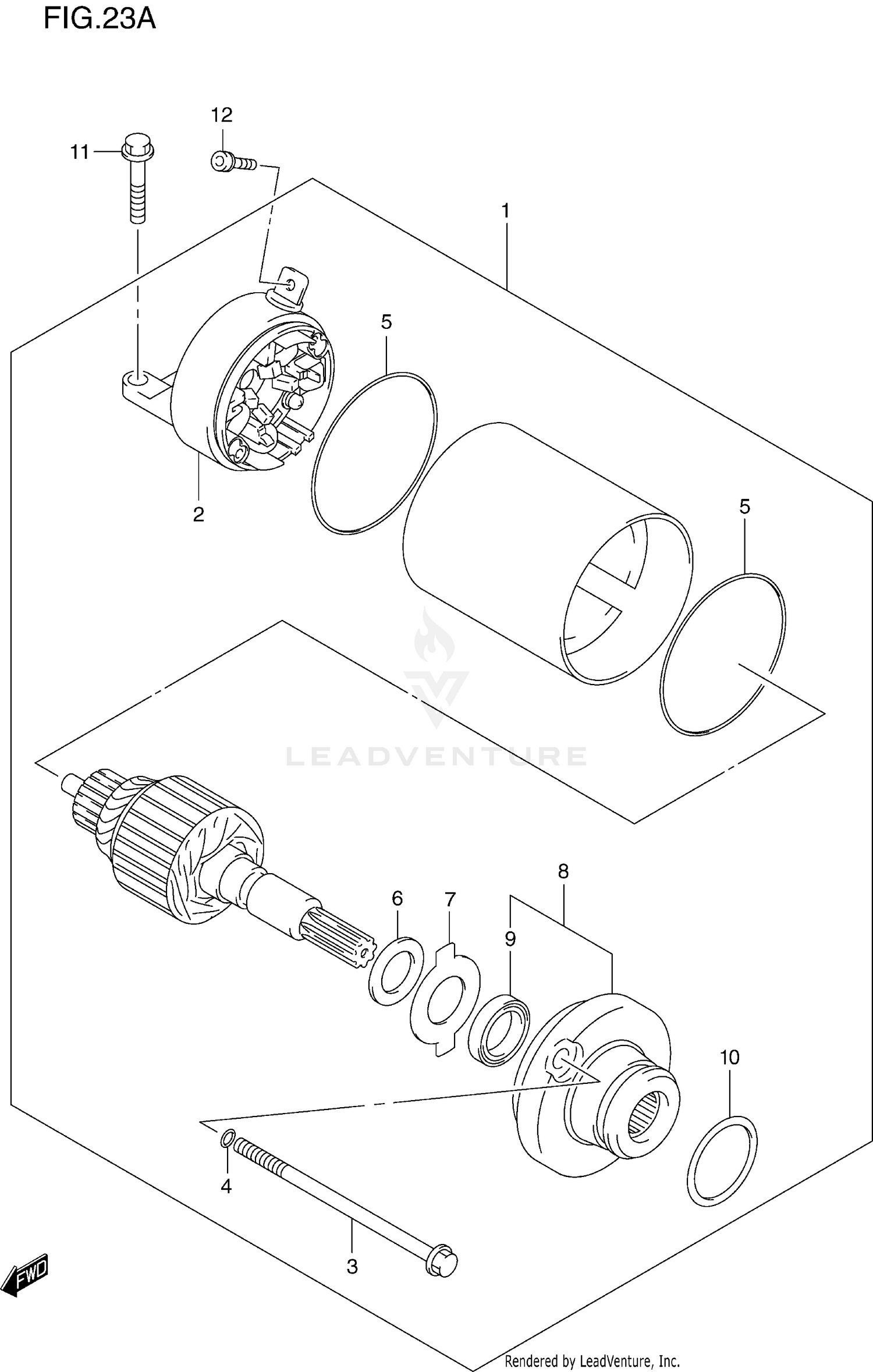

Starting Motor (model Y) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY, STARTING
31100-34E01
|
$442.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
FRAME ASSY, COMMUTATOR END
31175-26F00
|
$92.15 | ||
|
Unavailable |
|||
|
#3
BOLT
31281-34E00
|
$7.73 | ||
|
Unavailable |
|||
|
#4
O RING
31156-08F00
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
.O-RING
31264-32C10
|
$16.03 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM
31361-38300
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, LOCK
31361-32C10
|
$2.41 | ||
|
Unavailable |
|||
|
#8
BRACKET
31150-08F00
|
$82.34 | ||
|
Unavailable |
|||
|
#9
..OIL SEAL
31153-49210
|
$27.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
.O RING (D:3,ID:24.5)
09280-24003
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLB (6X20)
09128-06057
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (5X8)
09137-05004
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
