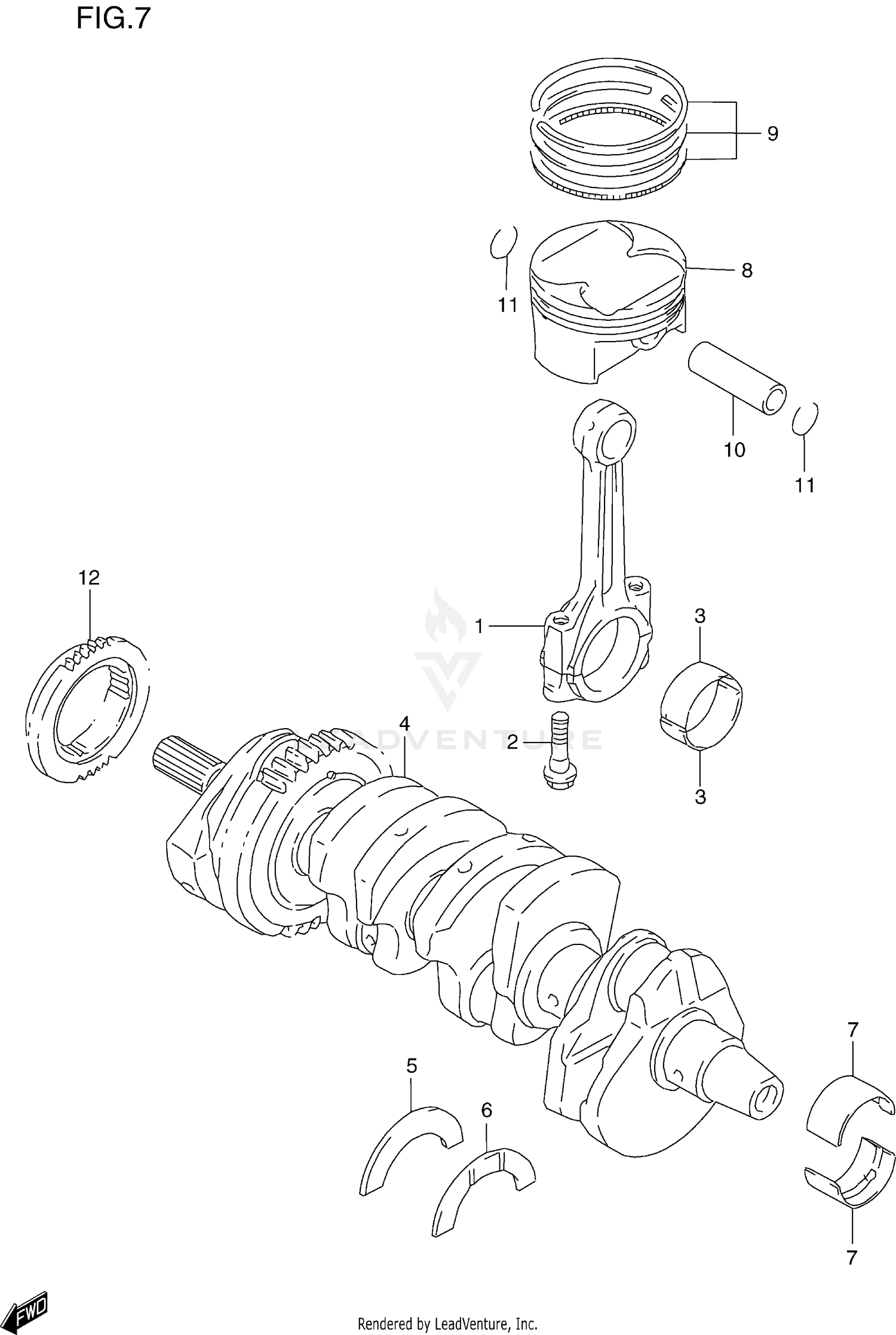

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
12160-34E00
Superseded by 12160-34E12
|
$149.66 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
12160-34E10
Superseded by 12160-34E12
|
$149.66 | ||
|
Unavailable |
|||
|
#1
NO DESCRIPTION AVAILABLE
12160-34E11
Superseded by 12160-34E12
|
$149.66 | ||
|
Unavailable |
|||
|
#2
BOLT
12163-33E00
|
$17.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CRANK PIN (GREEN)
12164-34E00-0A0
|
$11.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CRANK PIN (BLACK)
12164-34E00-0B0
|
$12.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CRANK PIN (BROWN)
12164-34E00-0C0
|
$12.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, CRANK PIN (YELLOW)
12164-34E00-0D0
|
$16.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
CRANKSHAFT SET
12000-34810
|
$1,239.75 | ||
|
Unavailable |
|||
|
#5
BEARING, THRUST RH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
BEARING, THRUST LH (RED)
12228-17E00-0A0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, THRUST LH (BLACK)
12228-17E00-0B0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, THRUST LH (BLUE)
12228-17E00-0C0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING, THRUST LH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
Unavailable |
|||
|
#6
.BEARING, CRANK THRUST
12228-17E00-0E0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
.BEARING, CRANK THRUST
12228-17E00-0F0
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANKSHAFT (GREEN)
12229-31E50-0A0
|
$20.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANKSHAFT (BLACK)
12229-31E50-0B0
|
$20.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANKSHAFT (BROWN)
12229-31E50-0C0
|
$16.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANKSHAFT (YELLOW)
12229-31E50-0D0
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANKSHAFT (GREEN)
12229-34E00-0A0
|
$15.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANKSHAFT (BLACK)
12229-34E00-0B0
|
$24.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CRANKSHAFT (BROWN)
12229-34E00-0C0
|
$15.05 | ||
|
Unavailable |
|||
|
#7
BEARING, CRANKSHAFT (YELLOW)
12229-34E00-0D0
|
$24.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON
12111-34E00-0F0
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON
12111-34E11-0F0
|
$78.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING SET, PISTON
12140-34E10
|
$62.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
RING SET, PISTON
12140-34E20
|
$65.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, PISTON
12151-34E00
|
$12.02 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, PISTON
12151-34E10
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP
09381-15001
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPROCKET, CAM CHAIN
12731-33E00
|
$47.70 | ||
|
Unavailable |
|||
|
#12
SPROCKET, CAM CHAIN
12731-33E10
|
$164.32 | ||
|
Unavailable |
|||
