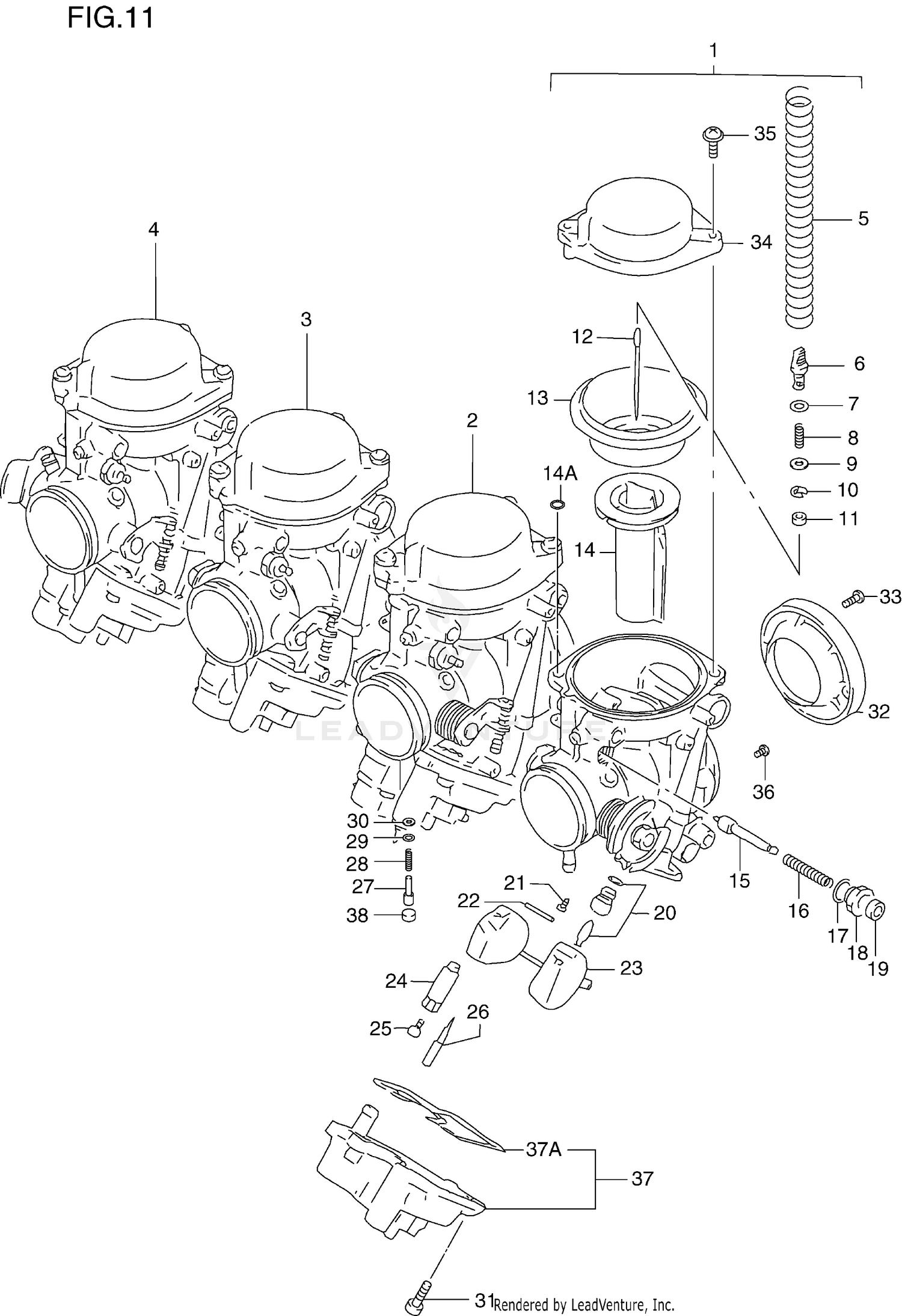

Carburetor (model V) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSY, LH
13201-34E10
|
$447.84 | ||
|
Unavailable |
|||
|
#1
CARBURETOR ASSY, LH
13201-34E30
|
$447.82 | ||
|
Unavailable |
|||
|
#2
CARBURETOR ASSY, ML
13202-34E10
|
$467.93 | ||
|
Unavailable |
|||
|
#2
CARBURETOR ASSY, ML
13202-34E30
|
$447.84 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSY, MR
13203-34E10
|
$467.93 | ||
|
Unavailable |
|||
|
#3
CARBURETOR ASSY, MR
13203-34E30
|
$447.82 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSY, RH
13204-34E10
|
$447.84 | ||
|
Unavailable |
|||
|
#4
CARBURETOR ASSY, RH
13204-34E30
|
$447.82 | ||
|
Unavailable |
|||
|
#5
SPRING
13573-34E00
|
$10.08 | ||
|
Available to order. Add to View Price |
|||
|
#6
GUIDE
13418-33E00
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING (D:1.9,ID:4.8)
09280-05004
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING
13481-33E00
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
13382-44030
|
$4.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
.E RING,MULTIPLE JET NOZZLE
13394-17E60
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING
13387-33E00
Superseded by 13387-44030
|
$7.74 | ||
|
Available to order. Add to View Price |
|||
|
#12
JET, NEEDLE (5DH20-53-1)
13383-34E10
|
$17.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
.DIAPHRAGM
13507-17C01
Superseded by 13507-17C02
|
$38.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE, PISTON
13501-34E00
|
$84.26 | ||
|
Available to order. Add to View Price |
|||
|
#14A
.O-RING
13295-33010
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUNGER
13411-05300
|
$32.08 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING
13417-26D00
|
$6.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
.O RING (16)
13278-47090
Superseded by 13278-47091
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
.HOLDER,GUIDE
13418-44080
|
$13.28 | ||
|
Available to order. Add to View Price |
|||
|
#19
.CAP,STARTER VALVE
13682-31210
|
$5.64 | ||
|
Available to order. Add to View Price |
|||
|
#20
VALVE ASSY,NEED
13370-33E00
Superseded by 13370-33E81
|
$73.16 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW
13602-05A10
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN
13254-92910
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#23
FLOAT ASSY
13250-33E00
|
$47.01 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, JET
13385-33E00
|
$30.19 | ||
|
Available to order. Add to View Price |
|||
|
#25
JET, MAIN (125)
09491-25014
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#25
JET, MAIN (122.5)
09491-24023
|
$19.58 | ||
|
Available to order. Add to View Price |
|||
|
#26
JET, PILOT (12.5)
09492-12008
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#27
ADJUSTER (3,1/2)
13279-33E00
|
$14.10 | ||
|
Available to order. Add to View Price |
|||
|
#27
ADJUSTER (2,1/2)
13279-33E00
|
$14.10 | ||
|
Unavailable |
|||
|
#28
.SPRING,THROTTLE SCREW
13268-48700
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#29
.WASHER (14X17)
13291-29900
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#30
.O-RING
13295-29900
Superseded by 13295-29901
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW
02112-05127
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
FUNNEL
13667-34E00
|
$39.19 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW
02112-04107
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER
13502-34E00
|
$46.07 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW
13247-33E00
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#36
JET, PILOT AIR (135)
09491-27008
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#36
JET, PILOT AIR (130)
09491-26016
|
$18.51 | ||
|
Available to order. Add to View Price |
|||
|
#37
BODY, FLOAT LH
13245-34E00
|
$62.82 | ||
|
Unavailable |
|||
|
#37
BODY, FLOAT LH
13245-34E40
|
$54.82 | ||
|
Unavailable |
|||
|
#37
BODY, FLOAT ML
13245-34E00
|
$62.82 | ||
|
Unavailable |
|||
|
#37
BODY, FLOAT ML
13245-34E40
|
$54.82 | ||
|
Unavailable |
|||
|
#37
BODY, FLOAT MR
13245-34E10
|
$62.82 | ||
|
Unavailable |
|||
|
#37
BODY, FLOAT MR
13245-34E30
|
$44.41 | ||
|
Unavailable |
|||
|
#37
BODY, FLOAT RH
13245-34E10
|
$62.82 | ||
|
Unavailable |
|||
|
#37
BODY, FLOAT RH
13245-34E30
|
$44.41 | ||
|
Unavailable |
|||
|
#37A
O RING
13258-33E00
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
|
#38
PLUG
13281-05A00
|
$5.94 | ||
|
Available to order. Add to View Price |
|||
