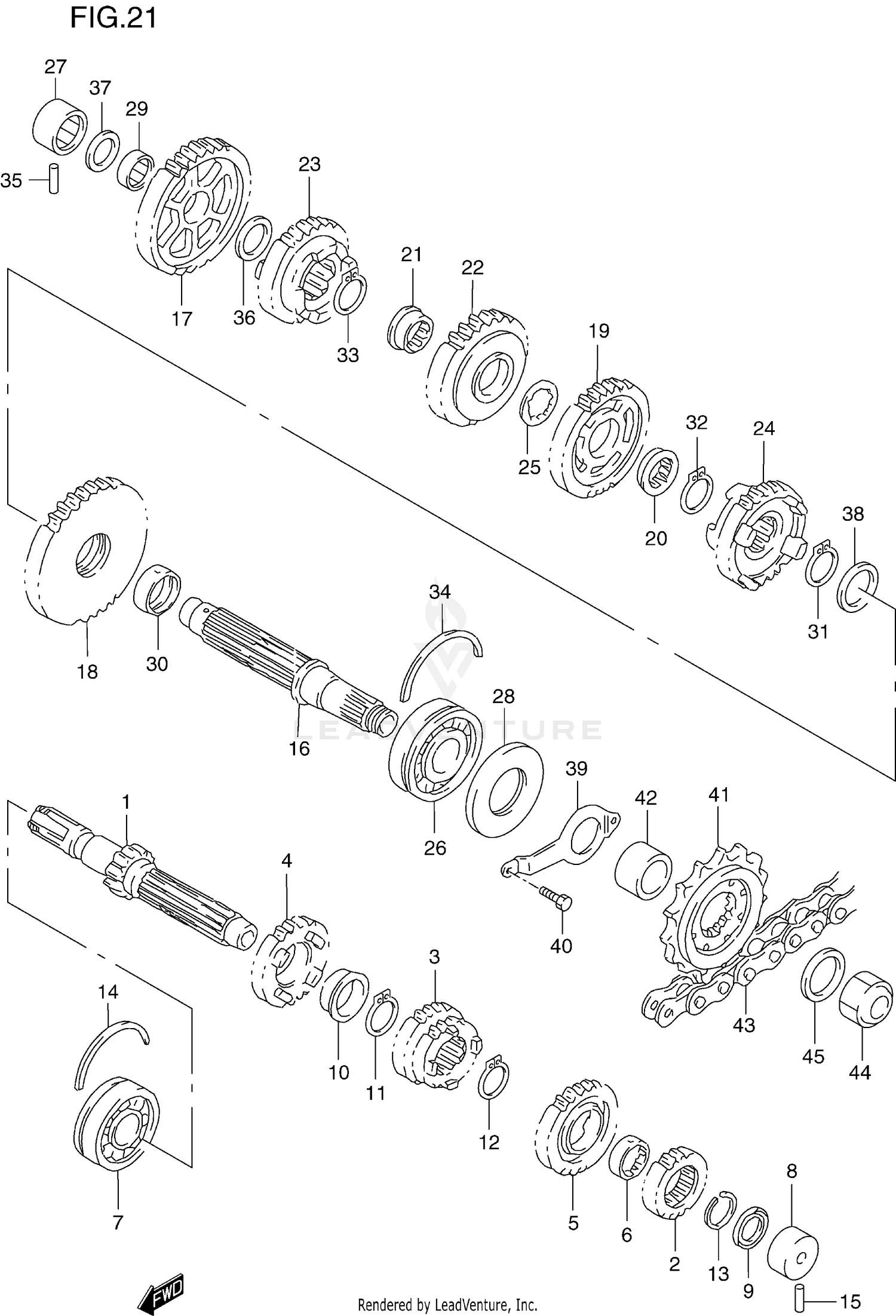

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, COUNTER (NT:15)
24120-33E00
|
$182.10 | ||
|
Unavailable |
|||
|
#2
GEAR, 2ND DRIVE (NT:17)
24221-33E00
|
$73.42 | ||
|
Unavailable |
|||
|
#2
GEAR, 2ND DRIVE (NT:19)
24221-34E00
|
$77.01 | ||
|
Unavailable |
|||
|
#3
GEAR, 3RD & 4TH (NT:20/21)
24231-33E00
|
$178.46 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3RD & 4TH (NT:20/21)
24231-34E00
|
$166.60 | ||
|
Unavailable |
|||
|
#4
GEAR, 5TH DRIVE (NT:21)
24251-33E10
|
$108.13 | ||
|
Unavailable |
|||
|
#4
GEAR, 5TH DRIVE (NT:21)
24251-34E00
|
$145.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 6TH DRIVE (NT:22)
24261-33E10
|
$367.90 | ||
|
Unavailable |
|||
|
#5
GEAR, 6TH DRIVE (NT:22)
24261-34E00
|
$145.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
BUSH, 6TH DRIVE GEAR
24262-17E10
|
$28.21 | ||
|
Unavailable |
|||
|
#7
BEARING, LH
09262-25051
Superseded by 09262-25105
|
$74.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING (20X34X17.5)
09263-20082
Superseded by 09263-20085
|
$83.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
BEARING (20X34X17.5)
09263-20085
|
$83.38 | ||
|
Unavailable |
|||
|
#9
SEAL, OIL (20X31.2X2.7)
09285-20006
|
$8.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BUSH, 5TH DRIVE GEAR
09301-28001
|
$21.68 | ||
|
Available to order. Add to View Price |
|||
|
#11
CIRCLIP, 5TH DRIVE
09380-27001
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP, 6TH DRIVE
09380-27001
|
$2.59 | ||
|
Unavailable |
|||
|
#13
CIRCLIP, 2ND DRIVE
09380-27004
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#14
C RING
09390-62012
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, CNTR LH
04221-07209
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT, DRIVE
24131-33E00
|
$206.61 | ||
|
Unavailable |
|||
|
#17
GEAR, 1ST DRIVEN (NT:43)
24311-33E00
|
$110.26 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR, 1ST DRIVEN (NT:43)
24311-17E01
|
$119.26 | ||
|
Unavailable |
|||
|
#18
GEAR, 2ND DRIVEN (NT:35)
24321-33E00
|
$98.54 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 2ND DRIVEN (NT:39)
24321-34E00
|
$330.44 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, 3RD DRIVEN (NT:33)
24331-33E01
|
$110.26 | ||
|
Unavailable |
|||
|
#19
GEAR, 3RD DRIVEN (NT:33)
24331-34E00
|
$218.34 | ||
|
Unavailable |
|||
|
#20
BUSH, 3RD DRIVEN GEAR
24332-17E10
|
$28.21 | ||
|
Unavailable |
|||
|
#21
BUSH, 4TH DRIVEN GEAR
24332-17E10
|
$28.21 | ||
|
Unavailable |
|||
|
#22
GEAR, 4TH DRIVEN (NT:30)
24341-33E01
|
$120.96 | ||
|
Unavailable |
|||
|
#22
GEAR, 4TH DRIVEN (NT:30)
24341-34E00
|
$228.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 5TH DRIVEN (NT:27)
24351-33E10
|
$78.06 | ||
|
Unavailable |
|||
|
#23
GEAR, 5TH DRIVEN (NT:27)
24351-34E00
|
$114.06 | ||
|
Unavailable |
|||
|
#24
GEAR, 6TH DRIVEN (NT:26)
24361-33E10
|
$120.96 | ||
|
Unavailable |
|||
|
#24
GEAR, 6TH DRIVEN (NT:26)
24361-34E00
|
$172.91 | ||
|
Unavailable |
|||
|
#25
WASHER, 3RD & 4TH DRIVEN
09167-27002
|
$4.32 | ||
|
Unavailable |
|||
|
#26
BEARING, DRIVE SHAFT,LH
09262-28025
|
$163.70 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING (20X34X20)
09263-20040
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SEAL, DRIVE SHAFT,OIL
09283-36008
|
$26.70 | ||
|
Available to order. Add to View Price |
|||
|
#29
BUSH, 1ST DRIVEN GEAR
09300-22008
|
$16.04 | ||
|
Available to order. Add to View Price |
|||
|
#30
BUSH, 2ND DRIVEN GEAR
09300-28003
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#31
CIRCLIP, 2ND DRIVEN GEAR
09380-27001
|
$2.59 | ||
|
Unavailable |
|||
|
#32
CIRCLIP, 3RD DRIVEN GEAR
09380-27001
|
$2.59 | ||
|
Unavailable |
|||
|
#33
CIRCLIP, 4TH DRIVEN GEAR
09380-27001
|
$2.59 | ||
|
Unavailable |
|||
|
#34
C RING (67.6X75X2)
09390-70001
|
$10.62 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, DRIVE SHAFT,RH
04221-07209
|
$2.51 | ||
|
Unavailable |
|||
|
#36
WASHER, 1ST RH (20X34X1.0)
09181-20251
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, 1ST LH (22X34X1.0)
09181-22223
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, 2ND (28X38X1.0)
09181-28195
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#39
RETAINER, DRIVE SHAFT
24751-33E10
|
$3.71 | ||
|
Unavailable |
|||
|
#40
BOLT
01500-06123
Superseded by 01500-0612A
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPROCKET, ENGINE (NT:16)
27510-20A10
|
$82.08 | ||
|
Available to order. Add to View Price |
|||
|
#42
SPACER, ENGINE SPROCKET
27531-33E00
|
$20.89 | ||
|
Unavailable |
|||
|
#43
CHAIN ASSY,DRIV
27600-32C10-108
Superseded by 27600-32C90-108
|
$233.38 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT, ENGINE SPROCKET
09159-20004
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER (25X41X3)
09160-25009
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
