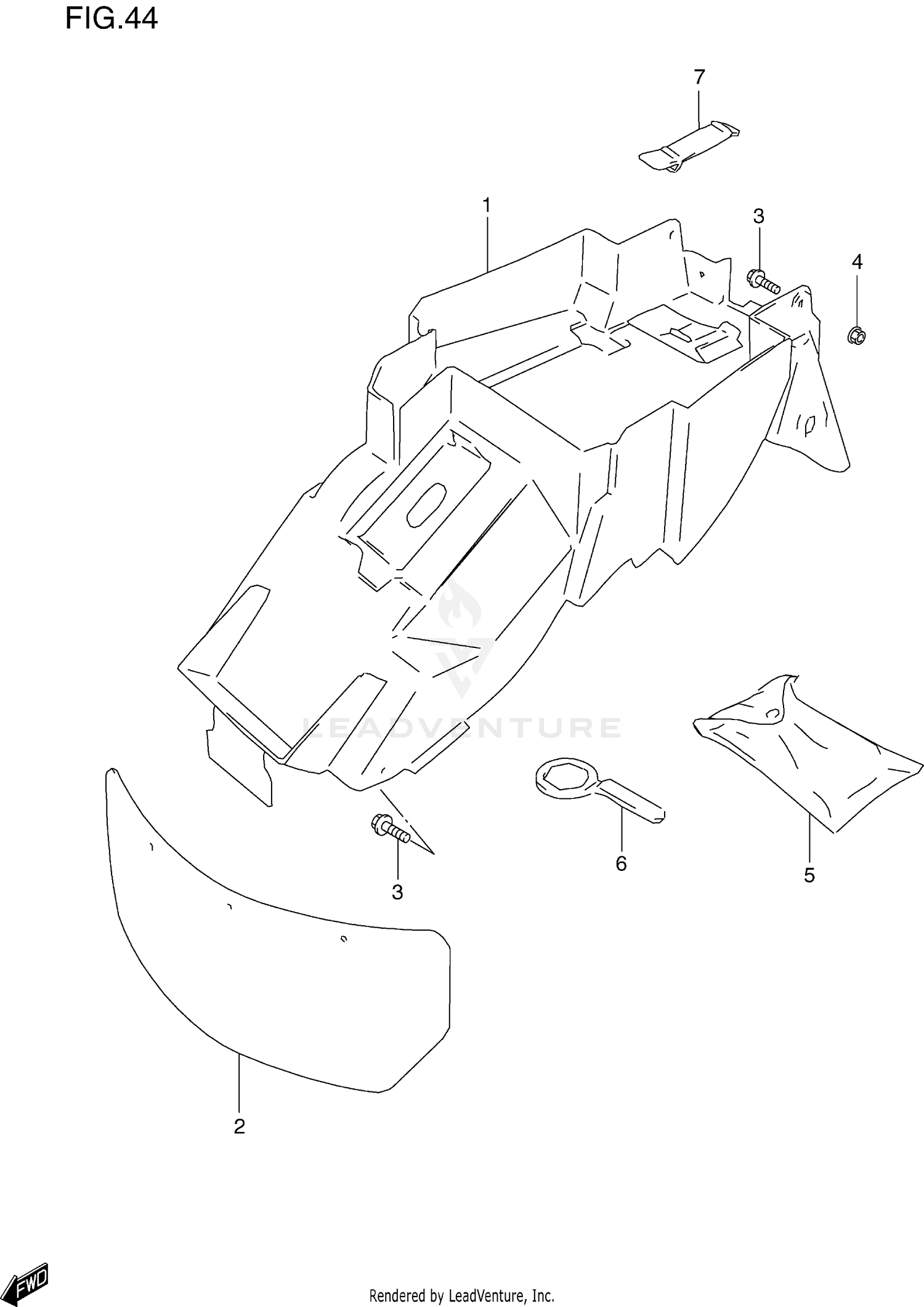

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, REAR
63110-33E30
|
$175.73 | ||
|
Unavailable |
|||
|
#1
FENDER, REAR
63110-33ED0
|
$174.05 | ||
|
Unavailable |
|||
|
#2
MUD GUARD, FRONT
63411-34E00
|
$14.73 | ||
|
Unavailable |
|||
|
#3
BOLT
09111-06066
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
08316-10063
Superseded by 08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
TOOL ASSY
09800-21008
Superseded by 09800-21065
|
$81.23 | ||
|
Unavailable |
|||
|
#5
TOOL ASSY
09800-21039
Superseded by 09800-21089
|
$88.41 | ||
|
Unavailable |
|||
|
#6
RING SPANNER, 36
09817-00034
|
$26.65 | ||
|
Available to order. Add to View Price |
|||
|
#7
BAND
09462-00072
Superseded by 09462-00094
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
