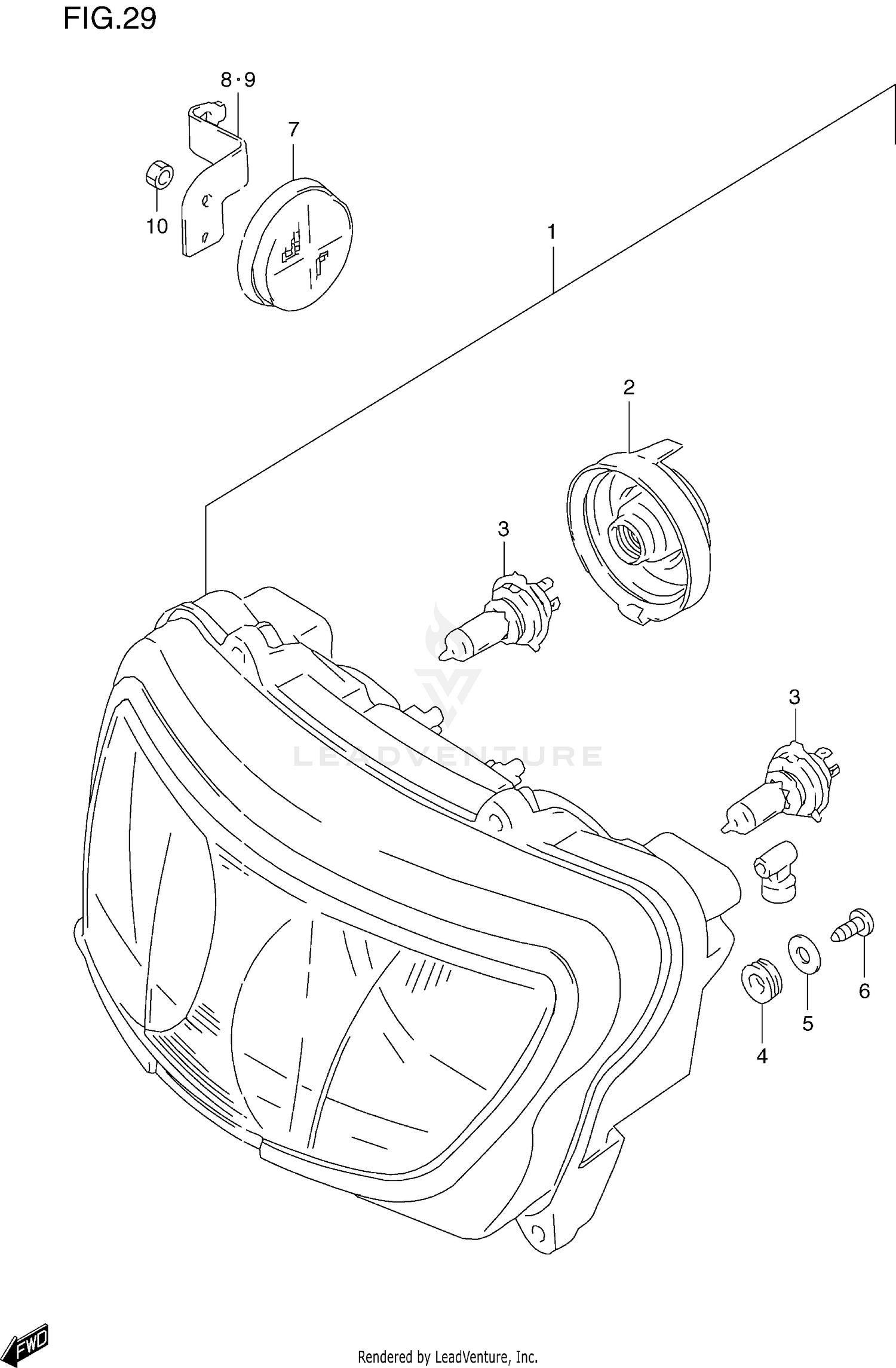

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-33E02-999
|
$451.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SOCKET
35125-74F00
|
$19.52 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (12V,55/50W)
09471-12163
|
$79.45 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION, HEADLAMP
35137-33E00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
.WASHER (5.5X18X1)
09160-05003
Superseded by 09160-05045
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
.WASHER (5.5X18X1)
09160-05045
|
$2.43 | ||
|
Unavailable |
|||
|
#6
SCREW
03511-05163
Superseded by 03511-0516A
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
REFLEX-REFLECTOR ASSY
35950-14A00
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, FRONT SIDE RR RH
35956-17D00
|
$6.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, FRONT SIDE RR LH
35957-17D00
|
$7.57 | ||
|
Available to order. Add to View Price |
|||
|
#10
.NUT
08310-00053
Superseded by 08310-0005A
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
