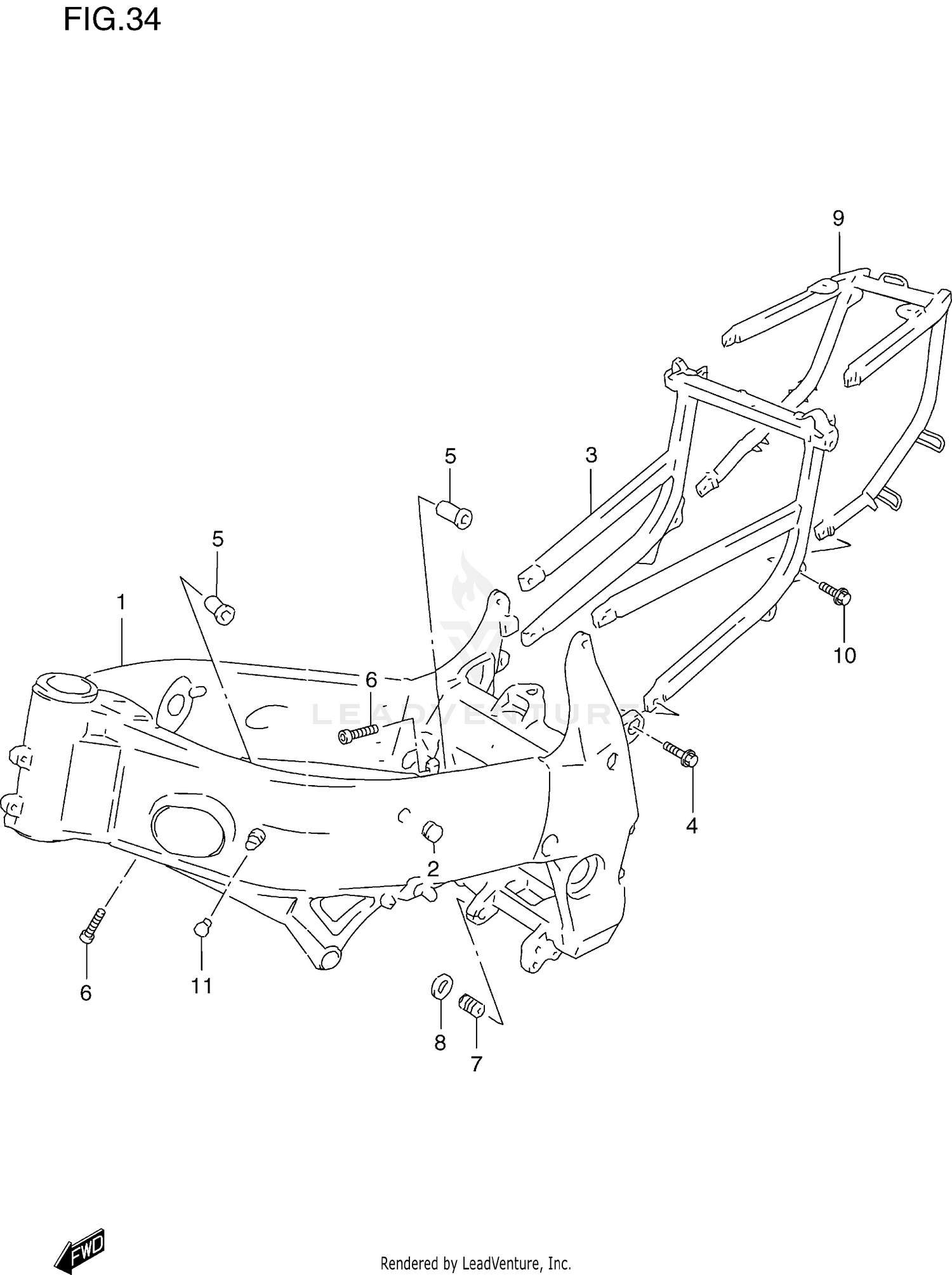

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
41100-34E00
|
$2,259.25 | ||
|
Unavailable |
|||
|
#1
FRAME
41100-34E10
|
$2,501.80 | ||
|
Unavailable |
|||
|
#2
CAP,TANK RAIL
43585-33E00
Superseded by 43585-33E01
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
RAIL, SEAT
41200-33E00
Superseded by 41200-33E20
|
$920.21 | ||
|
Available to order. Add to View Price |
|||
|
#3
RAIL, SEAT
41200-33E20
|
$920.21 | ||
|
Unavailable |
|||
|
#4
BOLT (10X30)
59199-33E00
Superseded by 09103-10296
|
$8.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (10X30)
09103-10296
|
$8.48 | ||
|
Unavailable |
|||
|
#5
SPACER, ENGINE MOUNT
41911-33E00
Superseded by 41911-40F01
|
$29.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, STEERING DAMPER
07130-08303
Superseded by 07130-0830A
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CRANKCASE ADJUST
41921-33E10
Superseded by 41921-33E11
|
$55.79 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CRANKCASE ADJUST
41921-33E11
|
$55.79 | ||
|
Unavailable |
|||
|
#8
NUT, CRANK CASE ADJUST
41922-33E10
Superseded by 41922-33E30
|
$24.81 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRIP, REAR
43980-33E00
Superseded by 43980-33E20
|
$447.69 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRIP, REAR
43980-33E20
|
$447.69 | ||
|
Unavailable |
|||
|
#10
BOLT (8X20)
01550-08203
Superseded by 01550-0820A
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG
09250-06001
Superseded by 09250-06005
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
