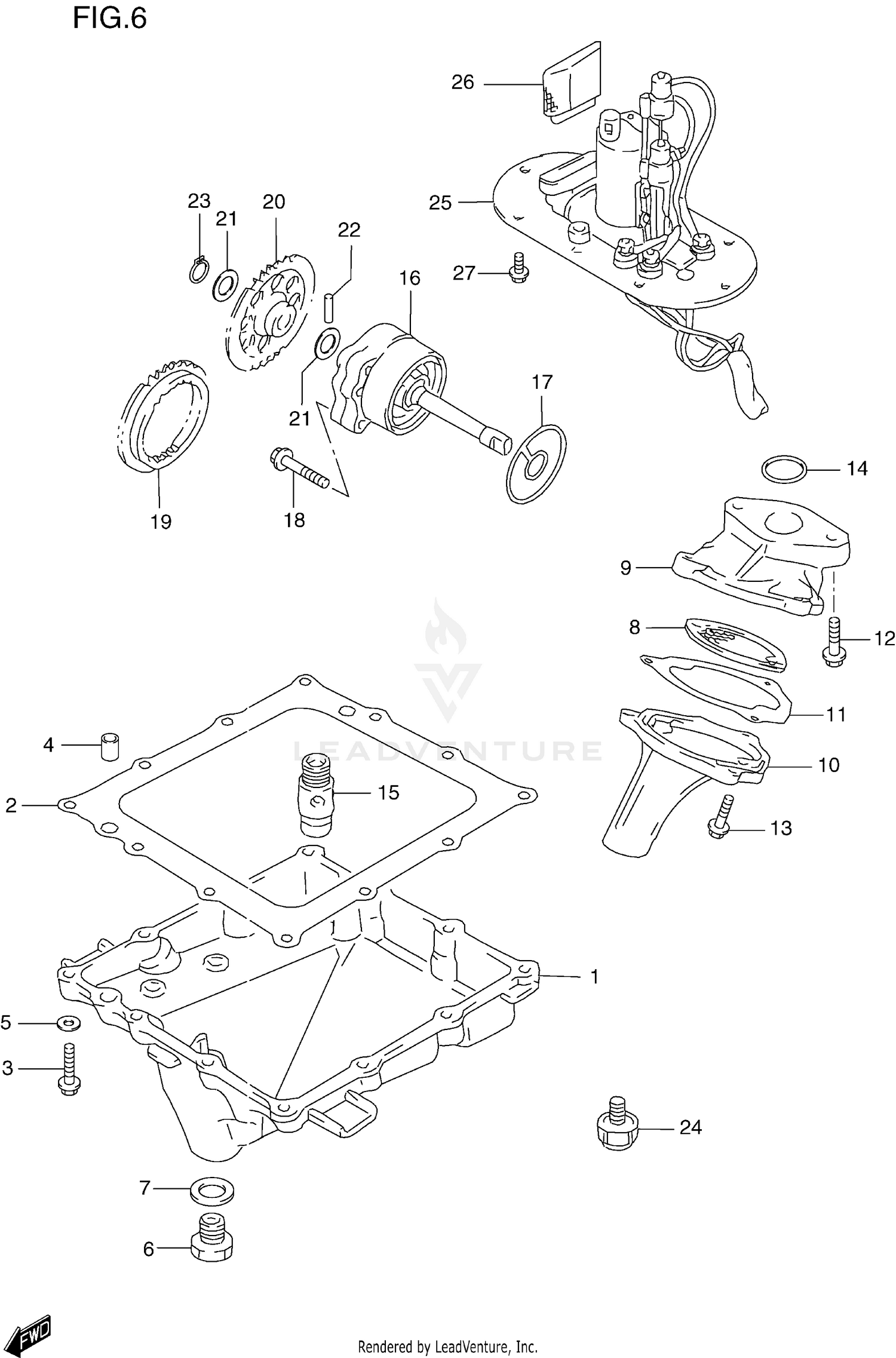

Oil Pan - Oil Pump - Fuel Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAN, OIL
11511-33E00
|
$241.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, OIL PAN
11489-33E00
|
$23.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FINAL GEAR CASE
01547-06303
Superseded by 01547-0630B
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
04211-09189
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET (5.8X11X1.2)
09168-06024
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PLUG (MAGNETO)
09247-14001
Superseded by 09247-14002
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#7
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#8
STRAINER, ENGINE OIL
16520-37400
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#9
PROTECTOR
16525-33E00
|
$24.35 | ||
|
Unavailable |
|||
|
#10
COVER, STRAINER
16526-33E00
|
$22.83 | ||
|
Unavailable |
|||
|
#11
GASKET
16527-33E00
|
$7.20 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
BOLT
01550-06253
Superseded by 01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (D:2.62,ID:20.3)
09280-19008
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
VALVE ASSY, OIL RELIEF
16440-33E00
|
$58.42 | ||
|
Available to order. Add to View Price |
|||
|
#16
PUMP ASSY, ENGINE OIL
16400-33E00
|
$193.61 | ||
|
Unavailable |
|||
|
#17
O-RING
16491-33E00
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
01550-06303
Superseded by 01550-0630A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR,OIL PUMP DRIVE (NT:34)
16321-33E00
Superseded by 16321-33E10
|
$76.88 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR,OIL PUMP DRIVE (NT:34)
16321-33E10
|
$76.88 | ||
|
Unavailable |
|||
|
#20
GEAR, OIL PUMP DRIVEN (NT:37)
16332-19C00
|
$83.31 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR,OIL PUMP DRIVEN (NT:37)
16331-33E00
|
$84.26 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
08221-12205
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (12X20X0.5)
09181-12158
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN
09261-05006
|
$1.84 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
08331-31126
Superseded by 08331-3112A
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SWITCH ASSY,OIL PRESSURE
37820-33D00
Superseded by 37820-33D11
|
$27.59 | ||
|
Available to order. Add to View Price |
|||
|
#25
PUMP ASSY, FUEL
15100-33E00
Superseded by 15100-34E00
|
$828.78 | ||
|
Available to order. Add to View Price |
|||
|
#25
PUMP ASSY, FUEL
15100-34E00
|
$828.78 | ||
|
Unavailable |
|||
|
#26
STRAINER, FUEL PUMP
15170-33E00
Superseded by 15170-34E00
|
$72.28 | ||
|
Available to order. Add to View Price |
|||
|
#26
STRAINER, FUEL PUMP
15170-34E00
|
$72.28 | ||
|
Unavailable |
|||
|
#27
BOLT
01570-05103
Superseded by 01570-0510B
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
15211-02F00
Superseded by 09103-05017
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
