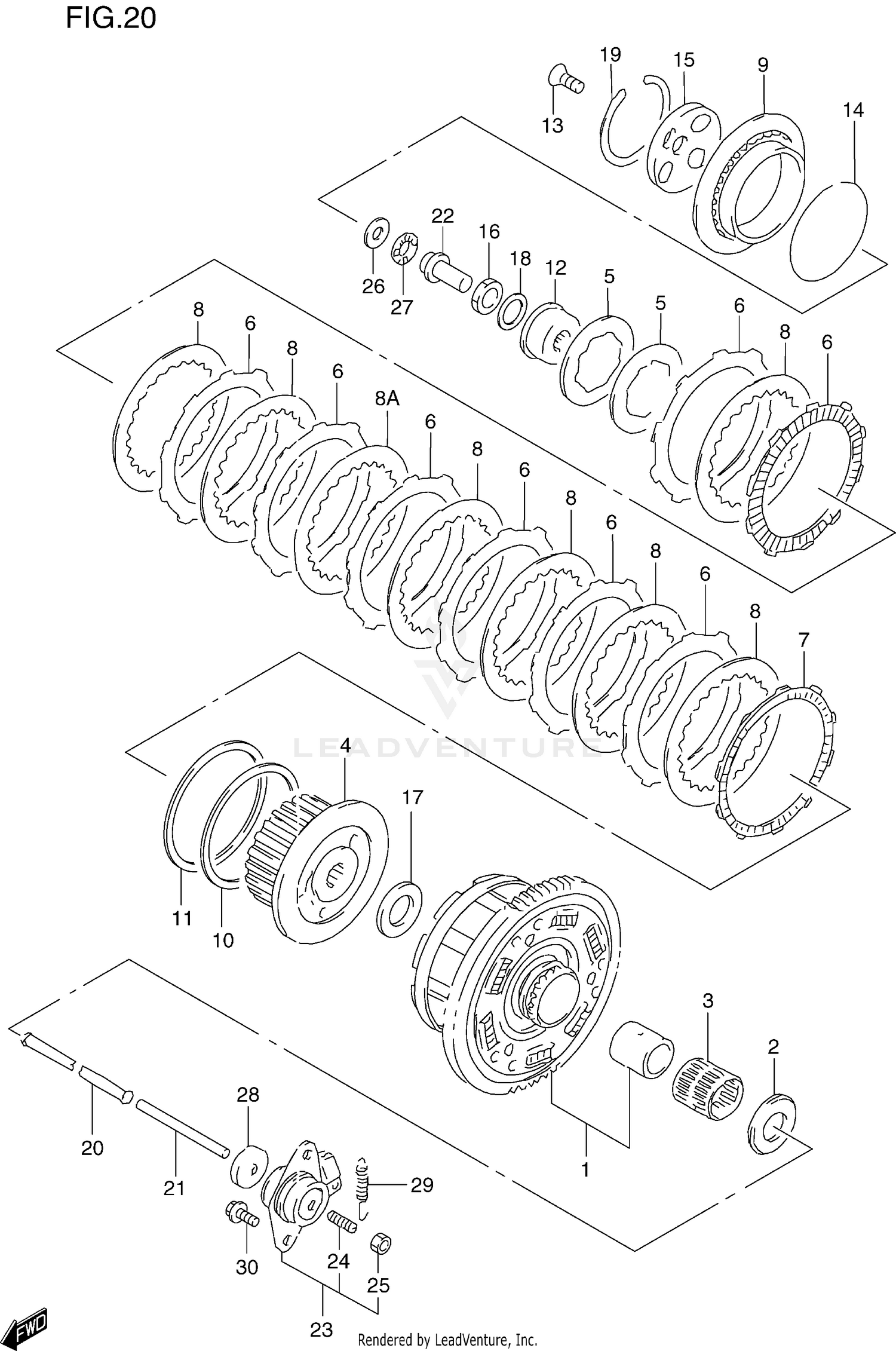

Clutch (model V/w) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR ASSY, PRIMARY DRIVEN
21200-31880
Superseded by 21200-31890
|
$331.33 | ||
|
Unavailable |
|||
|
#1
GEAR ASSY, PRIMARY DRIVEN
21201-31810
|
$335.87 | ||
|
Unavailable |
|||
|
#2
WASHER (25.1X54X2.5)
09160-25037
|
$9.63 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING (35X40X35.8)
09263-35017
|
$51.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
HUB, CLUTCH SLEEVE
21410-31E40
|
$99.05 | ||
|
Unavailable |
|||
|
#5
SPRING, CLUTCH
21413-31E40
|
$10.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH DRIVE NO.1
21441-31E20
Superseded by 21441-31E50
|
$30.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH DRIVE,NO.1
21441-31E50
|
$30.41 | ||
|
Unavailable |
|||
|
#7
PLATE, CLUTCH DRIVE,NO.2
21442-31E00
|
$44.29 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH DRIVE NO.3
21442-31E20
Superseded by 21442-31E21
|
$42.84 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, CLUTCH DRIVEN,NO.1
21451-31E00
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#8A
PLATE, CLUTCH DRIVEN,NO.2
21451-31E10
|
$14.56 | ||
|
Available to order. Add to View Price |
|||
|
#9
DISK, CLUTCH PRESSURE
21462-31E40
|
$46.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
DISK, CLUTCH PRESSURE
21462-31E60
Superseded by 21462-31E40
|
$46.62 | ||
|
Unavailable |
|||
|
#10
SEAT, CLUTCH PLATE
21471-31E20
|
$18.86 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, CLUTCH PLATE
21472-31E20
|
$14.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, CLUTCH PLATE
21472-31E01
|
$20.04 | ||
|
Available to order. Add to View Price |
|||
|
#12
HOLDER, CLUTCH SPRING
21611-31E20
|
$40.74 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, CLUTCH SPRING
21614-31E20
|
$3.14 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT, CLUTCH SPRING
21623-31E20
|
$6.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
LIFTER, CLUTCH RELEASE
21463-40C01
|
$52.44 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, CLUTCH SLEEVE HUB
09159-24010
|
$16.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
WASHER, CLUTCH SLEEVE THR
08211-25505
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (24.2X35X2)
09164-24006
|
$4.74 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP, CLUTCH PRESSURE
09381-84002
Superseded by 09381-84003
|
$13.29 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROD, CLUTCH PUSH RH
23110-27A00
|
$28.00 | ||
|
Available to order. Add to View Price |
|||
|
#21
ROD, CLUTCH PUSH LH
23111-34C00
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIECE, PUSH
23121-31E10
Superseded by 23121-31E00
|
$31.77 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW ASSY,CLUTCH RELEASE
23200-20C00
|
$69.34 | ||
|
Available to order. Add to View Price |
|||
|
#24
.SCREW (6X25)
09134-06010
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#25
.NUT
08310-00067
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
WASHER, CLUTCH PUSH
09160-15045
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING, CLUTCH PUSH
09263-15003
|
$10.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
OIL SEAL (6X34X5.5)
09285-06015
|
$10.01 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#29
SPRING, CLUTCH RELEASE
09443-09044
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
