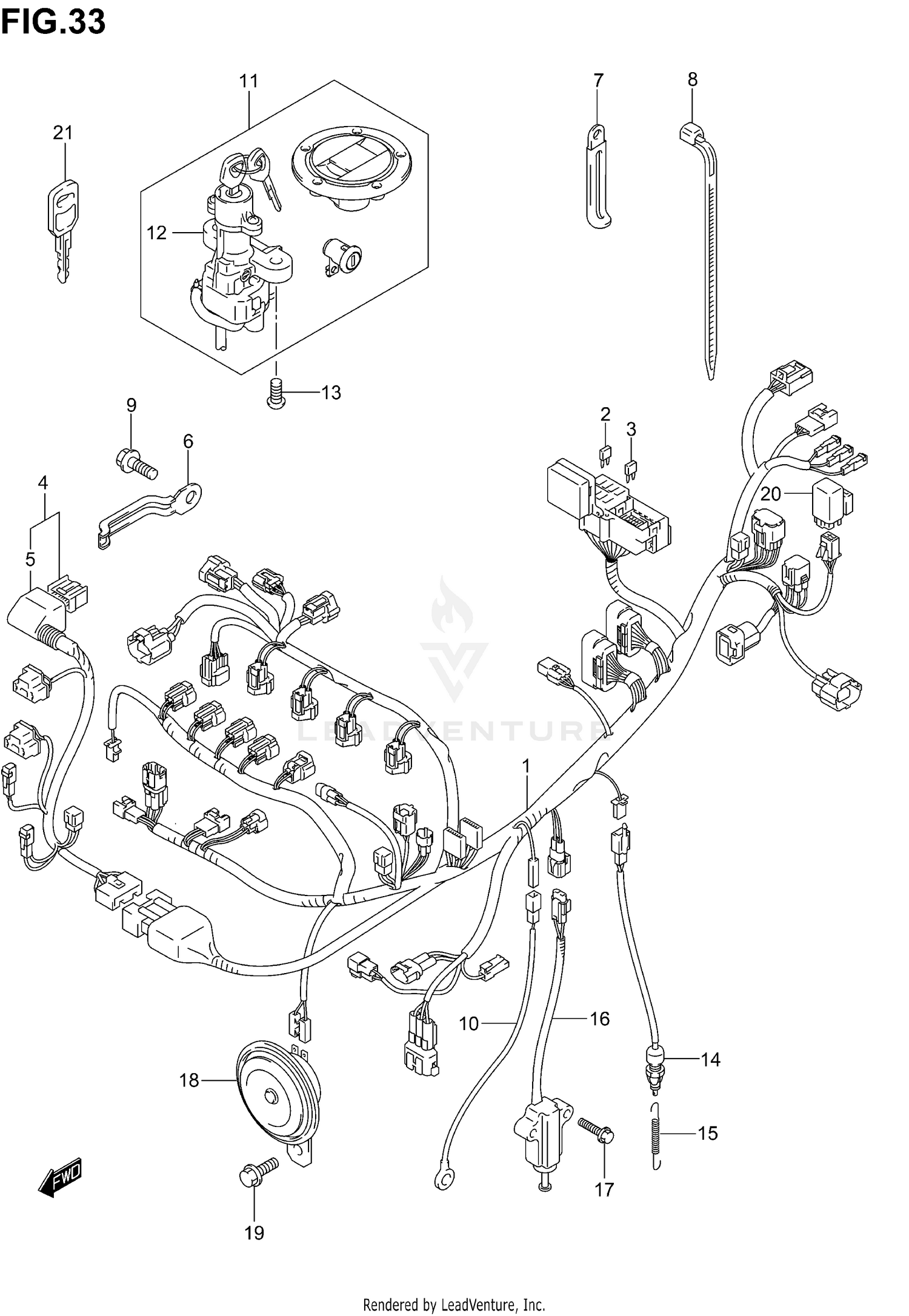

Wiring Harness Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, WIRING NO.1
36610-29G30
|
$722.00 | ||
|
Available to order. Add to View Price |
|||
|
#1
HARNESS, WIRING NO.1
36610-29G80
|
$924.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE (10A)
09481-10501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#3
FUSE (15A)
09481-15501
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
HARNESS, WIRING NO.2
36620-29G30
|
$255.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, SPEEDOMETER
36618-35F00
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
09403-06322
Superseded by 09403-06328
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#8
CLAMP (L:95)
09407-11401
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
WIRE, OIL PRESSURE LEAD
36851-35F00
|
$18.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK SET
37101-16840
|
$369.66 | ||
|
Available to order. Add to View Price |
|||
|
#11
LOCK SET
37101-16850
|
$396.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOCK ASSY,STEER
37100-29G00
Superseded by 37100-29G11
|
$225.16 | ||
|
Unavailable |
|||
|
#13
SCREW
09139-08016
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#14
SWITCH ASSY, STOP LAMP
37740-45D00
|
$20.62 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING
09443-06042
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
SWITCH ASSY,SID
37840-35F10
Superseded by 37840-35F12
|
$97.02 | ||
|
Unavailable |
|||
|
#17
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
HORN ASSY
38500-18G00
Superseded by 38500-18G01
|
$80.73 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT (8X16)
01550-08163
Superseded by 01550-0816A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#20
RELAY ASSY, FUEL PUMP
38740-24X50
|
$58.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
KEY, BLANK
37146-33E00
|
$27.38 | ||
|
Available to order. Add to View Price |
|||
