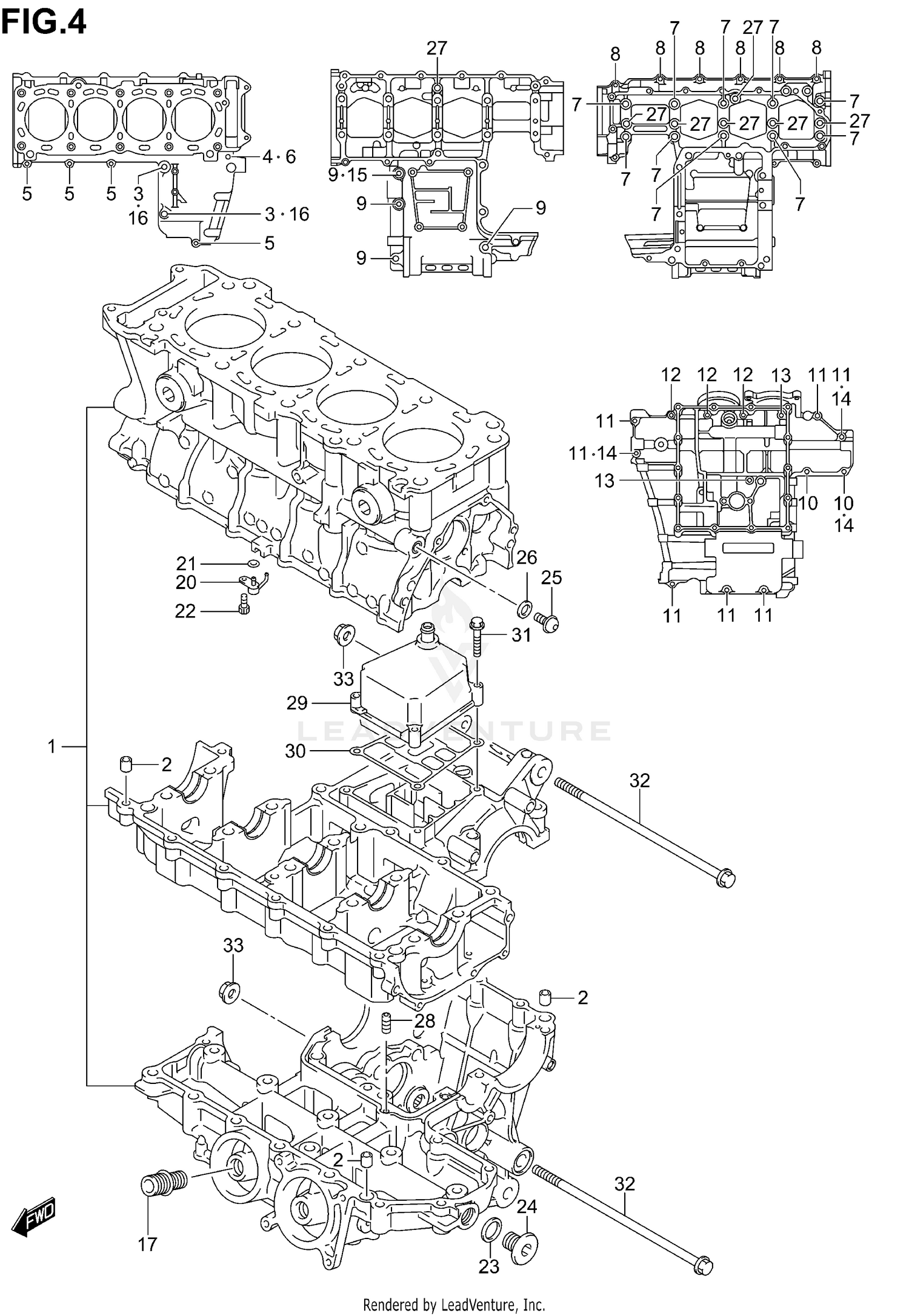

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11301-29860
Superseded by 11301-29861
|
$2,987.60 | ||
|
Available to order. Add to View Price |
|||
|
#1
CRANKCASE SET
11301-29861
|
$2,987.60 | ||
|
Unavailable |
|||
|
#2
PIN,CRANKCASE
11319-33E50
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (8X120)
09106-08139
|
$14.63 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
BOLT, WATER PUMP
01547-06353
Superseded by 01547-0635B
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01547-06803
Superseded by 01547-0680B
|
$4.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT (9X95)
09103-09012
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
01547-06403
Superseded by 01547-0640B
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
07120-08653
Superseded by 07120-0865B
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FINAL GEAR CASE
01547-06303
Superseded by 01547-0630B
|
$3.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT
01547-06403
Superseded by 01547-0640B
|
$3.40 | ||
|
Unavailable |
|||
|
#12
BOLT
01547-06603
Superseded by 01547-0660B
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01547-06703
Superseded by 01547-0670B
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
Unavailable |
|||
|
#15
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
Unavailable |
|||
|
#17
UNION,OIL STAND
16591-06B00
Superseded by 16591-06B01
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING, THRUST RH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
BEARING, THRUST LH (RED)
12228-17E00-0A0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, THRUST LH (BLACK)
12228-17E00-0B0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, THRUST LH (BLUE)
12228-17E00-0C0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
BEARING, THRUST LH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
Unavailable |
|||
|
#19
.BEARING, CRANK THRUST
12228-17E00-0E0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#19
.BEARING, CRANK THRUST
12228-17E00-0F0
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#20
JET,PISTON COOLING
11390-35F00
|
$32.26 | ||
|
Available to order. Add to View Price |
|||
|
#21
O RING (D:1.2,ID:4)
09280-04004
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, PISTON COOLING
09106-06075
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET
09168-16002
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLUG, OIL GALLERY
09248-16013
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLUG, OIL GALLERY UPPER LH
09248-10010
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET, OIL GALLERY
09168-10002
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
O RING (D:1.9,ID:7.8)
09280-08012
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#28
JET,140 (#140)
09493-28012
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, BREATHER
11370-35F00
|
$78.11 | ||
|
Unavailable |
|||
|
#30
GASKET,BREATHER COVER
11484-35F00
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FINAL GEAR CASE
01547-06303
Superseded by 01547-0630B
|
$3.38 | ||
|
Unavailable |
|||
|
#32
BOLT (10X215)
09103-10041
Superseded by 09103-10041-A05
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
