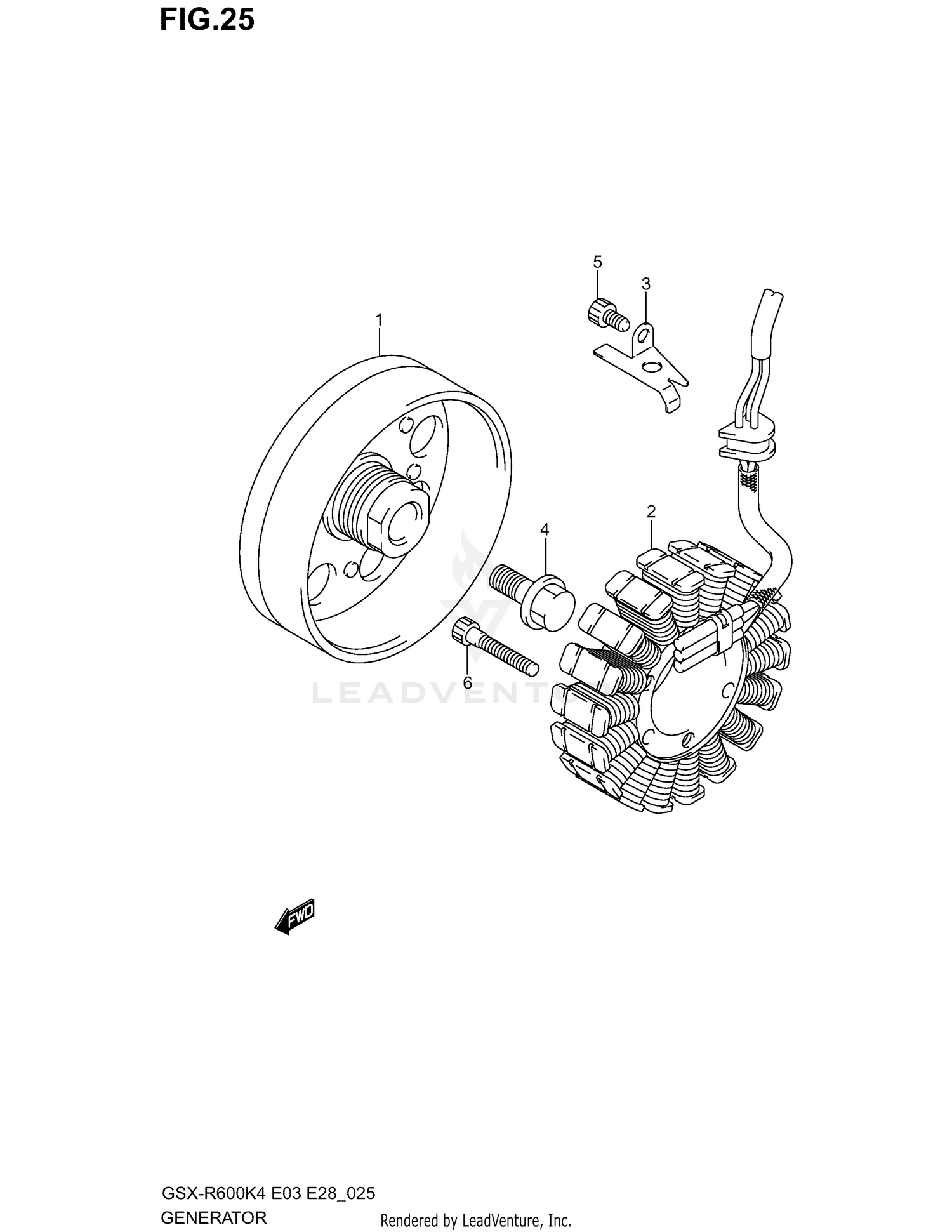

Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROTOR ASSY
31402-29G00
|
$686.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
STATOR ASSY
31401-29G00
|
$443.29 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP,MAGNETO LEAD
32371-33E00
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (12X23)
09103-12005
|
$7.67 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
07130-06123
Superseded by 07130-0612A
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
07130-06353
Superseded by 07130-0635B
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
