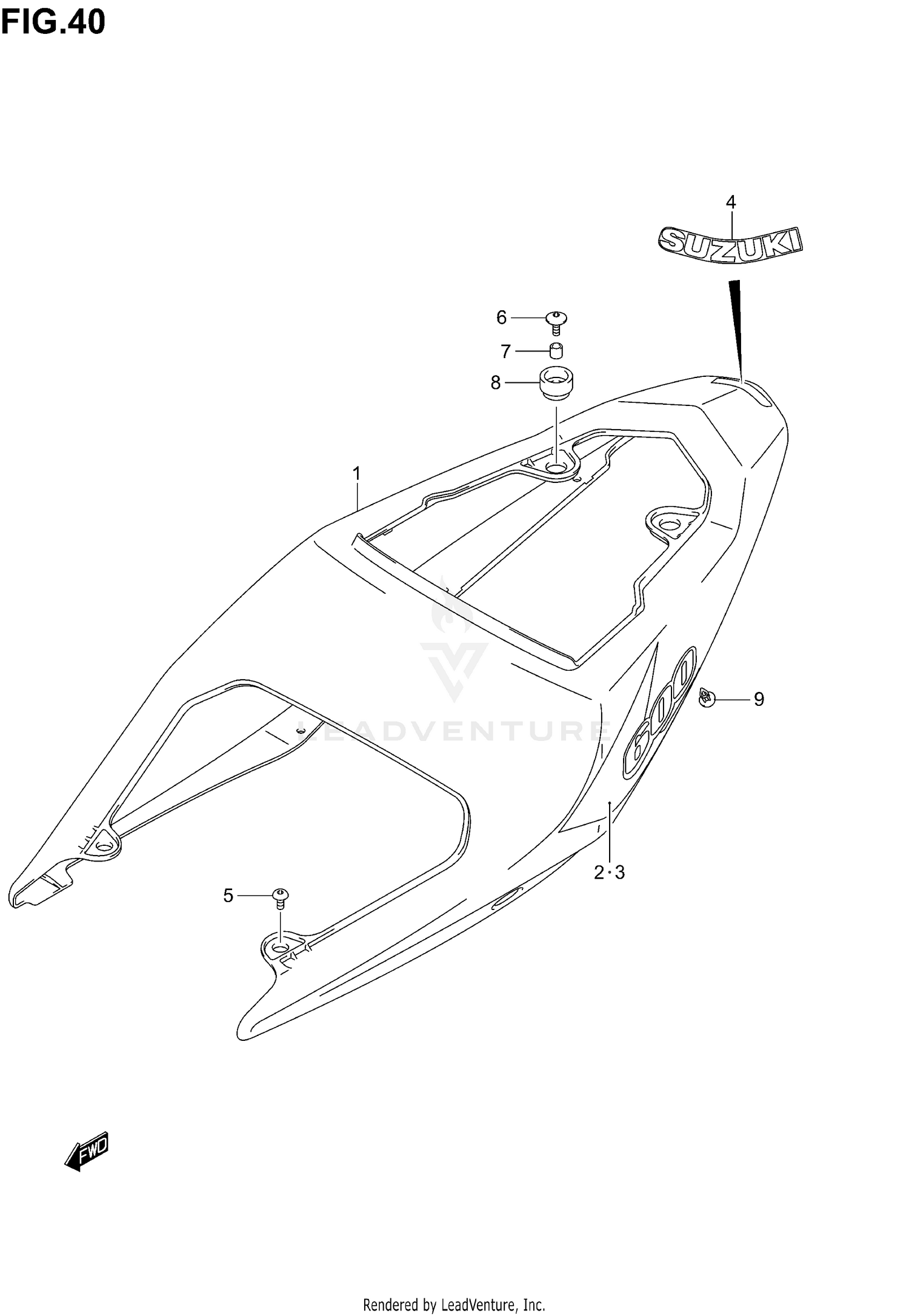

Frame Cover (model K4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, FRAME (WHITE)
47100-29G00-YBD
|
$1,303.17 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER,FRAME
47100-29G00-YEC
Superseded by 47110-29G00
|
$253.81 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER,FRAME
47100-29G00-019
Superseded by 47110-29G00
|
$253.81 | ||
|
Unavailable |
|||
|
#2
TAPE, RH
68135-29G00-AVG
|
$53.07 | ||
|
Unavailable |
|||
|
#2
TAPE, RH
68135-29G00-AVH
|
$70.77 | ||
|
Available to order. Add to View Price |
|||
|
#2
TAPE, RH
68135-29G00-ATK
|
$54.16 | ||
|
Unavailable |
|||
|
#3
TAPE, LH
68145-29G00-AVG
|
$50.55 | ||
|
Unavailable |
|||
|
#3
TAPE, LH
68145-29G00-AVH
|
$65.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
TAPE, FRONT LH
68145-29G00-ATK
|
$54.16 | ||
|
Unavailable |
|||
|
#4
EMBLEM,"SUZUKI"
68280-04F00-019
Superseded by 68280-04F01-019
|
$17.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
EMBLEM,"SUZUKI"
68280-04F00-YD8
Superseded by 68280-04F01-YD8
|
$15.39 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, FRONT
09139-06131
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, UPPER
09139-06030
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
09180-06286
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION, UPPER
09320-10045
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP (BLACK)
09409-06314-5PK
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
