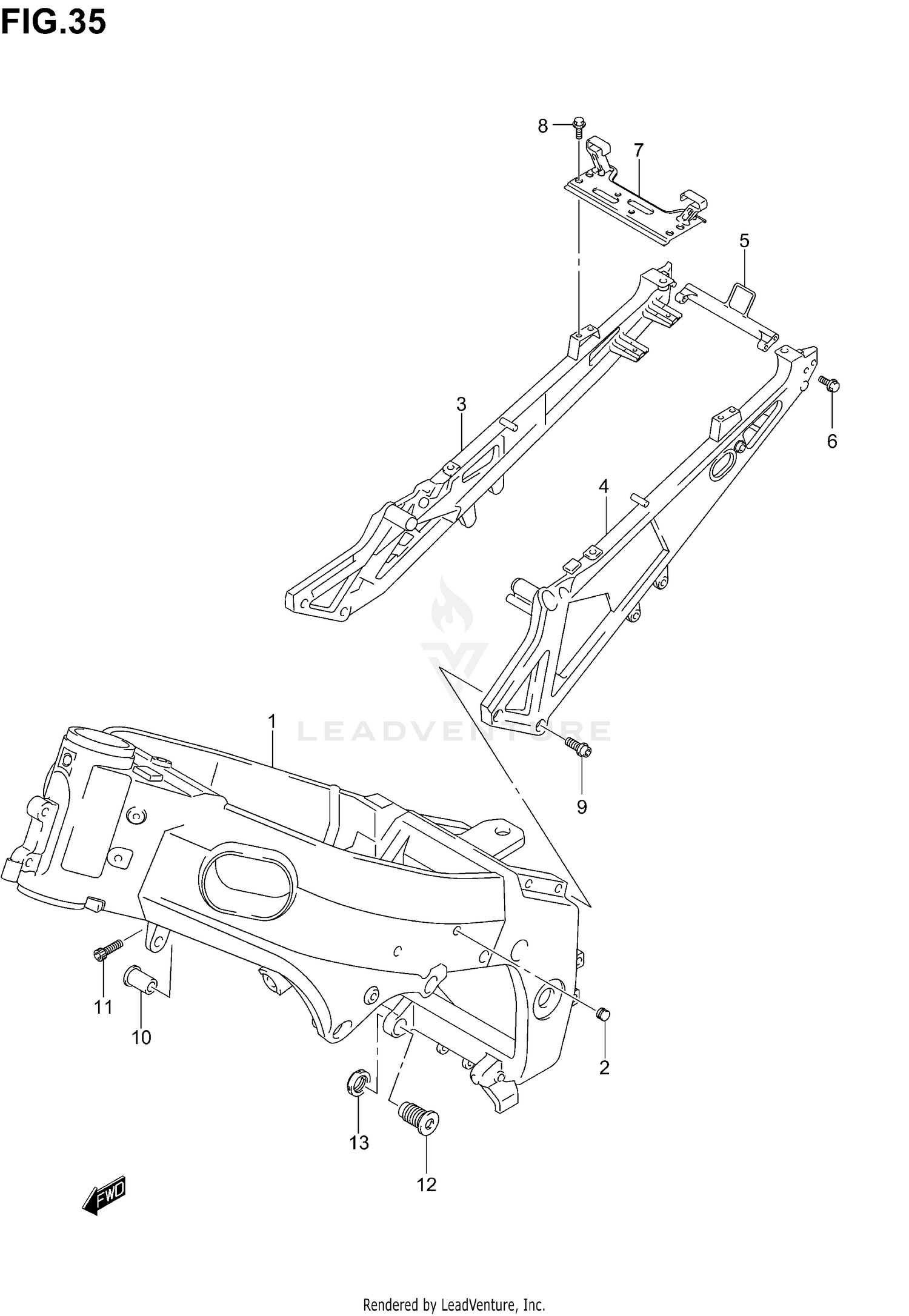

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME (BLACK)
41100-29G00-YAP
|
$3,266.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP,TANK RAIL
43585-29G00
Superseded by 43585-29G01
|
$7.16 | ||
|
Unavailable |
|||
|
#3
RAIL, SEAT RH
41211-29G00
|
$587.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
RAIL, SEAT LH
41221-29G00
|
$655.13 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOOK, PILLION SEAT
41231-29G00
|
$94.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HOOK
09103-08288
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRIDGE, SEAT RAIL
41770-29G00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (6X12)
09103-06083
Superseded by 09103-06285
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT,SEAT RAIL
41233-18G00
Superseded by 41233-18G20
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, ENGINE MOUNT
41911-40F01
|
$29.95 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, SPACER
09106-08170
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, CRANKCASE ADJUST
41921-35F00
|
$61.90 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, CRANK CASE ADJUST
41922-18G00
|
$41.46 | ||
|
Available to order. Add to View Price |
|||
