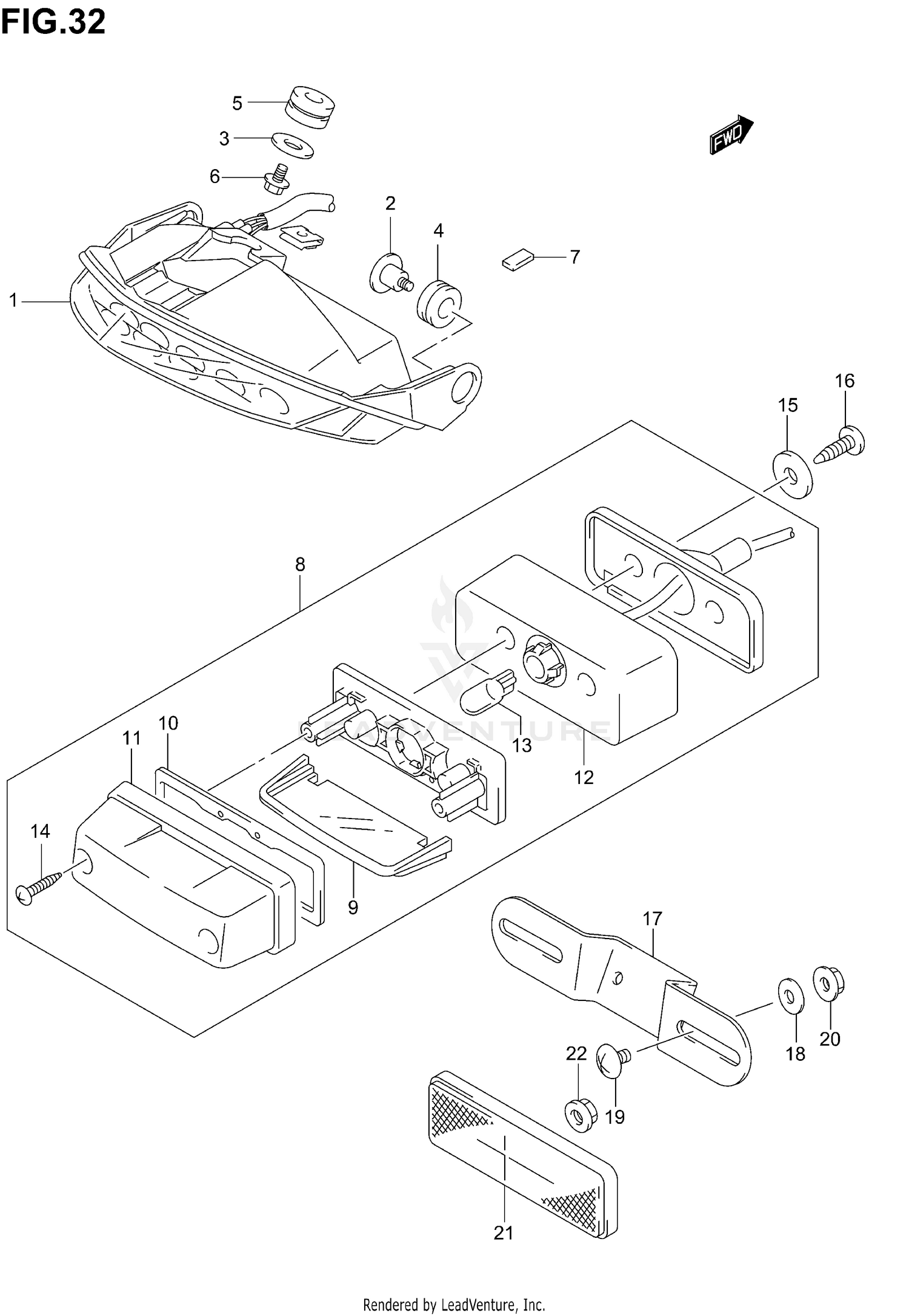

Tail Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, REAR COMBINATION
35710-29G30
|
$136.82 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, REAR COMBINATION
09139-05080
|
$3.22 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#3
WASHER (5.5X20X1.2)
09160-05501
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION
09320-10049
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION
09320-10054
Superseded by 09320-10073
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
02162-05083
Superseded by 02162-0508A
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION (170X95X3.0)
33651-37000
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
LAMP ASSY,LICENSE
35910-16G30
Superseded by 35910-16G31
|
$99.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
.LENS
35912-16G00
Superseded by 35912-16G01
|
$13.86 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
35913-16G00
|
$6.31 | ||
|
Unavailable |
|||
|
#11
COVER
35917-16G00
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER
35978-16G30
|
$7.27 | ||
|
Unavailable |
|||
|
#13
.BULB (12V5W)
09471-12216
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
03211-04163
Superseded by 03211-0416A
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09160-05501
|
$2.33 | ||
|
Unavailable |
|||
|
#16
SCREW
03541-05403
Superseded by 03541-0540B
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET, LICENSE PLATE
35927-18G00
|
$13.92 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (6.5X20X1.6)
09160-06088
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#19
.SCREW
02142-06163
Superseded by 02142-0616A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
08316-10063
Superseded by 08316-1006B
|
$3.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
REFLECTOR ASSY, RR SIDE
35970-07F00
Superseded by 35970-07F01
|
$26.95 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
08316-10053
Superseded by 08316-1005A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
