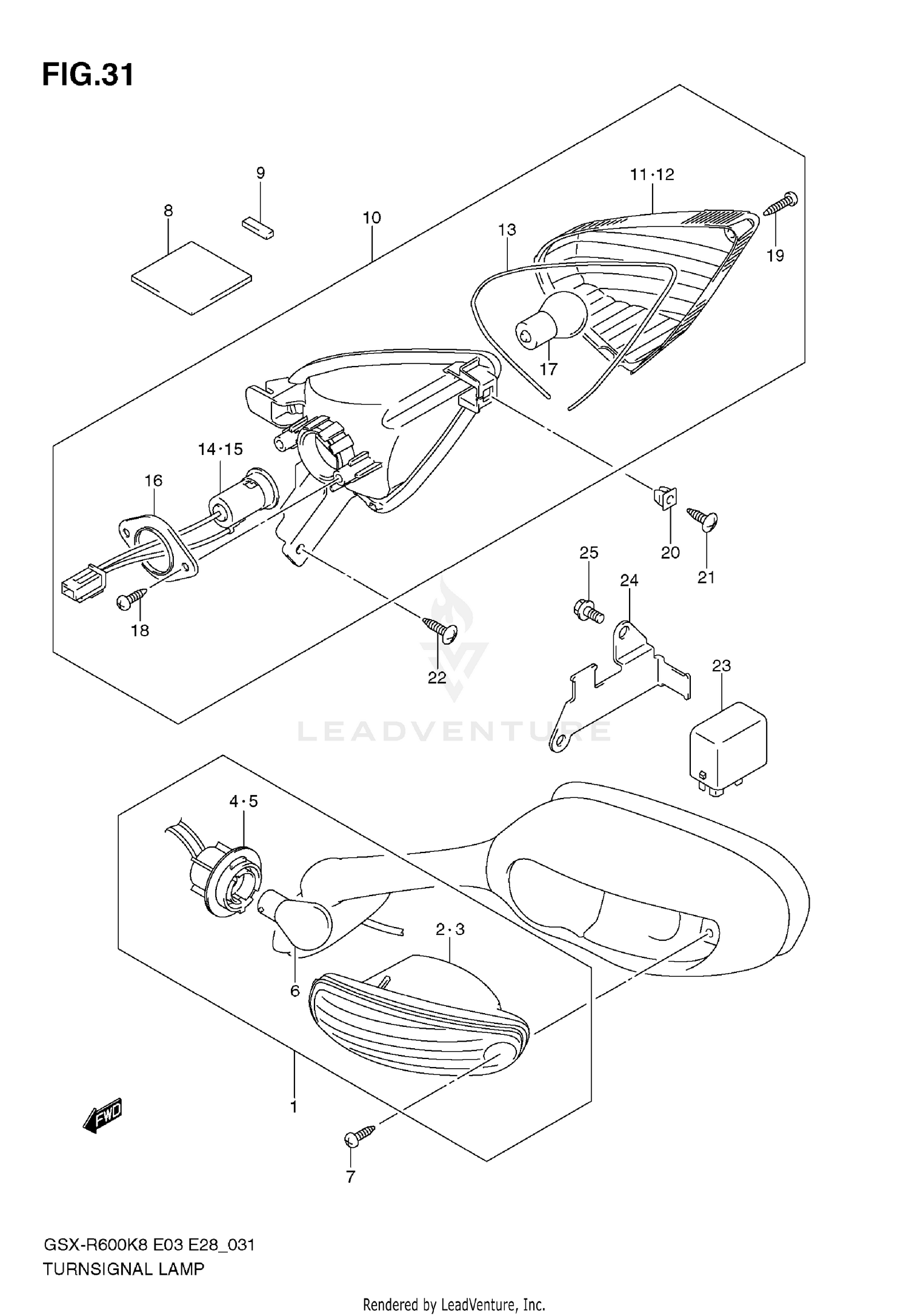

Turnsignal Lamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY,FRONT TURNSIGNAL RH
35601-41G00
|
$73.07 | ||
|
Available to order. Add to View Price |
|||
|
#1
LAMP ASSY,FRONT TURNSIGNAL LH
35602-41G00
|
$73.07 | ||
|
Available to order. Add to View Price |
|||
|
#2
.LAMP UNIT RH
35610-41G00
|
$50.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
.LAMP UNIT LH
35630-41G00
|
$49.22 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SOCKET RH
35618-10G50
|
$34.12 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SOCKET LH
35638-10G50
|
$32.87 | ||
|
Available to order. Add to View Price |
|||
|
#6
BULB (12V21W)
09471-12186
|
$16.19 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW (4X20)
09132-04032
|
$2.47 | ||
|
Available to order. Add to View Price |
|||
|
#8
TAPE, FRONT (50X50X5)
33652-20C00
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
|
#9
.TAPE,FRONT TURNSIGNAL (5X20X
94443-21H00
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#10
LAMP ASSY, REAR, R
35603-21H00
|
$99.42 | ||
|
Available to order. Add to View Price |
|||
|
#10
LAMP ASSY, REAR, L
35604-21H00
|
$107.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
LENS, R
35652-21H00
|
$29.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
LENS, L
35672-21H00
|
$36.59 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
35653-21H00
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
|
#14
.SOCKET & CORD RH
35658-41G00
|
$36.32 | ||
|
Available to order. Add to View Price |
|||
|
#15
.SOCKET & CORD LH
35678-41G00
|
$36.32 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, REAR
35716-07A30
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#17
BULB (12V21W)
09471-12186
|
$16.19 | ||
|
Unavailable |
|||
|
#18
SCREW
03211-0412A
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
03212-04169
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, REAR TURNSIGNAL
09148-04021
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, REAR
03541-0412A
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, REAR
03541-0512A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
RELAY ASSY,TURNSIGNAL LAMP
38610-03F00
Superseded by 38610-03F01
|
$115.08 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, RELAY
38621-37H00
|
$11.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, BRKT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
