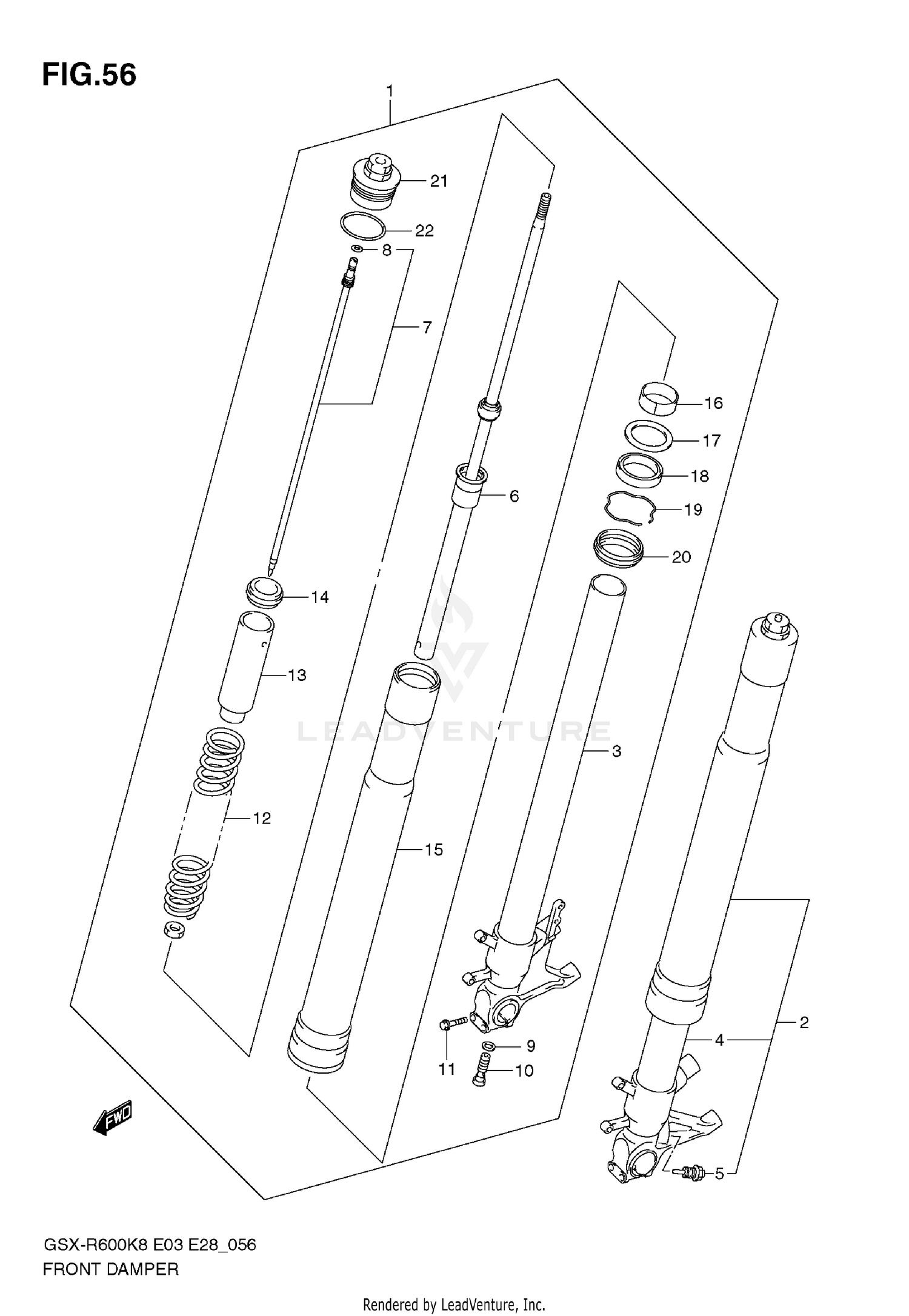

Front Damper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY, FRONT FORK RH
51103-01H10
|
$2,041.72 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER ASSY, FRONT FORK LH
51104-01H10
|
$2,041.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, INNER RH
51110-01H10
|
$713.62 | ||
|
Available to order. Add to View Price |
|||
|
#4
TUBE, INNER LH
51120-01H10
|
$546.25 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIECE, ADJUSTER LOWER
51830-01H10
|
$50.32 | ||
|
Unavailable |
|||
|
#6
ROD, DAMPER
52110-01H10
|
$717.15 | ||
|
Available to order. Add to View Price |
|||
|
#7
PUSH ROD
51821-01H00
|
$52.61 | ||
|
Available to order. Add to View Price |
|||
|
#8
O RING
09280-03002
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BOLT
51147-17C00
|
$25.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, AXLE HOLDER
51166-01H10
|
$10.78 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING
51171-01H10
|
$97.87 | ||
|
Unavailable |
|||
|
#13
SPACER, SPRING
51176-01H10
|
$16.67 | ||
|
Available to order. Add to View Price |
|||
|
#14
.GUIDE,SPRING UPR
51175-22D00
|
$22.95 | ||
|
Available to order. Add to View Price |
|||
|
#15
TUBE, OUTER
51131-01H10
|
$754.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
BUSH, GUIDE
51152-01H10
|
$23.56 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPACER, SEAL
51168-01H00
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL, OIL
51153-01H10
|
$34.74 | ||
|
Available to order. Add to View Price |
|||
|
#19
RING, STOPPER
51556-38B00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL, DUST
51173-01H00
|
$15.03 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FORK
51189-01H00
|
$174.62 | ||
|
Available to order. Add to View Price |
|||
|
#22
..O RING,FORK BOLT
51187-01H00
|
$8.77 | ||
|
Available to order. Add to View Price |
|||
