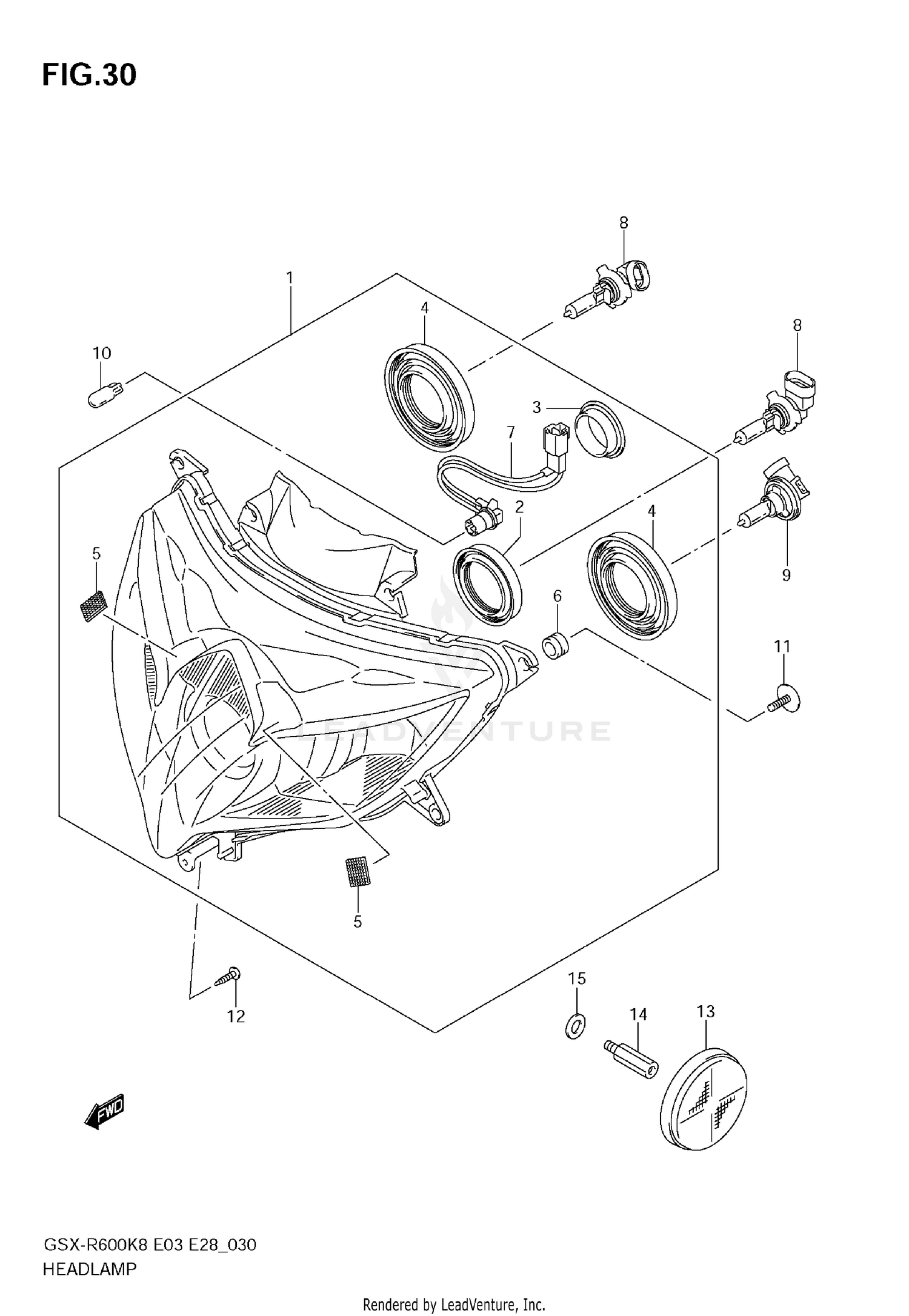

Headlamp Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-37H30-999
Superseded by 35100-37H32-999
|
$752.98 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SOCKET
35179-01H00
|
$29.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, BACK
35179-37H00
|
$26.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, SOCKET
35179-76F10
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
FASTENER, FUEL TANK
44572-37H00
|
$12.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
CUSHION (9X18X14)
09320-09039
Superseded by 09320-09059
|
$4.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
SOCKET & LEAD
36118-37H00
Superseded by 36118-37H01
|
$26.78 | ||
|
Available to order. Add to View Price |
|||
|
#8
BULB (12V60W,HB3,#9005)
09471-12151
|
$52.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
BULB (12V55W,H11)
09471-12210
|
$60.79 | ||
|
Available to order. Add to View Price |
|||
|
#10
.BULB (12V5W)
09471-12216
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, HEADLAMP
09136-05062
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEADLAMP
03541-0516B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#13
REFLEX REFLECTOR ASSY,FR SIDE
35950-14A10
Superseded by 35950-14A11
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FR SIDE
09116-06109
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER (8.5X14X1.5)
09160-08090
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
