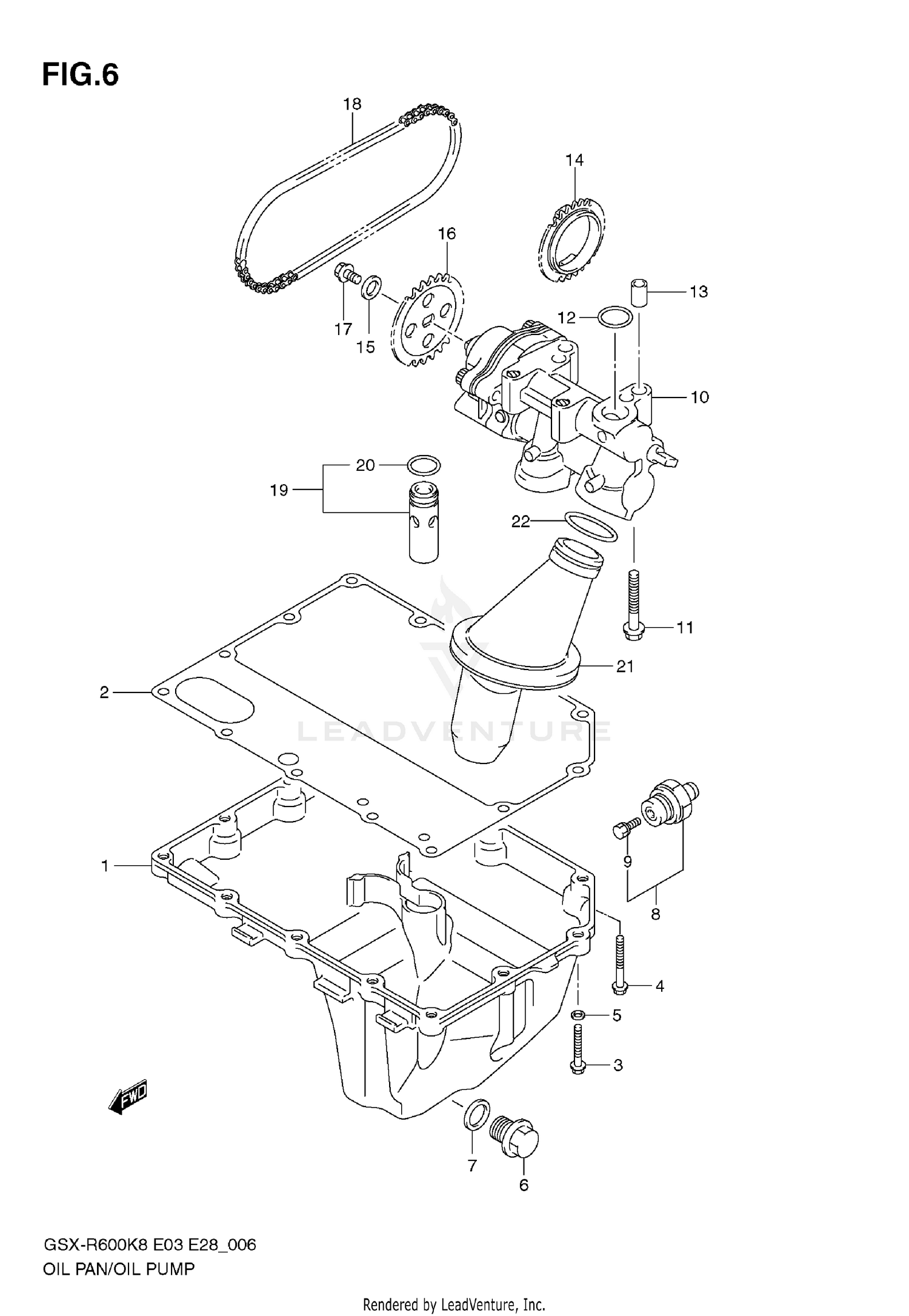

Oil Pan - Oil Pump Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PAN,OIL
11511-01H00
|
$277.04 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET
11489-01H01
|
$19.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01547-0625A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X30)
09103-06204
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
PLUG, OIL DRAIN
09247-14036
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
.GASKET (13.8X18.8X4.8)
09168-14002
|
$2.83 | ||
|
Unavailable |
|||
|
#8
SWITCH ASSY,OIL PRESSURE
37820-33D10
Superseded by 37820-33D11
|
$27.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BOLT,OIL PRESSURE SWITCH
37822-33D00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
PUMP ASSY, OIL
16400-01H00
|
$282.38 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
01547-0635A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING (D:2.4,ID:15.8)
09280-15007
|
$2.13 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
PIN
04211-09149
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPROCKET, DRIVE
16321-01H00
|
$86.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09181-10158
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPROCKET, DRIVEN
16331-01H00
|
$28.17 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (6X12)
09103-06285
|
$2.46 | ||
|
Available to order. Add to View Price |
|||
|
#18
CHAIN ASSY,OIL PUMP DRIVE
16310-01H00
|
$36.62 | ||
|
Available to order. Add to View Price |
|||
|
#19
VALVE ASSY, OIL RELIEF
16440-24F00
|
$64.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
.O RING (D:1.9,ID:13)
09280-13004
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
STRAINER, ENGINE OIL NO.1
16520-01H00
Superseded by 16520-01H01
|
$38.41 | ||
|
Available to order. Add to View Price |
|||
|
#22
O RING (D:2.4,ID:24.7)
09280-25004
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
