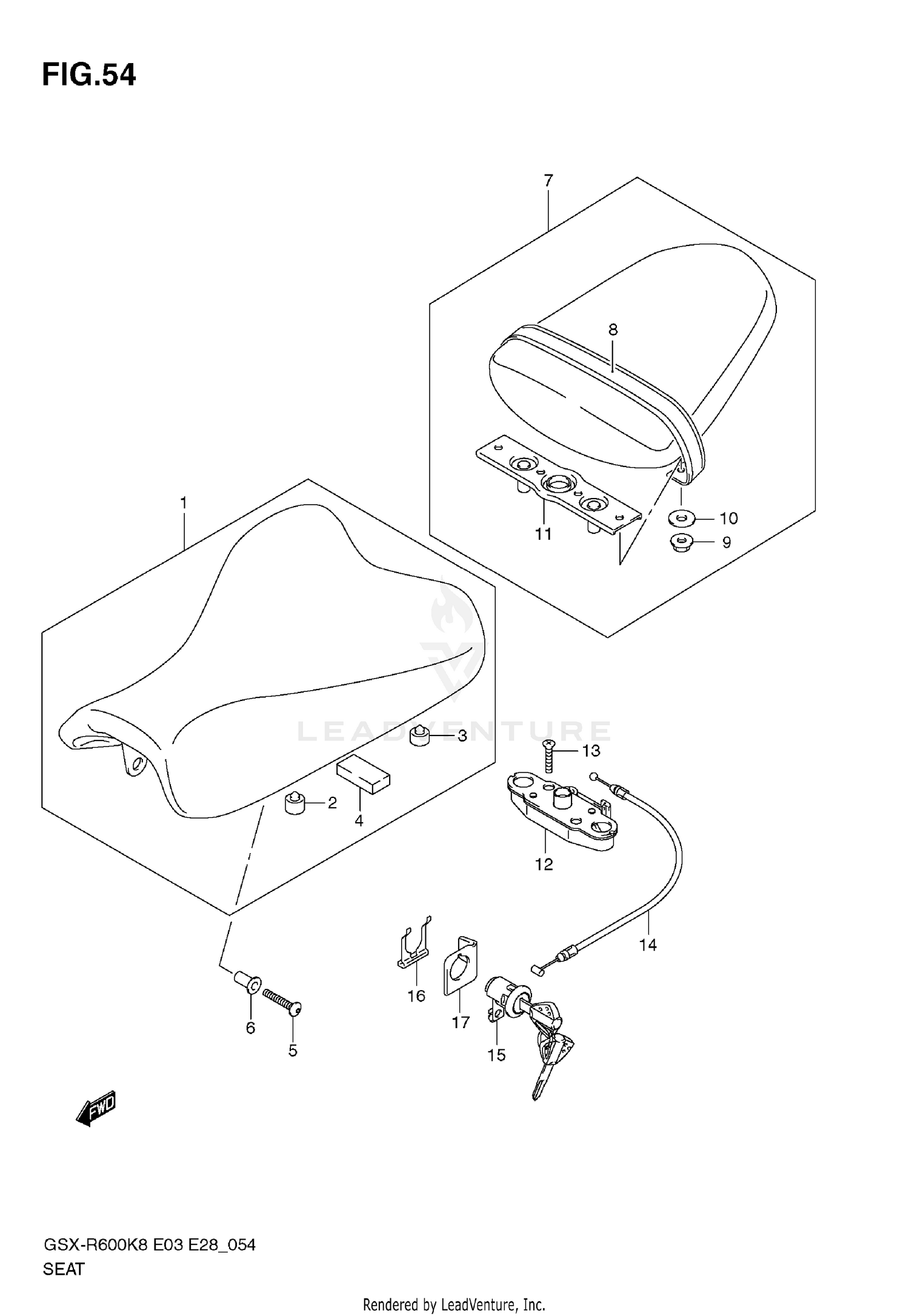

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY
45100-37H00-6BY
Superseded by 45100-37H01-6BY
|
$151.72 | ||
|
Available to order. Add to View Price |
|||
|
#1
SEAT ASSY (BLUE)
45100-37H00-V45
|
$168.08 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION, FRONT
09321-10039
|
$6.83 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION
09321-10011
|
$3.46 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION
45149-37H00
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SEAT
09139-06065-XC0
|
$3.72 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SEAT
09180-06320
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT ASSY,PILLI
45300-37H00-6BY
Superseded by 45300-37H01-6BY
|
$273.78 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT ASSY,PILLI
45300-37H00-V45
Superseded by 45300-37H01-V45
|
$378.74 | ||
|
Unavailable |
|||
|
#8
BAND ASSY, SEAT
45180-37H00-6BY
|
$42.82 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND ASSY, SEAT
45180-37H00-V45
|
$31.17 | ||
|
Unavailable |
|||
|
#9
NUT
08319-3106A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER (6.5X20X1.6)
09160-06088
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
STRIKER,SEAT LO
45290-18G00
Superseded by 45290-18G01
|
$45.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, SEAT SUPPORT
45220-20A01
Superseded by 45220-47H00
|
$155.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, REAR
02122-0630A
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
CABLE, SEAT LOCK
45280-13A01
|
$15.26 | ||
|
Available to order. Add to View Price |
|||
|
#15
LOCK SET, SEAT
95700-14810
|
$137.84 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, SEAT LOCK ASSY
45289-11F00
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUIDE, SEAT LOCK CABLE
45288-14F00
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
