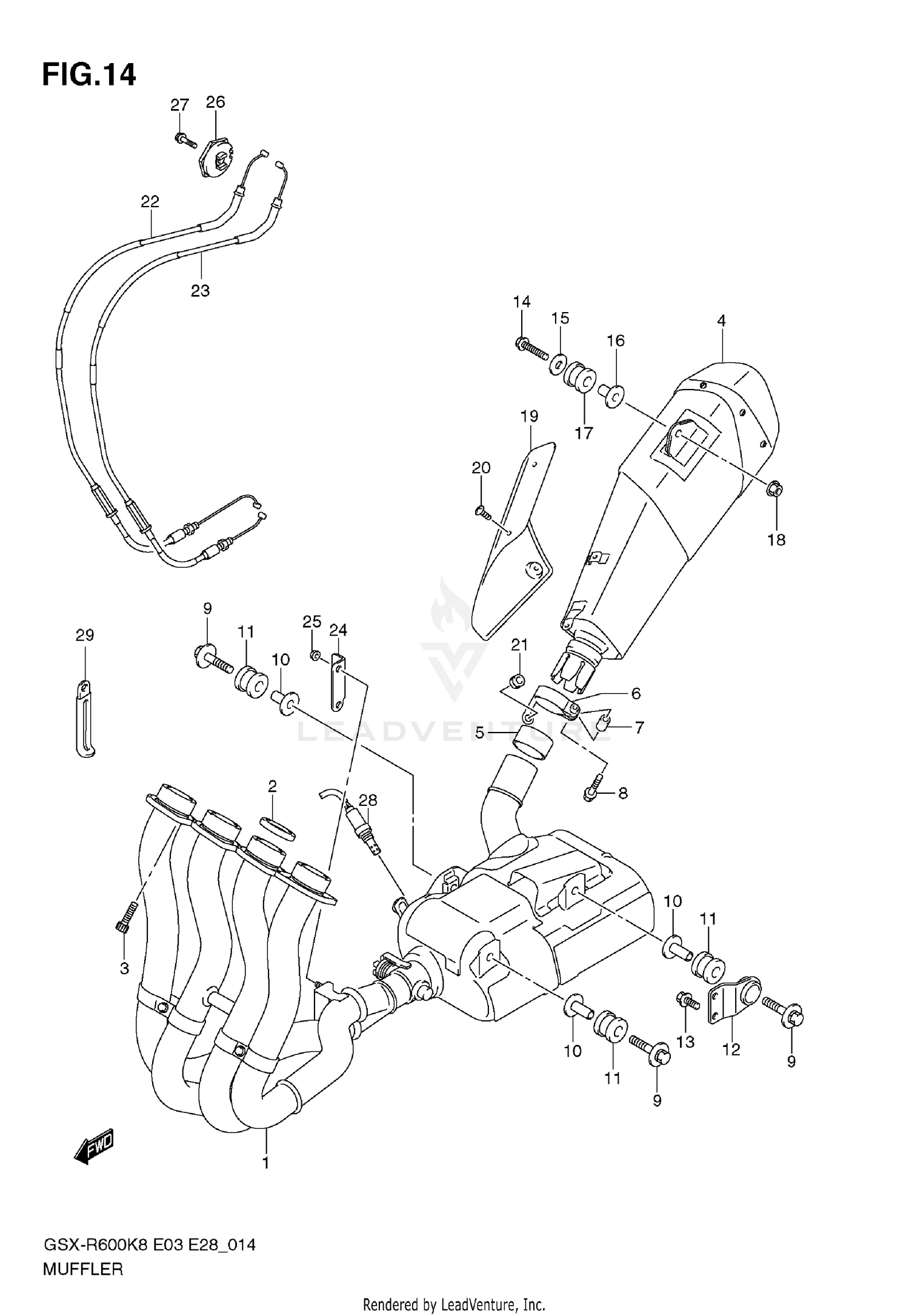

Muffler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST
14100-37H00
|
$2,314.43 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET,EXHAUST
14181-46E00
Superseded by 14181-46E10
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
07130-0825A
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#4
BODY, MUFFLER
14310-37H00-H01
|
$2,418.75 | ||
|
Available to order. Add to View Price |
|||
|
#5
CONNECTOR
14771-42F10
|
$29.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
14459-42F60
|
$28.26 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
14458-06H00
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
09103-08392
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
09118-08152-A05
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER, MUFFLER SUPPORT
09180-08152-A05
Superseded by 09180-08152
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION
09320-12077
|
$15.06 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET
14770-01H00
|
$28.59 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
07120-0816A
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
09103-08358
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
09160-08142
|
$3.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
SPACER
09180-08152
|
$7.31 | ||
|
Unavailable |
|||
|
#17
CUSHION
09320-12048
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08361-2508A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, MUFFLER
14780-37H00
|
$244.43 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
09139-06078
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#21
.CUSHION (8.4X18X6)
09320-08066
|
$10.34 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
CABLE, EXH VALVE NO.1
11276-37H00
|
$88.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
CABLE, EXH VALVE NO.2
11277-37H00
|
$88.98 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET
14250-01H00
|
$12.84 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
PULLEY, CONTROLLER
11269-18G00
Superseded by 11269-18G01
|
$32.50 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
07120-0516A
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
|
#28
SENSOR, OXYGEN
18213-18H00
Superseded by 18213-18H10
|
$432.41 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
