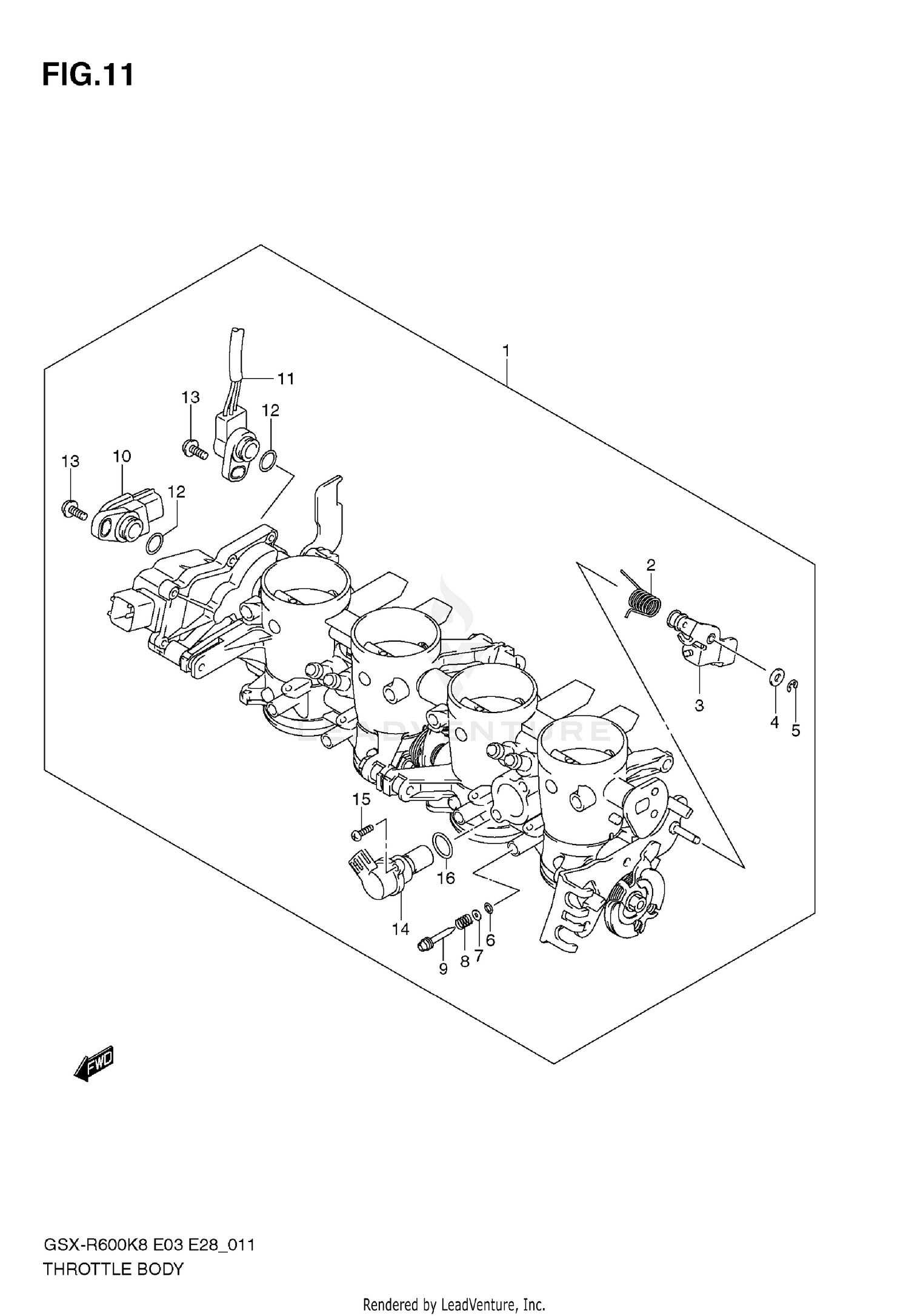

Throttle Body Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY,THROT
13406-37H00
Superseded by 13406-37H02
|
$2,480.65 | ||
|
Unavailable |
|||
|
#1
BODY ASSY,THROT
13406-37H10
Superseded by 13406-37H11
|
$2,100.03 | ||
|
Available to order. Add to View Price |
|||
|
#2
TORSION SPRING
13426-29G00
|
$6.85 | ||
|
Available to order. Add to View Price |
|||
|
#3
LEVER ASSY
13420-37H00
|
$66.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
PACKING
13427-29G00
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#5
E RING
13424-29G00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#6
.O-RING
13295-29900
Superseded by 13295-29901
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
.WASHER
13606-47A00
|
$3.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
.SPRING,THROTTLE SCREW
13268-48700
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
.SCREW
13269-33E00
|
$14.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
SENSOR ASSY
13580-29G00
|
$153.72 | ||
|
Available to order. Add to View Price |
|||
|
#11
SENSOR ASSY,THROTTLE NO.1
13580-40F30
Superseded by 13580-40F31
|
$277.60 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
.O-RING
13575-29G00
Superseded by 13575-29G01
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
13605-02F00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE,ISC
18117-37H00
Superseded by 18117-37H01
|
$432.04 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
13605-37H00
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#16
.O RING
13679-37H00
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
