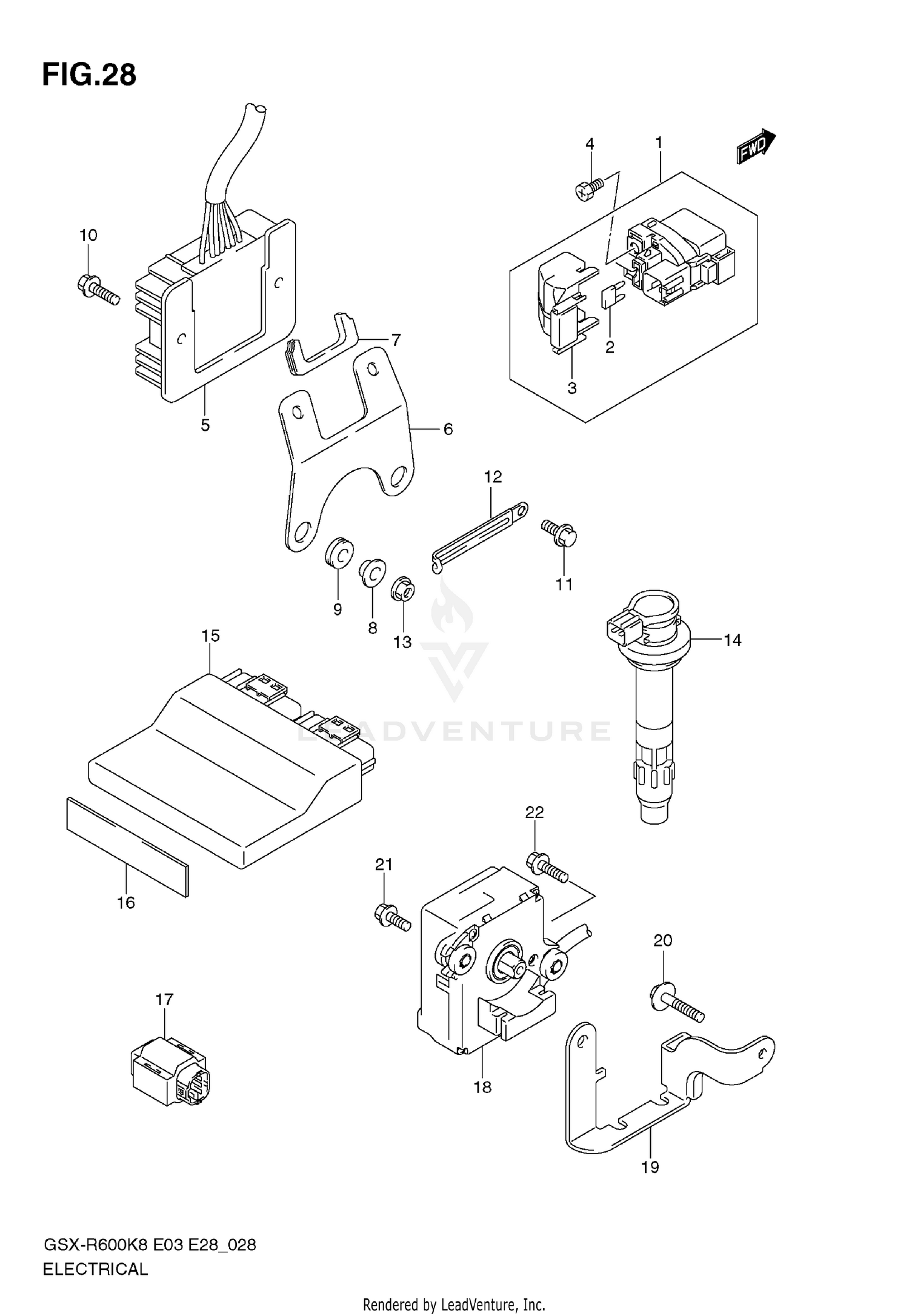

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY, STARTING MOTOR
31800-41G00
Superseded by 31800-41G10
|
$118.96 | ||
|
Available to order. Add to View Price |
|||
|
#2
FUSE (30A)
09481-30501
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, STARTER
31861-38G00
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-18H00
Superseded by 32800-47H00
|
$338.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, RECT FTG
32831-37H00
|
$14.00 | ||
|
Available to order. Add to View Price |
|||
|
#7
MOLD, RECT BRKT
32835-37H00
|
$8.32 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
09180-06325
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
.CUSHION (8.4X18X6)
09320-08066
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, RECTIFIER
01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, BRKT
01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP,PTT SW LE
09403-11315
Superseded by 09403-11328
|
$4.66 | ||
|
Unavailable |
|||
|
#13
NUT, RECTIFIER
08316-1006A
|
$2.72 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
COIL ASSY,IGNITION
33410-37H00
|
$195.83 | ||
|
Available to order. Add to View Price |
|||
|
#15
CONTROL UNIT, FI
32920-37H10
|
$2,073.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
CONTROL UNIT, FI
32920-37H20
|
$1,425.00 | ||
|
Available to order. Add to View Price |
|||
|
#16
PROTECTOR (80X80X2)
33652-38A10
Superseded by 33652-07D00
|
$7.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
SENSOR ASSY, FUEL CUT
33960-27G00
|
$124.02 | ||
|
Available to order. Add to View Price |
|||
|
#18
ACTUATOR ASSY
33970-41G00
Superseded by 33970-41G02
|
$638.60 | ||
|
Unavailable |
|||
|
#19
HOLDER, ACTR
33971-37H00
|
$17.65 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, ACTR (6X30)
09116-06103
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, ACTR HOLDER
01550-0616A
|
$2.45 | ||
|
Unavailable |
|||
|
#22
BOLT, ACTR (6X25)
09116-06202
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
