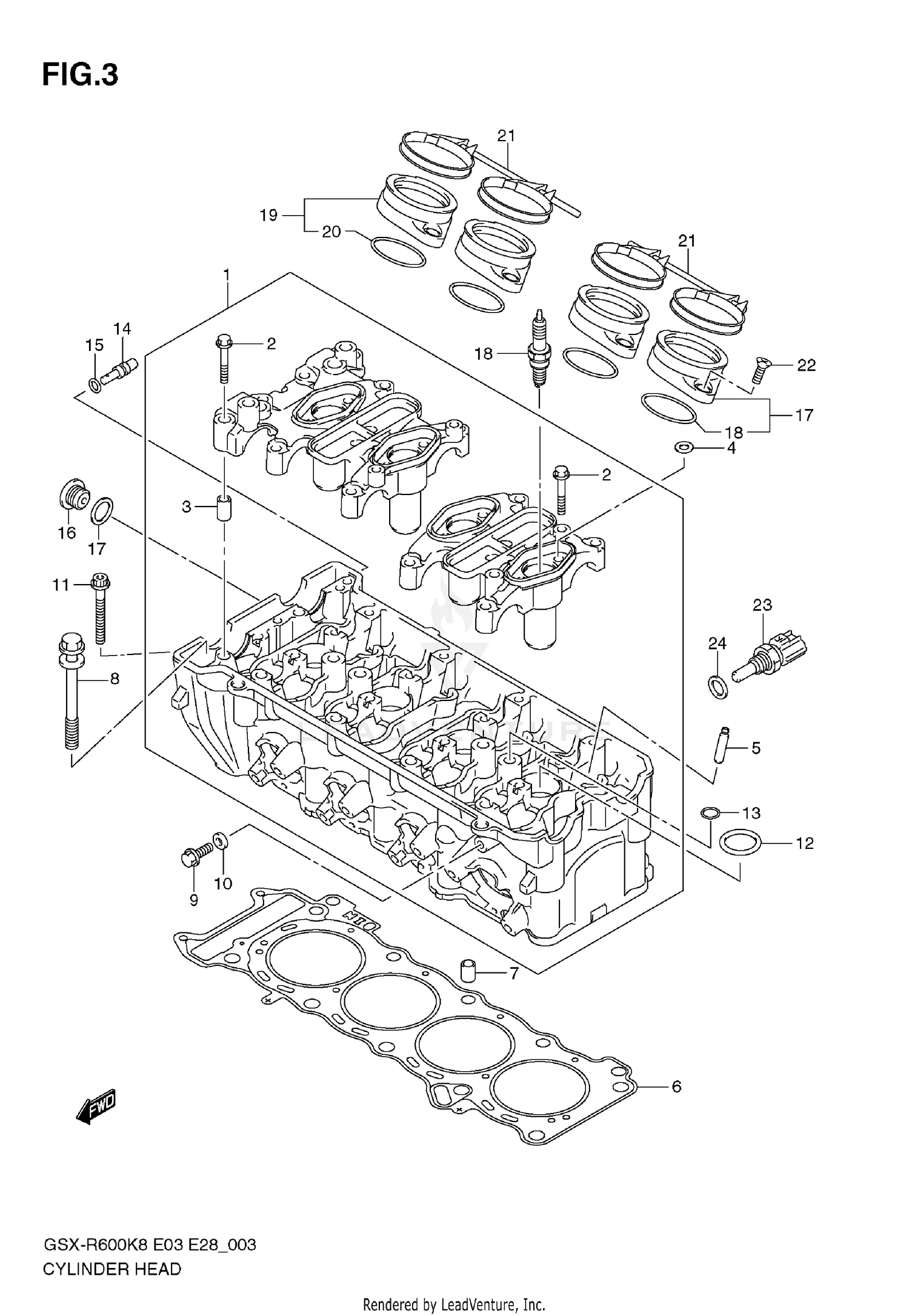

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY,CYLINDER
11100-37H00
|
$2,769.05 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
09103-06266
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN
09206-08007
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
.GASKET (6.2X13X1.2)
09168-06018
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, VALVE (OS 0.5)
11115-29G70
|
$43.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD
11141-37H00
|
$99.66 | ||
|
Available to order. Add to View Price |
|||
|
#7
.PIN
04211-11169
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (10X95)
11117-29G00
|
$11.54 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, OIL GALLERY
09103-06222
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT, CYLINDER HEAD
07120-0650A
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING,SPARK PLUG PIPE
11179-81402
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#13
O RING (D:2.4,ID:10.8)
09280-11001
|
$2.48 | ||
|
Available to order. Add to View Price |
|||
|
#14
JET (#80)
09493-80005
|
$17.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
O RING (D:1.2,ID:4)
09280-04004
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG
09248-16012
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET
09168-16009
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPARK PLUG (NGK,CR9EIA-9)
09482-00558
|
$15.01 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPARK PLUG (DENSO,IU27D)
09482-00557
|
$21.29 | ||
|
Unavailable |
|||
|
#18
SPARK PLUG (NGK,CR8EIA-9)
09482-00556
|
$13.41 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPARK PLUG (NGK,CR10EIA-9)
09482-00560
|
$13.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPARK PLUG (DENSO,IU24D)
09482-00555
|
$23.03 | ||
|
Unavailable |
|||
|
#18
SPARK PLUG (DENSO,IU31D)
09482-00559
|
$21.92 | ||
|
Unavailable |
|||
|
#19
PIPE ASSY,INTAK
13101-37H00
Superseded by 13101-37H01
|
$58.28 | ||
|
Available to order. Add to View Price |
|||
|
#20
.O RING (D:2.4,ID:41.7)
09280-42003
|
$10.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP, INTAKE PIPE
13170-02H02
|
$35.64 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW
09120-06007
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
SENSOR, WATER TEMPERATURE
13650-49X00
|
$116.42 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET
09168-12017
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
