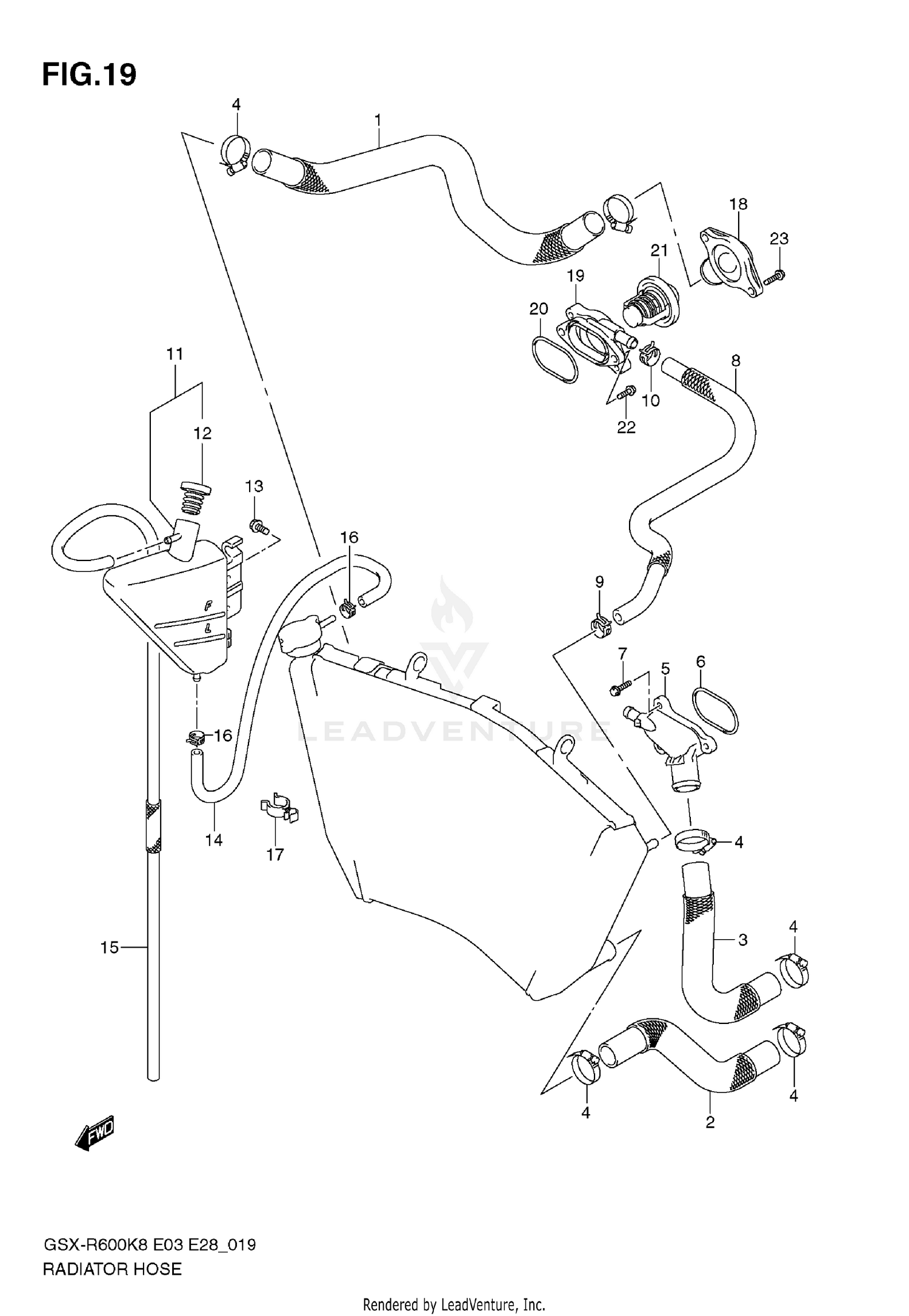

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE, RADIATOR INLET
17851-01H00
|
$60.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, RADIATOR OUTLET
17852-01H00
|
$51.14 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOSE, CYLINDER INLET
17853-01H00
|
$45.26 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLAMP
09402-38512
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CONNECTOR,CYL WATER INLET
17861-01H00
|
$76.43 | ||
|
Available to order. Add to View Price |
|||
|
#6
O RING,CYL WATER CONNECTOR
17863-01H00
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01547-0620A
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE, WATER BYPASS
17854-01H10
|
$43.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP
09401-12409
Superseded by 09401-12414
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
09401-14403
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
TANK ASSY, RESERVOIR
17910-37H00
|
$79.48 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CAP
17931-02FA0
|
$7.18 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
09111-06085
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE
17981-18G00
|
$14.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE,RESERVOIR TANK OVER FLOW
17982-37H00
|
$20.07 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
09401-08411
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#18
COVER,THERMOSTAT
17661-37H00
|
$41.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
CONNECTOR,THERMOSTAT
17662-01H00
|
$105.68 | ||
|
Available to order. Add to View Price |
|||
|
#20
O RING,THERMOSTAT CONNECTOR
17663-01H00
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
THERMOSTAT,WTR (82<-C)
17670-76G00
|
$47.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#22
BOLT
01547-0620A
|
$2.54 | ||
|
Unavailable |
|||
|
#23
BOLT
01550-0625A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
