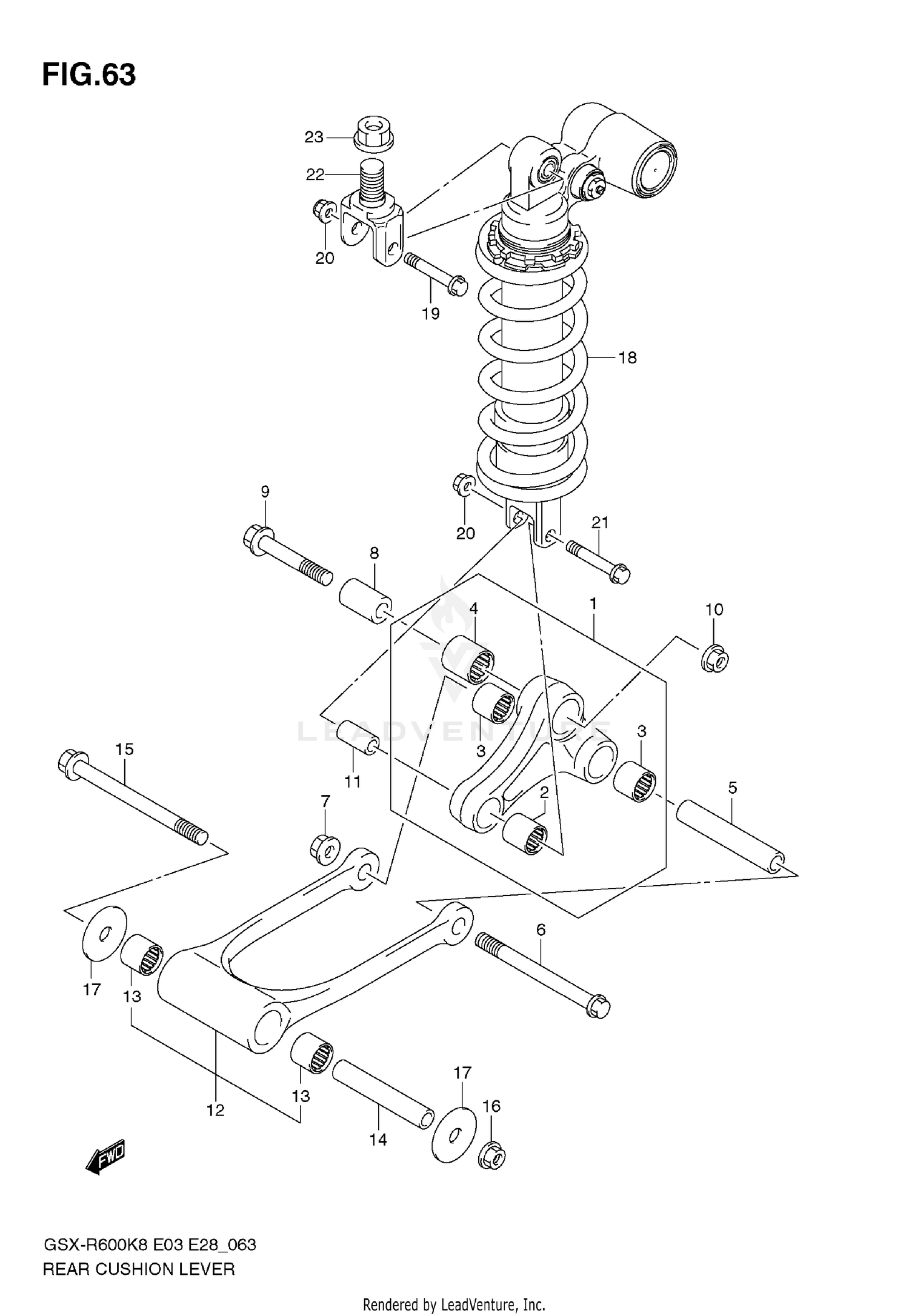

Rear Cushion Lever Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#7
NUT
09159-12056
|
$9.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER,RR CUSHION LEVER,FR (1
62317-27C10
|
$22.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, UPPER
62658-35F00
|
$45.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
09159-12056
|
$9.25 | ||
|
Unavailable |
|||
|
#11
SPACER, FRONT
62684-40A10
|
$16.14 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD SET,RR CUSH
62601-01870
Superseded by 62601-01871
|
$305.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
.BEARING (17X24X25)
09263-17037
Superseded by 09263-17053
|
$27.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER, ROD
62626-21H00
|
$35.81 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, ROD
62621-21H00
|
$27.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
09159-12056
|
$9.25 | ||
|
Unavailable |
|||
|
#17
WASHER
09160-12037
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#18
ABSORBER ASSY, REAR SHOCK
62100-37H10-163
|
$1,340.64 | ||
|
Unavailable |
|||
|
#18
ABSORBER ASSY, REAR SHOCK
62100-37H00-163
|
|||
|
Unavailable |
|||
|
#19
BOLT, UPPER (10X55)
09103-10143
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT
09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, LOWER (10X55)
09103-10143
|
$4.92 | ||
|
Unavailable |
|||
|
#22
BRACKET, ABSORBER
62993-35F00
|
$111.77 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
09159-20006
|
$34.67 | ||
|
Available to order. Add to View Price |
|||
|
#1
LEVER SET,RR CU
62601-01850
Superseded by 62601-01853
|
$442.18 | ||
|
Available to order. Add to View Price |
|||
|
#2
.BEARING (17X24X26)
09263-17034
Superseded by 09263-17057
|
$26.66 | ||
|
Available to order. Add to View Price |
|||
|
#3
.BEARING (17X24X25)
09263-17037
Superseded by 09263-17053
|
$27.30 | ||
|
Unavailable |
|||
|
#4
.BEARING
09263-20074
Superseded by 09263-20116
|
$39.26 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER,RR CUSHION ROD
62646-08G00
|
$41.52 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, LOWER
62621-42E20
|
$22.18 | ||
|
Available to order. Add to View Price |
|||
