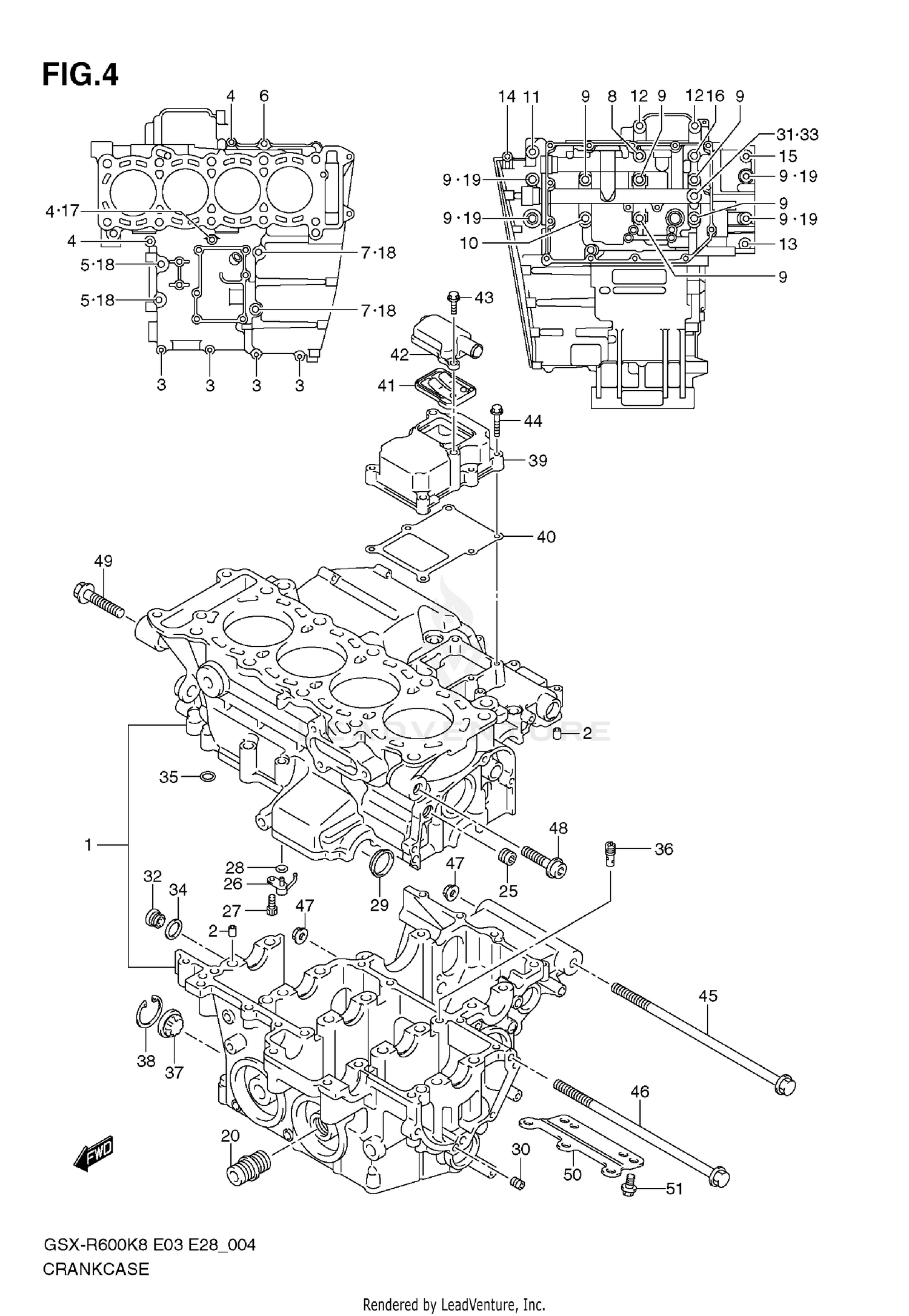

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE SET
11300-37870
Superseded by 11302-14811
|
$2,903.77 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN,CRANKCASE
11319-33E50
|
$7.07 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
01547-0635A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01547-0665A
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01550-0850A
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
01550-0860A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01550-0875A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT (8X105)
09103-08097
|
$4.41 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (9X95)
09103-09012
|
$11.04 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (9X80)
09103-09014
|
$10.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (8X55)
09106-08184
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT (8X55)
09103-08170
Superseded by 09103-08339
|
$4.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01547-0630A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01547-0645A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
01550-0865A
|
$4.48 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
01550-0885A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
GASKET (8.2X14X1)
09168-08016
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET (10.2X20X2.3)
09168-10031
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#20
UNION,OIL STAND
16591-06B01
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
|
#21
.O RING (D:1.9,ID:99.5)
09280-00043
|
$40.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, DRIVE SHAFT BEARING COVER (6X20)
09139-06151
|
$4.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING, THRUST RH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
BEARING, THRUST LH (RED)
12228-17E00-0A0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, THRUST LH (BLACK)
12228-17E00-0B0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, THRUST LH (BLUE)
12228-17E00-0C0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING, THRUST LH (GREEN)
12228-17E00-0D0
|
$12.63 | ||
|
Unavailable |
|||
|
#24
.BEARING, CRANK THRUST
12228-17E00-0E0
|
$12.87 | ||
|
Available to order. Add to View Price |
|||
|
#24
.BEARING, CRANK THRUST
12228-17E00-0F0
|
$13.11 | ||
|
Available to order. Add to View Price |
|||
|
#25
JET,OIL GALL (3.6)
11329-02F00
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#26
JET,PISTON COOLING
11390-35F00
|
$32.26 | ||
|
Available to order. Add to View Price |
|||
|
#27
O RING (D:1.2,ID:4)
09280-04004
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, PISTON COOLING
09106-06075
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#29
PLUG, BALANCER SHAFT HOLE
09241-26004
|
$10.34 | ||
|
Available to order. Add to View Price |
|||
|
#30
PLUG
09246-05006
Superseded by 09246-04009
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLUG (L:12)
09248-12004
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUG, OIL GALLERY
09248-16013
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET, OIL GALLERY
09168-12002
|
$1.98 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#34
GASKET, OIL GALLERY
09168-16002
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#35
O RING (D:1.9,ID:7.8)
09280-08012
|
$4.62 | ||
|
Available to order. Add to View Price |
|||
|
#36
JET,140 (#140)
09493-28012
|
$18.34 | ||
|
Available to order. Add to View Price |
|||
|
#37
.LENS, OIL LEVEL CHECK
11971-33210
|
$23.50 | ||
|
Available to order. Add to View Price |
|||
|
#38
.CIRCLIP
08331-4130A
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER,BREATHER
11371-01H00
|
$113.87 | ||
|
Available to order. Add to View Price |
|||
|
#40
GASKET, BREATHER COVER
11484-01H00
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#41
VALVE ASSY, BREATHER REED
13150-01H00
Superseded by 13150-01H01
|
$78.90 | ||
|
Available to order. Add to View Price |
|||
|
#42
COVER, VALVE
11372-01H00
|
$51.25 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT
01547-0616A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOLT
01547-0630A
|
$2.88 | ||
|
Unavailable |
|||
|
#45
BOLT (10X215)
09103-10041
Superseded by 09103-10041-A05
|
$13.04 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT (L:205)
09103-10145
|
$21.86 | ||
|
Available to order. Add to View Price |
|||
|
#47
NUT
09159-10115
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, ENG MTG (10X45)
09106-10069
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT, ENG MTG (10X55)
09106-10070
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#50
PLATE,CRANKCASE LOWER
11322-01H00
|
$14.47 | ||
|
Available to order. Add to View Price |
|||
|
#51
BOLT
09103-06188
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
