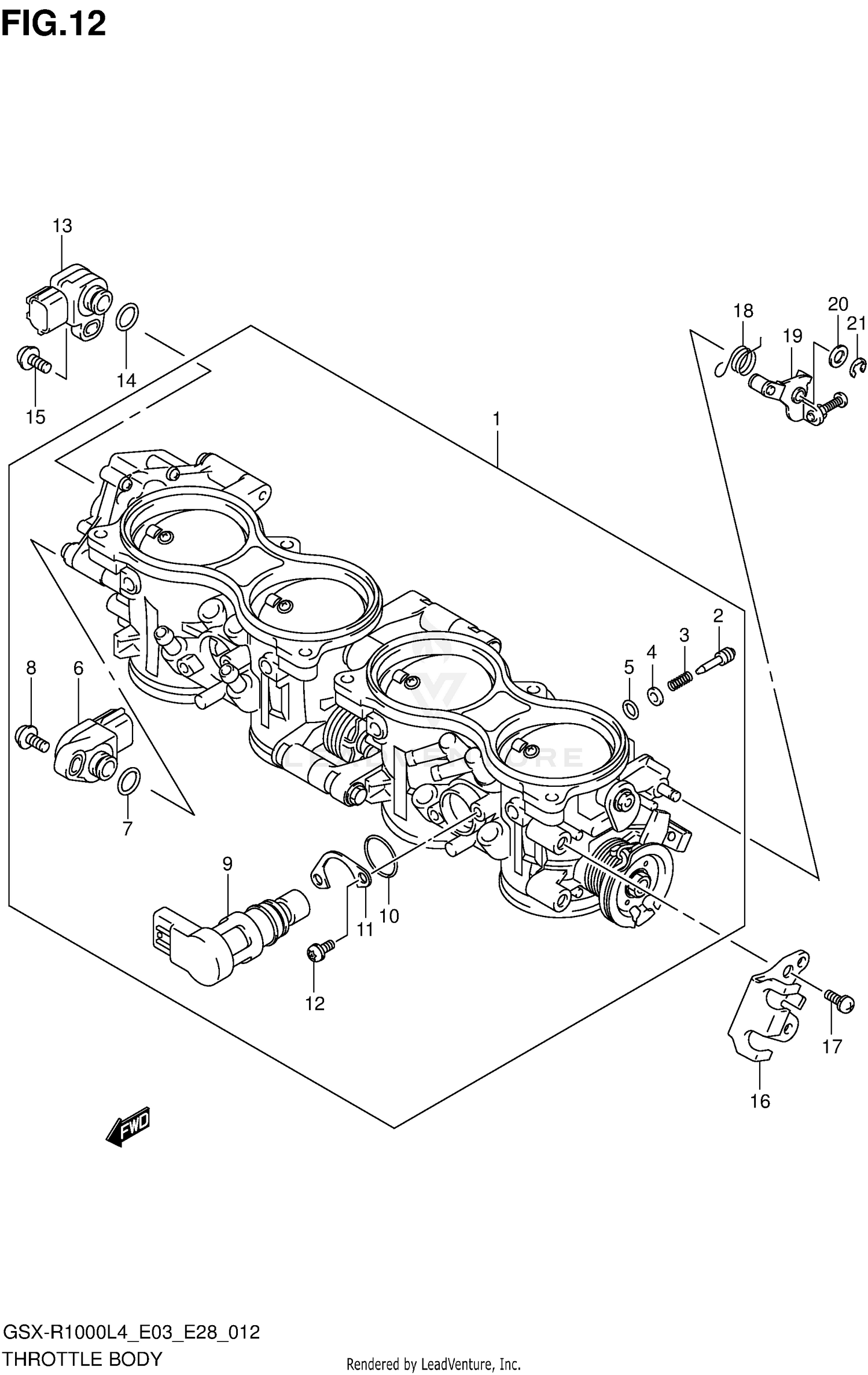

Throttle Body (gsx-r1000l4 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THROTTLE BODY
13406-47H20
|
$2,950.89 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW, AIR ADJUST
13269-18G00
|
$13.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING
13271-43E00
|
$3.03 | ||
|
Unavailable |
|||
|
#4
WASHER
13291-26E00
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
O RING
13295-26E00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
.SENSOR ASSY,THROTTLE MAIN
13580-18G00
|
$269.43 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING
13575-40F00
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
13605-40F00
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
.VALVE ASSY,ISC
18117-15H11
Superseded by 18117-15H12
|
$403.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING
18119-05H00
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE
13428-15H00
|
$30.36 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
13605-15H00
|
$8.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
SENSOR ASSY, SUB
13580-47H00
|
$288.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
O RING
13575-40F00
|
$5.42 | ||
|
Unavailable |
|||
|
#15
SCREW
13605-40F00
|
$4.93 | ||
|
Unavailable |
|||
|
#16
PLATE, STAY
13565-21H00
|
$52.26 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
13601-21H00
|
$2.74 | ||
|
Unavailable |
|||
|
#18
SPRING
13426-21H00
|
$4.06 | ||
|
Unavailable |
|||
|
#19
LEVER, LINK
13420-47H00
|
$103.36 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
13427-35F10
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
E CLIP
13424-35F10
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
