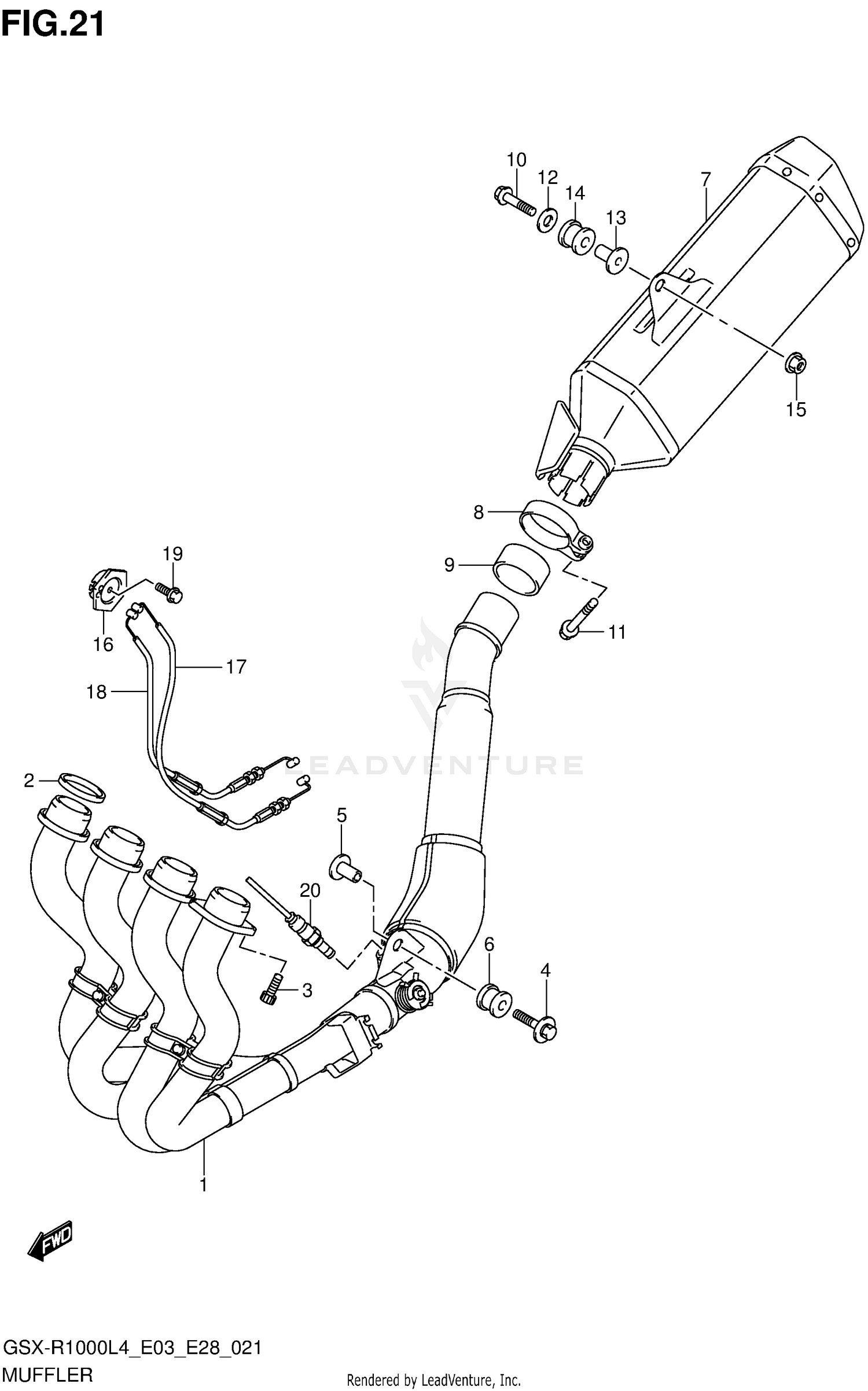

Muffler (gsx-r1000l4 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST
14100-47H10
|
$2,599.41 | ||
|
Available to order. Add to View Price |
|||
|
#2
.GASKET,EXHAUST PIPE
14181-22D01
|
$13.05 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
07130-0825A
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (8X45)
09118-08152-A05
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER (8.6X12X24.2)
09180-08152
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUSHION
09320-12077
|
$15.06 | ||
|
Available to order. Add to View Price |
|||
|
#7
BODY, MUFFLER
14310-47H40-H01
|
$2,904.90 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP,MUFFLER CONNECTOR
14459-47H00
|
$27.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONNECTOR, MUFFLER
14771-24F01
|
$34.08 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (8X45)
09103-08358
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT (8X40)
09103-08392
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER (8.5X28X1.5)
09160-08142
|
$3.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
SPACER (8.6X12X24.2)
09180-08152
|
$7.31 | ||
|
Unavailable |
|||
|
#14
CUSHION
09320-12048
|
$6.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
08361-2508A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
PULLEY, CONTROLLER
11269-18G01
|
$32.50 | ||
|
Available to order. Add to View Price |
|||
|
#17
CABLE, EXH VALVE NO.1
11276-47H10
|
$78.50 | ||
|
Available to order. Add to View Price |
|||
|
#18
CABLE, EXH VALVE NO.2
11277-47H10
|
$78.50 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
01547-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#20
SENSOR, OXYGEN
18213-18H10
|
$432.41 | ||
|
Available to order. Add to View Price |
|||
